| Place of Origin: | Shanghai China (Mainland) |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | TOBOT38 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pieces/month |
| Product Name: | ASME Ss316l Solid Metal Ring Joint Gasket Price -150°C--800°C | Color: | Silvery |
|---|---|---|---|
| Size: | Standard Size | Material: | Metal |
| Certificate: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | Application: | Pipe Flange,pressure Vessel,submarine,high-speed Joint Surface,valve |
| Standard: | GB,ASME,ANSI,DIN,JIS | Temperature: | -150°C--800°C |
| Shape: | Ring Gasket | ||
| Highlight: | Stainless Steel Gasket,Flat Ring Gasket |
||
Product Description
ASME ss316l solid metal ring joint gasket price -150°C--800°C
• Place of Origin: Shanghai, China (Mainland)
• Brand Name: TOBO Group
• Model Number: 309 stainless steel gasket
• Material: Metal
• Shape: 309 stainless steel gasket
• Standard or Nonstandard: Standard
Packaging Details: wooden case
Delivery Detail: 10-100 days depending on the quantity
Specifications
METAL JACKETED GASKET
Metal Jacketed Gasket has characteristic of metallic and nonmetal, with excellent sealing performance, especially made of each kind of complex shape. Double Jacketed Gasket with greatness diameter not easy to fall apart and not easy to damnify, the pressure is <=6.4Mpa
Metal jacketed gaskets are normally supplied with a non-asbestos, high temperature filler. The standard filler is normally sufficient for applications up to 900°F (482°C). Other soft fillers are available for higher temperatures or special applications. Standard metals used to make jacketed gaskets, regardless of the type, are aluminum, copper, the various brasses, soft steel, nickel, Monel®, Inconel®, and stainless steel types 304, 316, 321, 347, 410. The choice of metal used for the jacketed part of gasket would depend upon the service conditions being encountered.

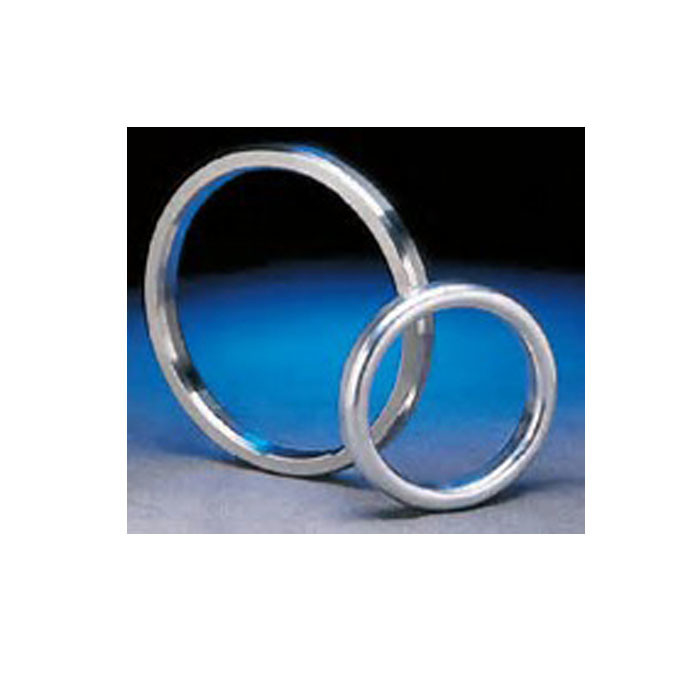

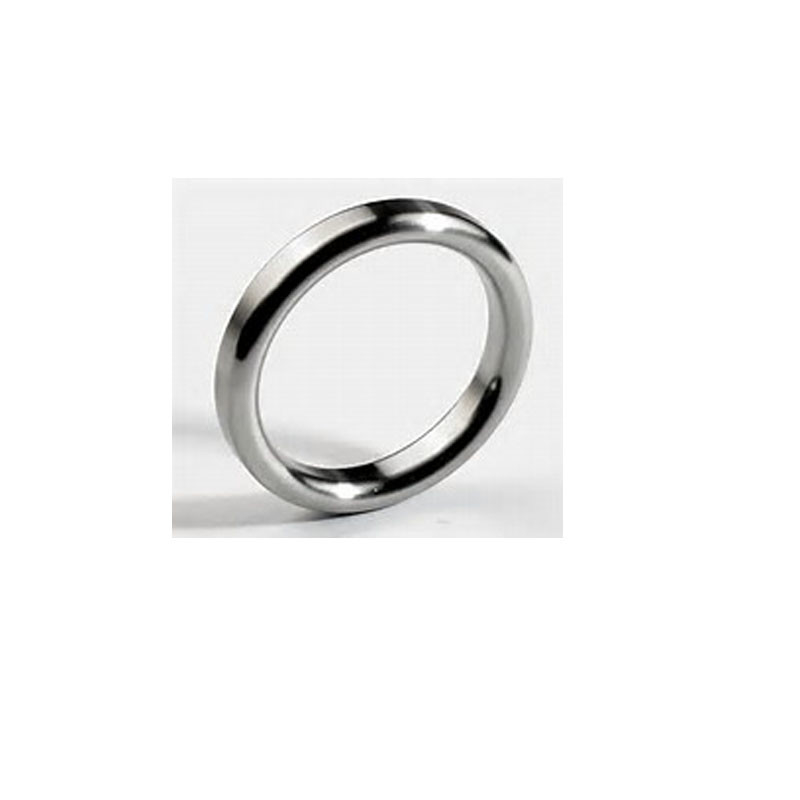

Metal ring gasket is sealed pressure pipe flange ,an applied to oil and gas pressure vessel, submarine, high-speed joint surface, high temperature and high pressure valve cover joint.There are a variety of materials and in a form suitable for the different design and operational requirements, completely compliance with ANSI B16.20. In the new flat type grooved flange, the common black iron, stainless steel elliptical(Oval) and the octagonal can be used interchangeably. the company can in the most short period of delivery.
Note: the metal ring material hardness selected should be lower than 15~20 HB flange, and the old product is not recommended for repeated use, because the material hardening and damage may occur and the flange or the sealing performance.
Hollow metal O - ring is made of high temperature resistant and no corrosion of stainless steel tube production. It could make holes in the inner or outer of the hollow metal o ring, when the pressure goes up,that self sealing function will work. The o ring with the small holes of the ring, especially the application of pressure over 70kgf/cm ², it can handle more pressure than the basic O type ring. The hollow metal ring based on customer needs, as PTFE plated or silver plating and surface.
|
Material
|
Max Hardness
HBS HRB |
Max Temperature
℃
|
Abbreviation
|
|
304
|
160 83
|
700
|
304
|
|---|---|---|---|
|
304L Stainless Steel
|
150 80
|
450
|
304L
|
|
316 Stainless Steel
|
160 83
|
700
|
316
|
|
316L Stainless Steel
|
150 80
|
450
|
316L
|
|
321 Stainless Steel
|
160 83
|
700
|
321
|
|
410 Stainless Steel
|
170 86
|
650
|
310
|
|
347 Stainless Steel
|
160 83
|
700
|
347
|
|
Carbon Steel
|
-40 -130
|
5401000
|
CRS
|
