| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | Carbon Steel |
| Minimum Order Quantity: | 300 Kilogram/Kilograms |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | Export standards or customer requirements |
| Delivery Time: | 7-30 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Product Name: | Carbon Steel Pipe Bending | Product Type: | Steel Pipe |
|---|---|---|---|
| Grade: | 200 Series &300 Series &400 Series | Shape: | Round |
| OD: | 168.3 - 3048 Mm | Surface: | Painted |
| Application: | Oil Pipe | Techinque: | Cold Drawn |
| Highlight: | API 5L Line Pipe,API Seamless Pipe |
||

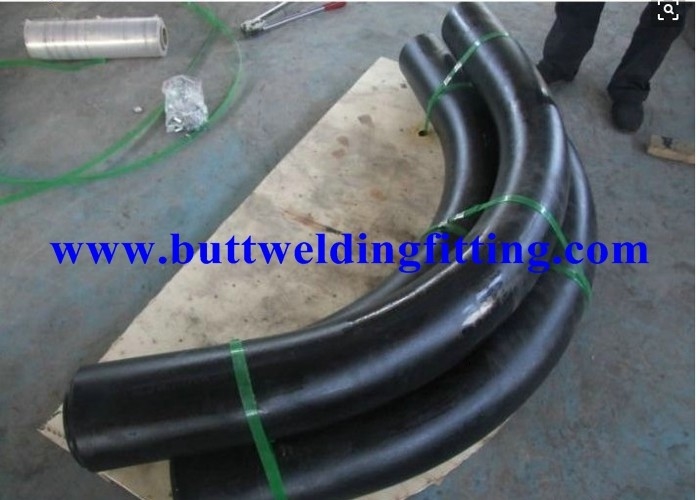

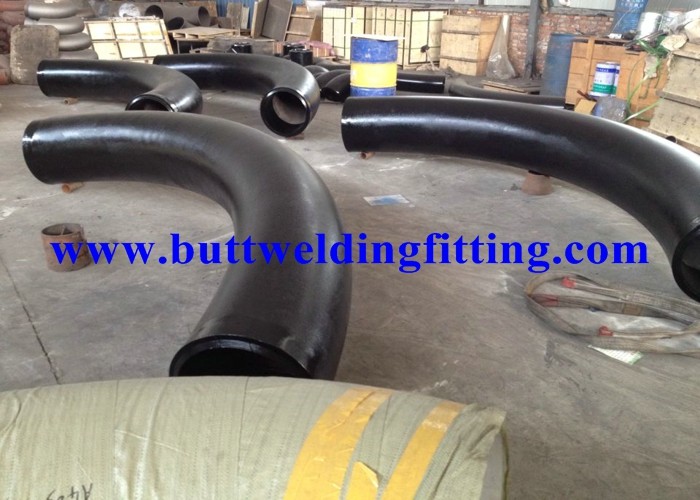

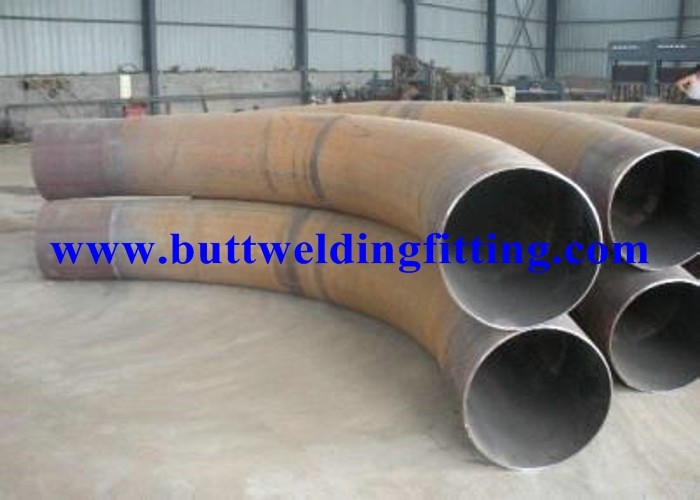

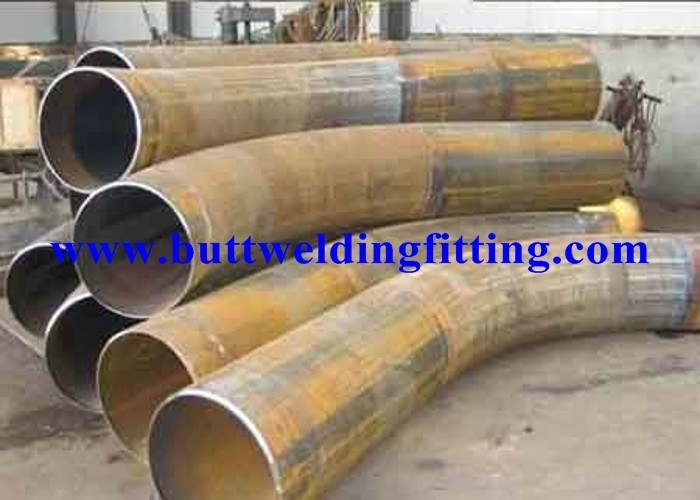

Carbon Steel API 5L X60 Pipe Bending Bending angle (θ): 30°, 45°, 90°, 180°
Material:
Technics:
Type:
Place of Origin:
Model Number:
Brand Name:
Connection:
Shape:
Head Code:
name:
keyword:
standard:
MOQ:
certificate:
application:
third party test:
quality guarantee period:
size:
pressure:
Packaging Details:
Anti Rust Oilor Hot-Dipped Galvanize seamless pipe bending
wooden case or according to customer's requirements
Delivery Detail:
Shipped in 20 days after payment
Anti Rust Oilor Hot-Dipped Galvanize seamless pipe bending
| material | steel /carbon steel |
| surface treatment | powder coated / polishing |
| color | gray or can be choiced |
| Welding method | CO2 welding |
| Energy source | The gas flame |
| sample time | 4-7 days |
| processing technology | pipe bending / welding / punching /stamping |
| certificate | ISO 9001-2008 TUV SGS |
| place of origin | Jiangsu China |
| mass production time | 10-15 days |
1.Products details
| Size: | Seamless elbow:1/2"~24" DN15~DN600,Welded Elbow: 4"~78" DN150~DN1900 |
| Radius: | L/R Elbow( 90deg & 45deg & 180deg.),S/R Elbow (90deg & 180deg.) |
| Wall Thickness: | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s |
| Manufacturing standard: | ANSI, JIS, DIN, EN, API 5L, etc. |
| Bending Angle: |
Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients. |
| End Bevel: | According to the bevel of welding pipe fittings construction |
| Surface treatment: | Shot blasted, rust-proof black oil. |
| Packing: | plywood case or pallet. |
Bending radius(R): R= 10D
Bending angle (θ): 30°, 45°, 90°, 180°
Straight Length (L): The length between two ends general from 300mm-1500mm
Outer diamete(D): D≤1800mm
Wall thickness(T): T≤120mm
Eend bevel: according to the bevel of welding pipe fittings construction
Quality accord to API 5L with certificate: EN10204(2004)/3.1 (including test results, chemical composition and mechanical properties of material) with Heat treatment report.
all the size can product according to the clients' requiry.
