| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | API5L |
| Minimum Order Quantity: | 300 Kilogram/Kilograms |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | Export standards or customer requirements |
| Delivery Time: | 7-30 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Product Name: | API5L High Pressure Pipe Bending | Product Type: | Steel Pipe |
|---|---|---|---|
| Grade: | 200 Series &300 Series &400 Series | Shape: | Round |
| OD: | 168.3 - 3048 Mm | Surface: | Painted |
| Application: | Oil Pipe | Techinque: | Cold Drawn |
| Highlight: | API 5L Line Pipe,API Seamless Pipe |
||

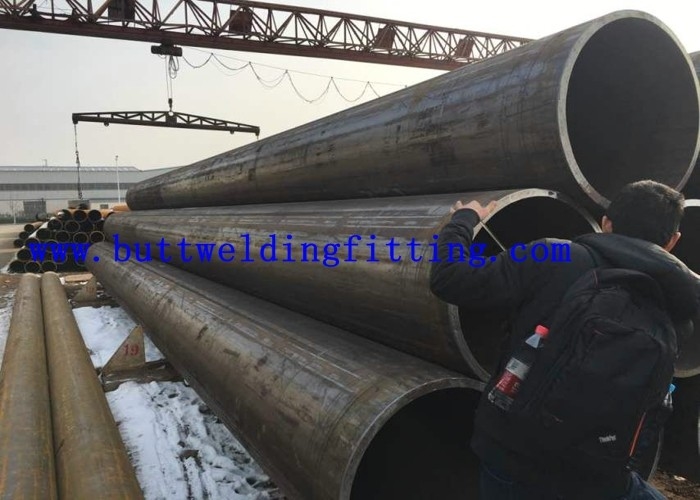

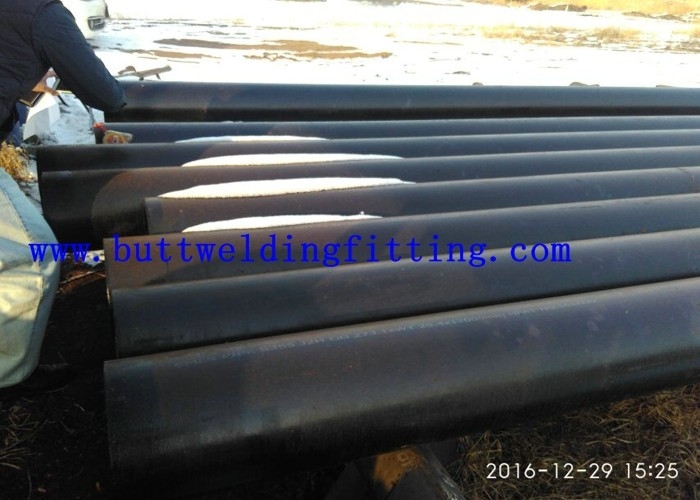

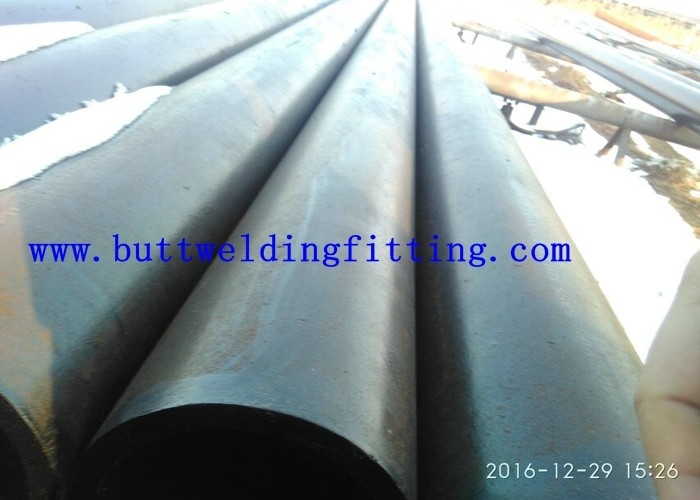

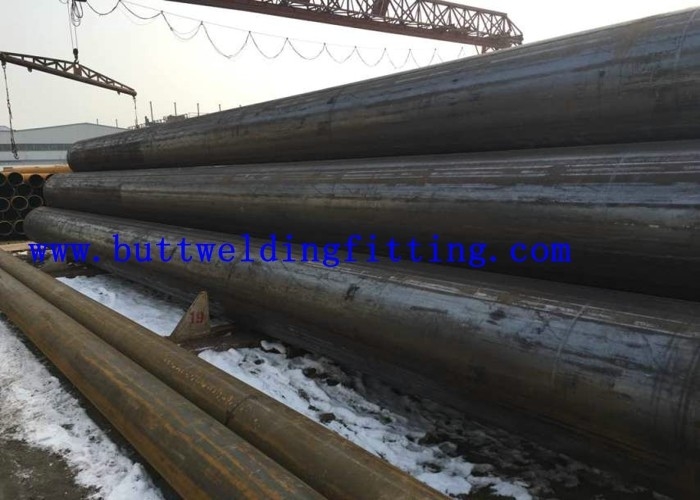

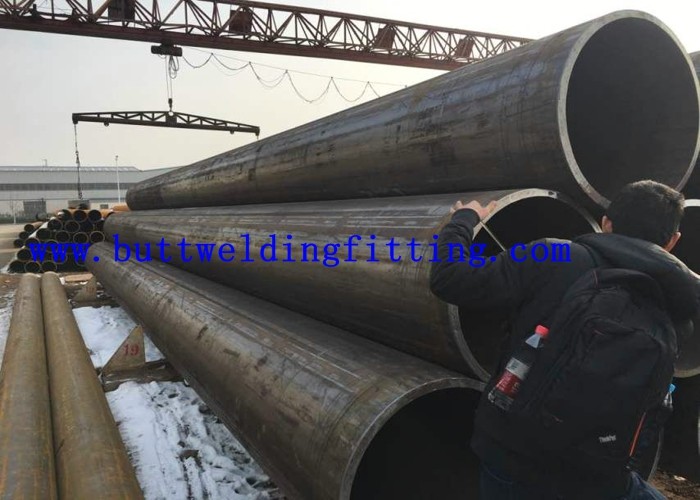

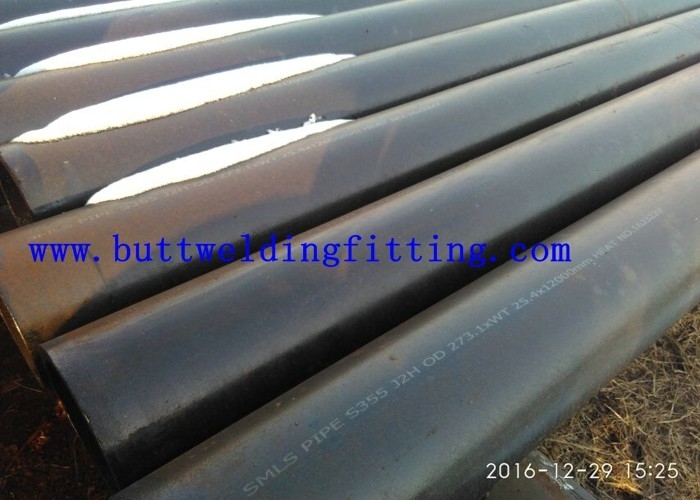

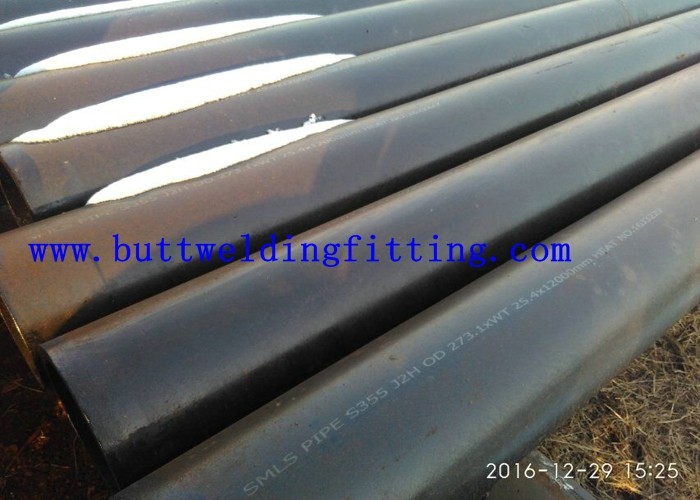

API5L High Pressure Pipe Bending Steel Pipe For Pipeline Transportation System
Specifications
| Size | 1/2" to 72" |
| Angle Range | 5 deg, 8deg, 10deg , 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg etc. |
| Radius | R = 2D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D, etc. |
| Wall thickness | SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS |
| Standard |
ASME B16.9, ASME B16.28, ASME B16.25, MSS SP75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Material | Carbon steel(ASTM A234WPB, A234WPC, A420WPL6, 20#,Q235, 10#,20#, A53, A106, 20G,16Mn, etc. ) |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, etc. ) | |
| Alloy steel(ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,16MnR, Cr5Mo, 12Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1,etc. ) | |
| Certificate | API, API5L, ISO 9001:2008, SGS, BV, CCIC etc. |
| Surface treatment | Sand blasting, Polished, black paint, anti corrosion, etc |
| Application |
Petroleum, chemical, machinery, electric power, medicine, food, shipbuilding, papermaking, construction, etc. |
| Packing | In wooden cases, pallets or as customer requirements |
|
Pattern
|
figure
|
|
| Nominal size | 1/2”-48” (DN15-DN1200) | |
| Wall thickness | 2~100mm | |
| Angle | Degree15,20,45,60,90,135,180 | |
| Type |
3, 4, 5, 6, 7, 8, 10, 45, 90 and 180D
|
|
A High pressure pipe bending is a pipe bend that used in high pressure application.
Bending radius(R): R=3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D, 12D
Bending angle (θ):15°, 30°, 45°, 60°, 90°, 135°, 180°
Straight Length (L): The length between two ends general from 300mm-1500mm
Outer diamete(D): D≤1800mm
Wall thickness(T): T≤120mm
Eend bevel: according to the bevel of welding pipe fittings construction
Usage: High pressure application
all the size can product according to the clients' requiry.
Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Pressure: SCH5 to SCH160
Standard: ANSI B16.9/B16.28 and MSS SP-43/SP-75
