| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | 201,202,301, 321, 304, 304L, 316, 316L, 409, |
| Minimum Order Quantity: | 0.5-1 tons |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | According to the qty |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 6000TONS/MONTH |
| Standard:: | ASTM A213, ASTM A312, ASTM A269, ASTM A789, JIS G3448, JIS G3456, JIS G3459, JIS G3463, DIN 10216, D | Color: | White Silver Gold |
|---|---|---|---|
| Types:: | Stainless Steel Welded Pipe / Tube | Material Grade: | 201,202,301, 321, 304, 304L, 316, 316L, 409, Etc |
| Outer Diameter: | 1.5mm-101.6mm | ||
| Highlight: | SS Welded Tube,Welded Stainless Steel Tubing |
||
Thin Wall TIG Welded Stainless Steel Pipe For Handrail 201 304 Grade
Quick Detail:
The welded stainless steel pipe is made from stainless steel by electric welding or sheet metal strips by means of forming and welding. Electrically welded tube is made of thermally without subsequent processing and hot-reducing.
Name | Stainless steel welded pipe/ tube | |||||
Standard | ASTM A554, A312, A249, A269 and A270,A688 | |||||
Material Grade | 201,202,301,304,316,430,304L,316L | |||||
Size Range | 20x10mm--100x50mm,10x10mm-100x100mm, 9.53-101.6mm, we can also accept sizes above 101.6mm | |||||
Thickness | 0.3mm - 3.0mm | |||||
Length | 6m or as customers' request | |||||
| a) Outer Diameter: +/- 0.2mm | |||||
b) Thickness: +/- 0.02mm | ||||||
c) Length: +/- 5mm | ||||||
Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish) | |||||
Application | Window,Door,Handrail,Curtain rail,Towel rail,Flagpole,Lamp pole,Sanitary Instrument,Billboard,Decoration,Upholstery, | |||||

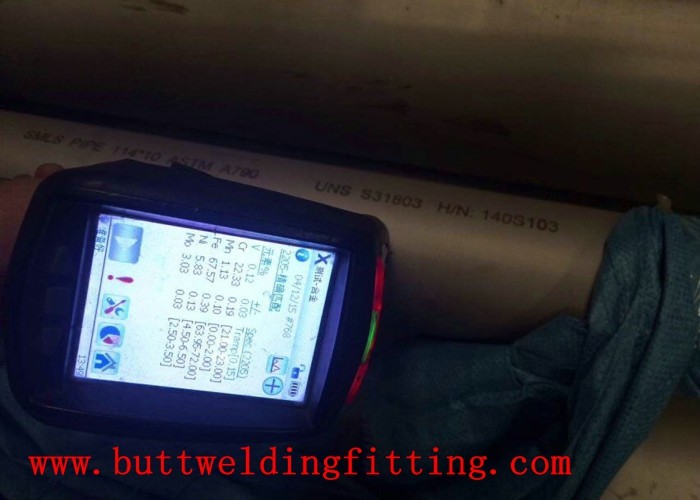

Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
| | 201 | 202 | 304 | 316L | 430 |
C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.35 | ≤0.12 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | |
Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10-14 |
| |
Mo |
|
|
| 2.0-3.0 |
| |
| Material Item | 201 | 202 | 304 | 316 | |
Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
Hardness (HV) | <105 | <100 | <90 | <90 | ||
ADVANTAGE:
1, Direct material sourcing from Bao Steel, ZPSS, TISCO.
2, More than 5 processing mills to produce the welded titanium tube for us. And also we own a steel tube mill.
3, Strong business cooperation with Bao Steel and Shanghai Minmetals.
4, More than usd$50,000,000 annual turnover.
We are professional manufacturer of stainless steel products, including stainless steel decorative pipes,industrial stainless welded pipes, special-shaped pipes, stainless steel sheet and etc.
