TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | UNS N10276 ASTM B622 |
| Minimum Order Quantity: | 0.5-1 tons |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | According to the qty |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 6000TONS/MONTH |
| Standard:: | ASTM B619 | Color: | White Silver Gold |
|---|---|---|---|
| Types:: | Welded Stainless Steel Tube | Material Grade: | Hastelloy C276 |
| Outer Diameter: | 6mm-530mm | ||
| Highlight: | Welded Stainless Steel Tubing,SS Welded Tube |
||
6 Inch Sch40 Alloy C276 PIPE Uns N10276 ASTM B622 ASTM B619 Hastelloy C276 Welded Pipes
Detailed Product Description
| Processing: | Hole/bore-drilling, Bending, Sharpening, Fringe | Application: | Fluid And Gas Transport,decoration, Construction,medical Equipment, Aviation, Boiler Heat-exchanger |
| Material Grade: | 304L, 316L Or By Request | Outer Diameter: | 0.25mm-12mm |
| Standard: | ASTM A554, A312, A249, A269 And A270 | Surface: | Polished,annealed,tempered |
| Type: | Stainless Steel Welded Tube / Pipe | Wall Thickness: | 0.08-1.0mm |
Small Diameter Welded Stainless Steel Tube For Bending Hole-Drilling Flaring 0.25mm - 8mm
Quick Detail:
Welded tube of small diameter(0.25-8mm); any processing is available(bending, hole-drilling, flaring, end-narrowing, etc.)
Stainless steel welded tube.As displayed, its diameter can be limited in an extreamly small range.
Features:
1) Diameter: 0.25-12mm
2) Thickness: 0.08-1.0mm
3) Material: 304L, 316L or by request.
4) Length: According to customers' requests
5) Tolerance: 0.01-0.02mm
6) Surface: Polished , annealed ,tempered
7) Application: The products are widely used in precision instruments and apparatus, electronics, electric appliance and others
10)Processing: Hole/bore-drilling, bending, sharpening, fringe
ASTM A270 Stainless Steel Welded Tubing, bright annealed, TP304,TP304L ,TP316L
| Name | 304 Stainless Steel tube | ||||
| Standard | ASTM A554, A312, A249, A269 and A270 | ||||
| Material Grade | 304,304L,316,316L,202,201 | ||||
| Outer Diameter | 0.25mm-12mm | ||||
| Thickness | 0.08-1.0mm | ||||
| Length | 1m or as customers' request | ||||
| Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish)400G, 600G Mirror finish | ||||
| Application | Fluid and gas transport,decoration, construction,medical equipment, aviation, boiler heat-exchanger and other fields | ||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | ||||
| Payment | 30% T/T as deposit, the balance before shipment or L/C. | ||||
| Delivery time | 10~30 days ,according to the order quantity | ||||
| Packing | Bundled with knitted plastic bag, wooden cases or according to customers' request. | ||||
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | |
| Hardness (HV) | <105 | <100 | <90 | ||
tainless steel pipe chemical composition
| Grade | Chemical Composition % | ||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | N | |
| 1Cr17Mn6Ni5N (201) | ≤0.15 | 16.00-8.00 | 3.50-5.50 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
| 1Cr18Mn8Ni5N (202) | ≤0.15 | 17.0019.00 | 4.00-6.00 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
|
0Cr18Ni9 (304) |
≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
|
00Cr18Ni10 (304L) |
≤0.03 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
| 0Cr17Ni12Mo2 (316) | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.03 | 2.003.00 | ≤1.0 | |
| 0Cr17Ni14Mo2 (316L) | ≤0.03 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.0 | |
The welded stainless steel pipe is made from stainless steel by electric welding or sheet metal strips by means of forming and welding. Electrically welded tube is made of thermally without subsequent processing and hot-reducing.
Applications of Stainless Steel Welded Tube
1.Construction: Architectural decoration , banister, city-scape .etc
2.Food producing equipment::such as beer brewing, milk processing & wine making .etc
3.Medical field: medical instruments
4.Fluid transport-pipeline: fluid pipe ,pressure pipe ,pipe for mechical structure , including for transport
5.Heat Exchanger tube

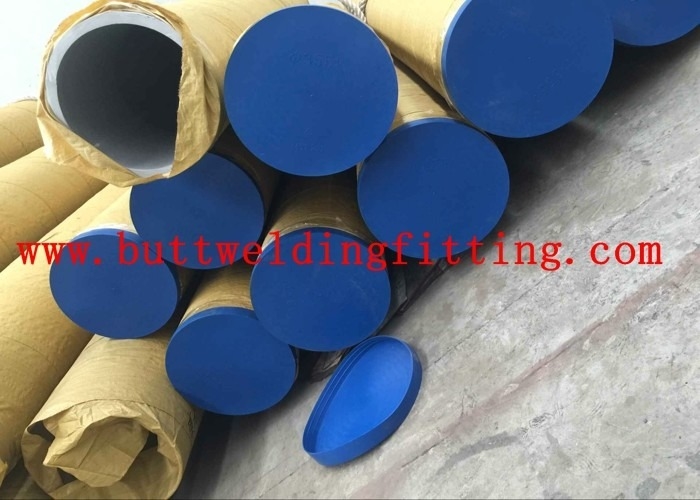

Packing and Label
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
