| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Forged Pipe Fittings |
| Minimum Order Quantity: | 1PC |
| Price: | 3,0000pcs per month |
| Packaging Details: | wooden case |
| Delivery Time: | 10-100 days depending on quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Size: | 1-8 Inch | Material: | A182 F52 F53 F55 |
|---|---|---|---|
| Type: | Seamless | Standard: | DIN,EN,ASTM,BS,JIS,GB,etc. |
| DN: | 15-200 | ||
| Highlight: | forged steel pipe fittings,forged high pressure pipe fittings |
||

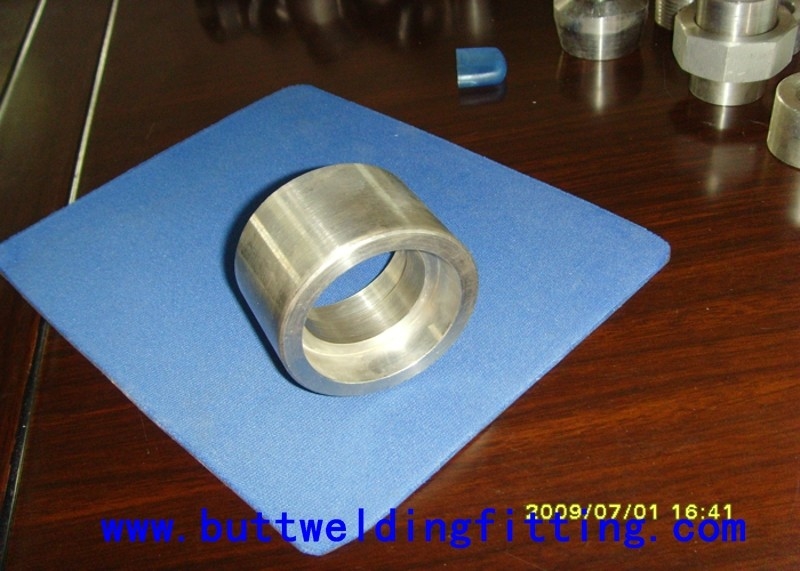

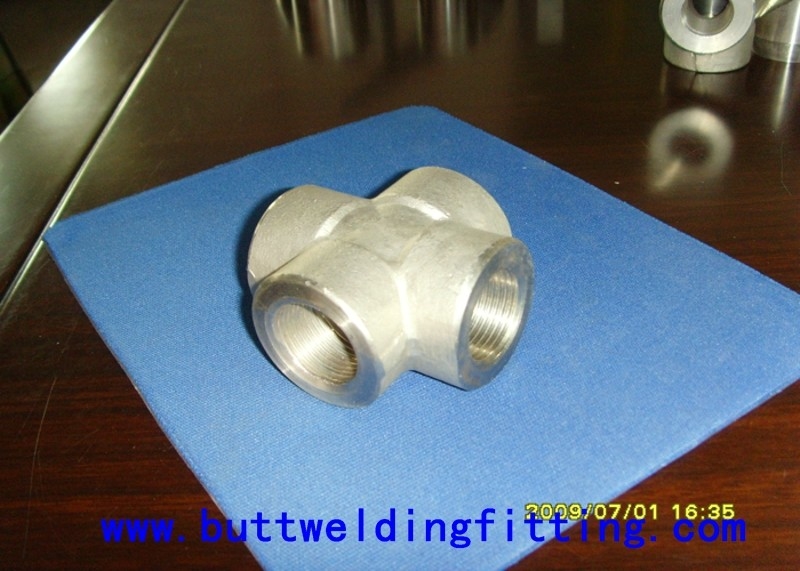

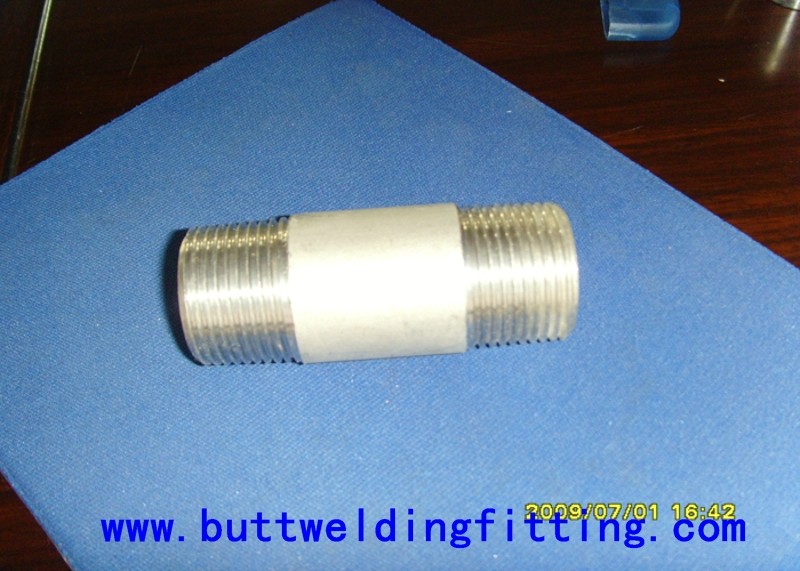

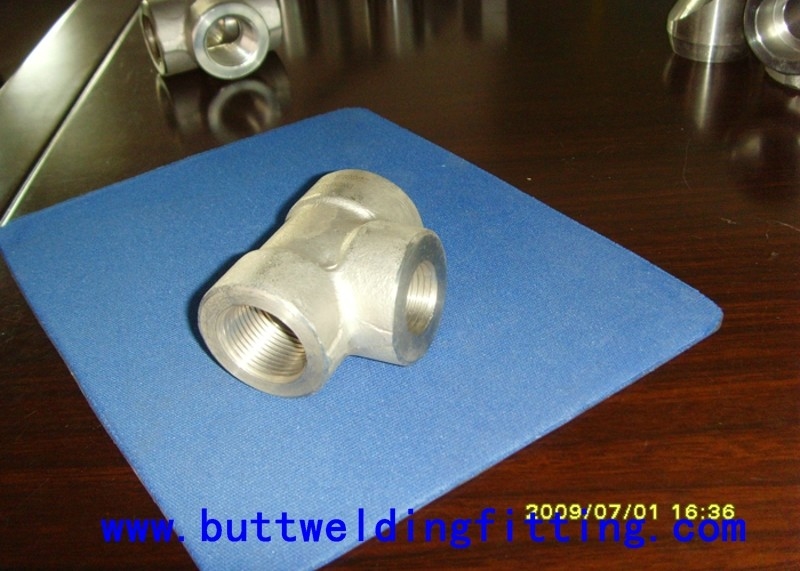

Forged Pipe Fittings ASME B16.11 A182 A182 F304L F316L ,904L, F11,F12 ,F51.F52,F53,F55,ELBOW, TEE, REDUCER,
| NAME | ANSI B16.11 forged fittings, steel forged pipe fitting |
| PRODUCTS | Elbows, reducers, pipe tees, bends, pipe caps |
| MATERIAL |
Carbon steel, alloy steel, stainless steel We can produce according to materials apppoingted by consumers |
| STANDARD |
ANSI, ASME, AP15L, DIN, JIS, BS, GB We can also produce according to drawing by customers. |
| WALL THICKNESS | Sch5-Sch160 XS XXS STD |
| SIZE | 1/2-72 |
| RANGE OF APPLICATION | Chemical industry, petroleum industry, constructin industry, domestic installation and other |
| DELIVER TIME | 15-60 DAYS |
| PAYMENT | T/T OR L/C |
| SURFACE TREATMENT | Shot blasted, rust-proof black oil |
| CERTIFICATES | ISO-9001:2000, API,CCS |
| We have the biggest pipe fitting equipment in China, and can provide you with the best product in competitive price. Looking forward to build business with you. | |
|

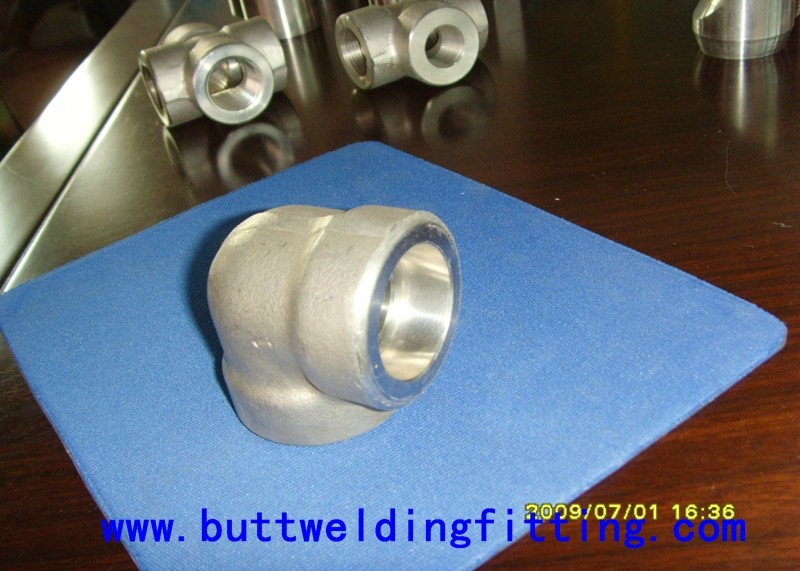

socket elbow 90 degree long radius weight--kg |
m3 | ||||||
| DN | NPS | SCH80/3000 | SCH160/6000 | XXS/9000 | SCH80/3000 | SCH160/6000 | XXS/9000 |
| 6 | 1/8 | 0.09 | 0.15 | - | 0.018*10-3 | 0.027*10-3 | - |
| 8 | 1/4 | 0.09 | 0.15 | - | 0.027*10-3 | 0.042*10-3 | - |
| 10 | 3/8 | 0.12 | 0.32 | - | 0.042*10-3 | 0.068*10-3 | - |
| 15 | 1/2 | 0.26 | 0.40 | 0.85 | 0.068*10-3 | 0.120*10-3 | 0.180*10-3 |
| 20 | 3/4 | 0.35 | 0.65 | 1.48 | 0.120*10-3 | 0.180*10-3 | 0.310*10-3 |
| 25 | 1 | 0.49 | 1.25 | 2.20 | 0.180*10-3 | 0.310*10-3 | 0.397*10-3 |
| 32 | 1-1/4 | 0.85 | 1.40 | 2.90 | 0.310*10-3 | 0.397*10-3 | 0.745*10-3 |
| 40 | 1-1/2 | 1.05 | 2.45 | 3.80 | 0.397*10-3 | 0.745*10-3 | 1.126*10-3 |
| 50 | 2 | 1.75 | 2.76 | 6.35 | 0.745*10-3 | 1.126*10-3 | 1.724*10-3 |
| 65 | 2-1/2 | 3.80 | 4.80 | - | 1.126*10-3 | 1.724*10-3 | - |
| 80 | 3 | 5.20 | 8.85 | - | 2.172*10-3 | 2.523*10-3 | - |
| 100 | 4 | 11.0 | - | - | 3.756*10-3 | - | |
Class 2000 |
Nominal Pipe Size |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| A | - | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | - | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| Wt | - | 0.198 | 0.283 | 0.500 | 0.773 | 1.013 | 1.550 | 2.180 | 3.140 | 6.500 | 10.925 | 26.675 | |
Class 3000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| Wt | 0.236 | 0.350 | 0.592 | 0.973 | 1.355 | 2.265 | 2.407 | 3.500 | 5.920 | 11.900 | 14.438 | 31.975 | |
Class 6000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
| B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
| Wt | 0.250 | 0.625 | 1.023 | 1.625 | 2.625 | 3.500 | 6.750 | 7.500 | 13.438 | 20.875 | 39.050 | 38.000 | |
Class 3000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | 29/32 | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| C | 0.420 | 0.555 | 0.690 | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
| D | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
| E | 7/16 | 7/16 | 17/32 | 5/8 | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 5/8 | |
| Wt | 0.250 | 0.250 | 0.345 | 0.540 | 0.925 | 1.307 | 2.000 | 2.640 | 4.070 | 8.750 | 12.500 | 27.800 | |
Class 6000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | - | - | - | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | - | - | - | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| C | - | - | - | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
| D | - | - | - | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
| E | - | - | - | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 1/2 | 2 3/4 | |
| Wt | - | - | - | 1.375 | 2.000 | 3.313 | 3.750 | 7.480 | 8.240 | 16.625 | 23.500 | 33.000 | |
Class 9000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | - | - | - | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 | - | - | - | |
| B | - | - | - | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 3 11/16 | - | - | - | |
| C | - | - | - | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | - | - | - | |
| D | - | - | - | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | - | - | - | |
| E | - | - | - | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 2 1/8 | - | - | - | |
| Wt | - | - | - | 2.00 | 3.31 | 3.75 | 6.50 | 7.88 | 8.75 | - | - | - | |
Class 3000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | 29/32 | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| C | 0.420 | 0.555 | 0.690 | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
| D | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
| E | 7/16 | 7/16 | 17/32 | 5/8 | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 5/8 | |
| Wt | 0.250 | 0.250 | 0.375 | 0.813 | 1.125 | 1.550 | 2.250 | 3.063 | 5.125 | 18.000 | 23.000 | 40.000 | |
Class 6000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||||
| A | - | - | - | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | ||||
| B | - | - | - | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | ||||
| C | - | - | - | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | ||||
| D | - | - | - | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | ||||
| E | - | - | - | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | ||||
| Wt | - | - | - | 1.500 | 2.500 | 3.460 | 5.250 | 8.750 | 9.438 | ||||
Class 9000 XXS Bore |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | - | - | - | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | - | - | - | |
| B | - | - | - | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | - | - | - | |
| C | - | - | - | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | - | - | - | |
| D | - | - | - | 1/2 | 5/8 | 3/4 | 1 | 1 | 1 1/8 | - | - | - | |
| E | - | - | - | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 2 1/8 | - | - | - | |
| Wt | - | - | - | 2.50 | 4.12 | 4.12 | 5.12 | 9.44 | 22.19 | - | - | - |
