| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | Copper Nickel Tube |
| Minimum Order Quantity: | 1pc |
| Price: | USD Depend on |
| Packaging Details: | Export standard package: bundled wooden box or be required |
| Delivery Time: | 10-90 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 tons per mouth |
| Standard: | ASME SB165, SB111, Etc. | OD: | 6-219.1mm |
|---|---|---|---|
| WT: | 0.7-12.7mm | Length: | 0-38000mm |
| Material: | Copper (C10200,C11000,C10100,C10200,C12000,)C11600, | ||
| Highlight: | copper nickel pipe,copper nickel tubing |
||

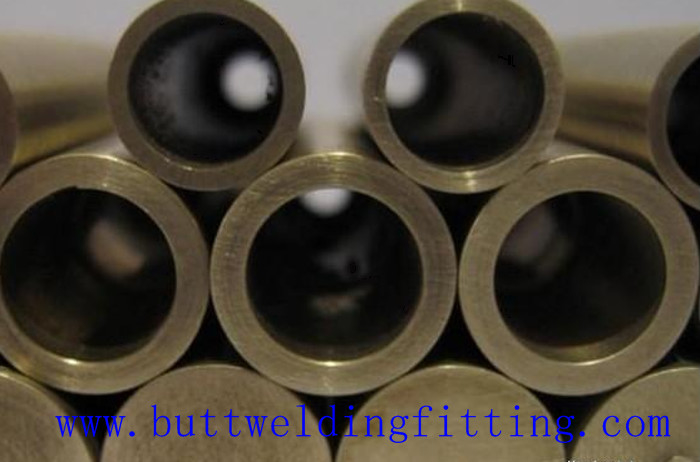

Copper Nickel Tube cu-ni 90/10 C70600 seamless copper nickel alloy tube, copper tube

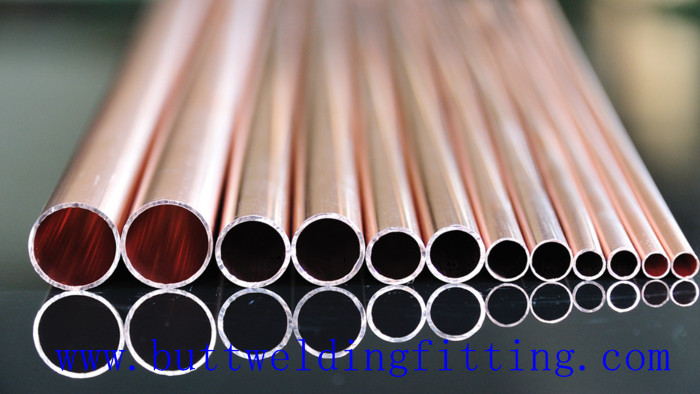

Small diameter copper tube
1. Shape : Copper Pipe Pancake Coil and Copper Straight Pipe
2. Outside Diameter: 1/4"- 7/8"and 1/4" -4 1/8"
3. Length: 5.8m, 6m, 15m, 30m.
4. Temper: Hard, Half Hard, Soft
5. Standard: ASTM B280, EN12735, JIS H3300, AS1571.
6. Package: Carton Box, wooden pallet .
7.MOQ:300kgs each size
8.Payment:TT or LC
9.Delivery:within 15 days after receipt the deposit.
Specifications (for reference only)
OD: 4.0mm, Thickness: 0.40/0.45/0.50mm
OD: 4.76mm=3/16'', Thickness: 0.35mm - 1.00mm
OD: 6.00mm, Thickness: 0.35mm - 1.00mm
OD: 6.35mm=1/4'', Thickness: 0.35mm - 1.20mm
OD: 7.94mm=5/16'', Thickness: 0.30mm - 1.20mm
OD: 8.00mm, Thickness: 0.30mm - 1.20mm
OD: 9.52mm=3/8'', Thickness: 0.30mm - 1.50mm
OD: 12.00mm, Thickness: 0.35mm - 1.50mm
OD: 12.70mm=1/2'', Thickness: 0.35mm - 1.50mm
OD: 14.00mm, Thickness: 0.40mm - 1.50mm
OD: 15.00mm, Thickness: 0.40mm - 1.50mm
OD: 15.88mm=5/8'', Thickness: 0.40mm-1.50mm
OD: 16.00mm, Thickness: 0.50mm - 1.50mm
OD: 19.05mm=3/4'', Thickness: 0.60mm - 1.50mm
OD: 28.57mm = 1 1/8'', Thickness: 0.70mm - 1.50mm
| Description | Copper Nickel tube | |
| Standards | ASTM, AISI, JIS, SUS, EN, DIN, BS, GB | |
| Material |
ASTM :Copper (C10200,C11000,C10100,C10200,C12000,)C11600,
, C46200.C46400,C26130,C65600,) Bronze(C50500,C51100,C52100,C60800,C61000,C61900,C63010, C62300,C63000,C63280,C63020,C17200,C17000, C17500,C17510,C18200,C18100,C18200,C16200,C19400,C14500) Cupronickel(C70400,C71000,C71300,C71500,C70400,C70600, C75200,C77000,C75400,C79000,C79200) |
|
| Specifications |
thickness 1mm to 220mm ,diameter 6mm to 2500mm or as customer required |
|
| Price Term | EX-Work, FOB, CFR, CIF | |
| Payment Term | T/T, L/C, Western Union | |
| Delivery Time | According to customer' s quantity. | |
| Main Market |
USA ,Germany ,India ,Iran,Dubai,Iraq,Viet Nam,Ireland,Sinagpore, and so on . |
|
| Package | Export standard package: bundled wooden box or be required; | |
| Application |
1.Straight Copper Tubes for ACR and Refrigeration 2.Inner-grooved copper tube for ACR and Refrigeration 3.Copper Pipe for Transportation System of water, gas and oil |
|
2.Chemical composition:
| Copper Nickel Tube | ||||||
| Grade | Cu | Pb | Fe | Zn | Mn | Ni+Co |
| C70400 | Balance | ≤0.05 | 1.3-1.7 | ≤1.0 | 0.3-0.8 | 4.8-6.2 |
| C70600 | Balance | ≤0.05 | 1.0-1.8 | ≤1.0 | ≤1.0 | 9.0-11.0 |
| C70620 | ≥86.5 | ≤0.02 | 1.0-1.8 | ≤0.50 | ≤1.0 | 9.0-11.0 |
| C71000 | Balance | ≤0.05 | 0.5-1.0 | ≤1.0 | ≤1.0 | 19.0-23.0 |
| C71500 | Balance | ≤0.05 | 0.4-1.0 | ≤1.0 | ≤1.0 | 29.0-33.0 |
| C71520 | ≥65.0 | ≤0.02 | 0.4-1.0 | ≤0.50 | ≤1.0 | 29.0-33.0 |
