| Product Name: | Stub End | Product Type: | Butt Weld |
|---|---|---|---|
| Material: | Super Duplex 2507 (UNS32750) | Size: | 1/2"-48"(DN15-DN600) |
| Connection: | Welding | Head Code: | Round |
| Thk: | SCH5S-SCH160S | Surface Treatment:: | Lathe Finish&Abrasive Blasting |
| Highlight: | butt weld tube fittings,butt welded pipe fittings |
||
| Packaging Details: | fumigation free plywood cases or as per customers' requests |
|---|---|
| Delivery Detail: | Delivery after receiving deposit |

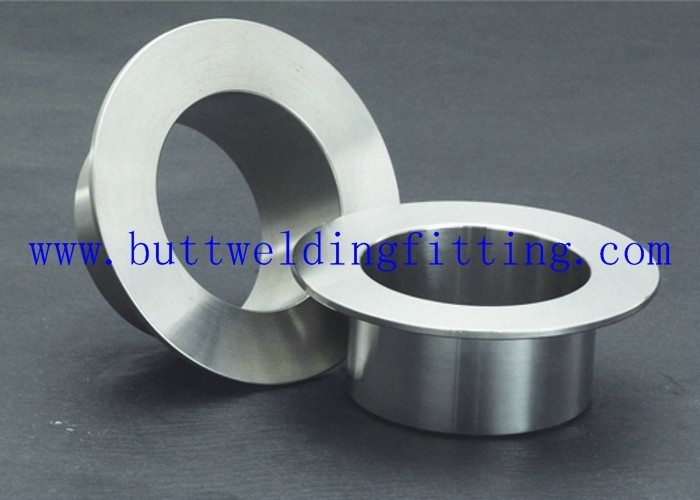

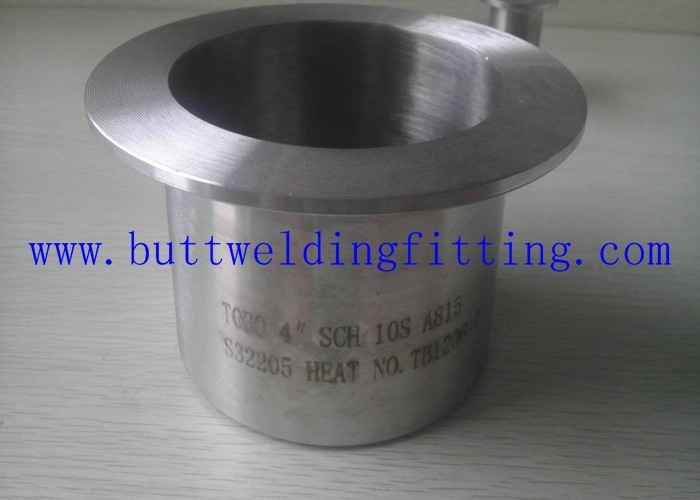

ASTM A815 UNS32750 2507 Stub End DN100 SCH160S
Size: 4 Inch (DN100)
Thk: SCH160S
Material: Super Duplex 2507 (UNS32750), etc
Super duplex stainless steel 2507 (UNS32750) Chemical Composition %
| Grade | Chemistry (Typical Values) | Mechanicals | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification | Cr | Ni | Mo | Cu | N | W | Si | Mn | P max |
S max |
C max |
Fe | UTS N/mm² (min) |
0.20% Proof (min) |
Elong % (min) |
Hardness HB (max) |
PREN |
| 2507 | 25.0 | 7.0 | 3.8 | 0.75 | 0.25 | 0.28 | 0.80 | 1.20 | 0.035 | 0.020 | 0.030 | Bal | 750 | 500-550 | 25 | 270 | 41 |
| Type | 2507 Stub End |
| Standard |
ASME B16.9, MSS SP-43, HG205099, HG20621, GB/T12459-2005, GB/T13401, SH3408-96,etc. |
| Size | 1/2"-48"(DN15-DN600) |
| Wall thickness | SCH5S-SCH160S |
| Type | Type A, Type B,Type C |
| Surface treatment | Lathe finish&Abrasive blasting |
| Stainless steel | 304, 304L,304H, 316, 316L,309S,310S, 321,321H,347H,316Ti |
| Duplex steel | 2205, etc |
| Super duplex steel | 2507, etc |

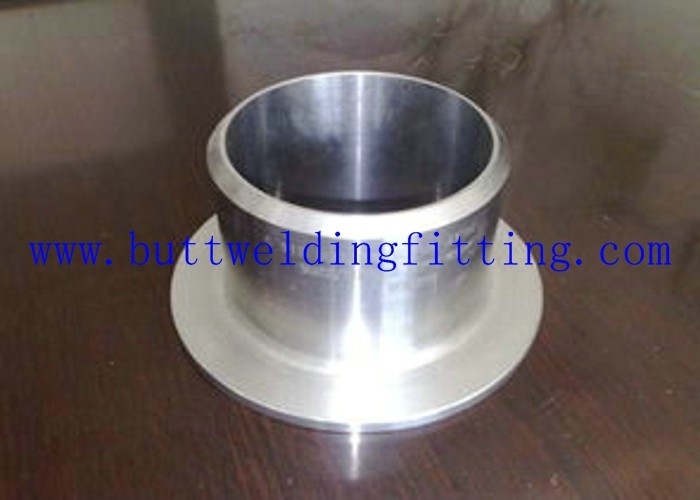

UNS32750 2507 Stub End
What are they?
UNS32750 2507 Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired.
They are also called Lap Joints and Vanstone Flared Laps.

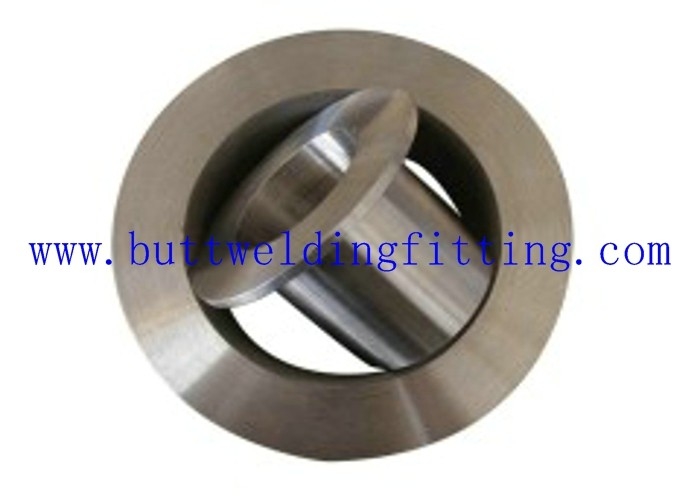

How do they work?
A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint.
Why?
Since Stub Ends are made from material compatible with the designed piping system, back up flanges do not have to be made from the same material. The flange can be made from less expensive material because it never comes in contact with the process fluid.

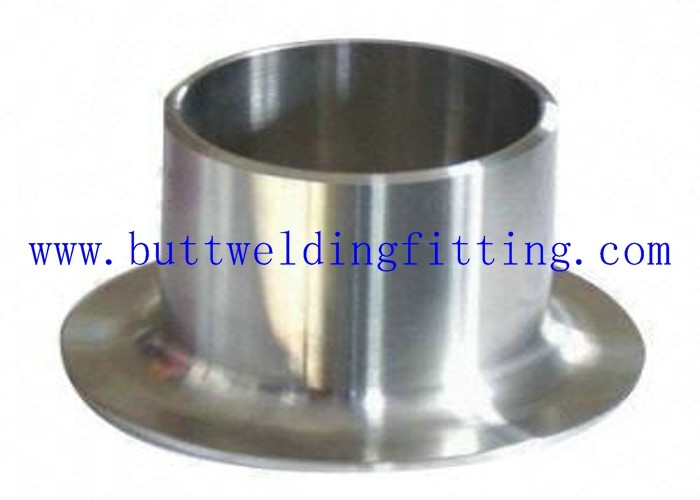

UNS32750 2507 Stub Ends' Types
UNS32750 2507 Stub Ends are typically manufactured by two methods. Type A & B Stub Ends are made similar to forged fittings such as Elbows and Flanges. Type C Stub Ends are made by forming pipe to the desired dimensions.
UNS32750 2507 Stub Ends are available in two standard lengths, MSS and ANSI.
UNS32750 2507 Stub Ends are normally provided with a standard weld bevel
UNS32750 2507 Stub Ends dimensions are found on our fitting dimensions page.
Type "A" - Type "B" - Type "C" - Type "CS"
Where can we find the high quality ASTM A815 UNS32750 2507 Stub End 4 Inch SCH160S.
