TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | Copper Nickel C7060 |
| Minimum Order Quantity: | 300 Kilogram/Kilograms |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | Plywood cases or customized |
| Delivery Time: | 7-30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Product Name: | Copper-Nickel Fitting | Product Type: | Flangeolet |
|---|---|---|---|
| Material: | Copper Nickel | Grade: | Copper |
| Application: | Water Heater | Outside Diameter:: | 6 - 8mm |
| Wall Thickness:: | 0.8 - 1.5mm | Place Of Origin: | China |
| Cu (Min): | 90% | ||
| Highlight: | Copper Nickel Alloy Pipe,copper nickel pipe |
||

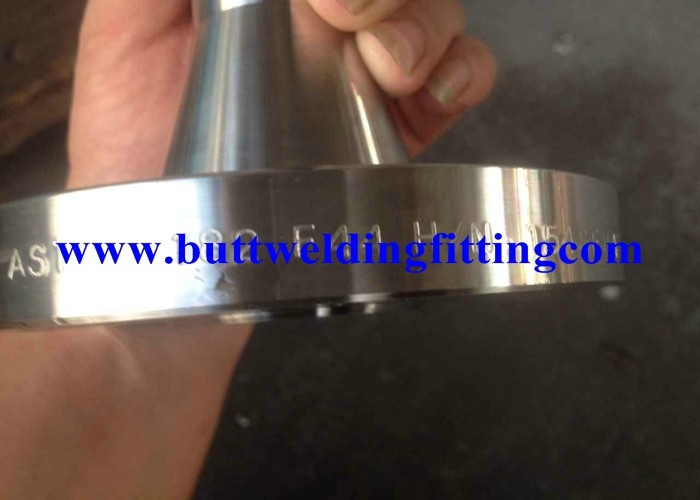

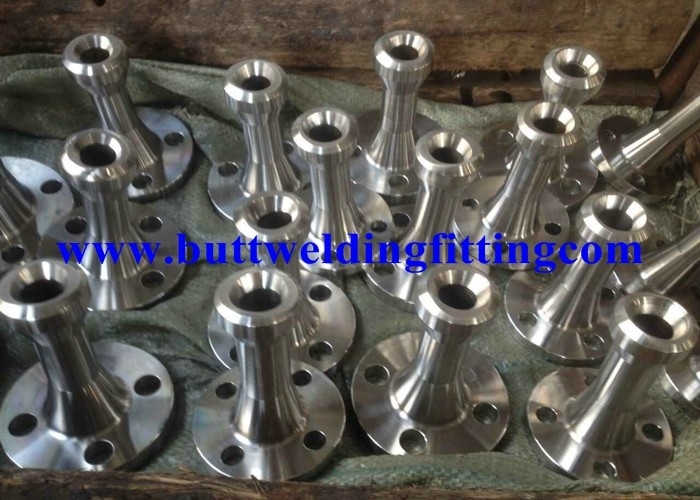

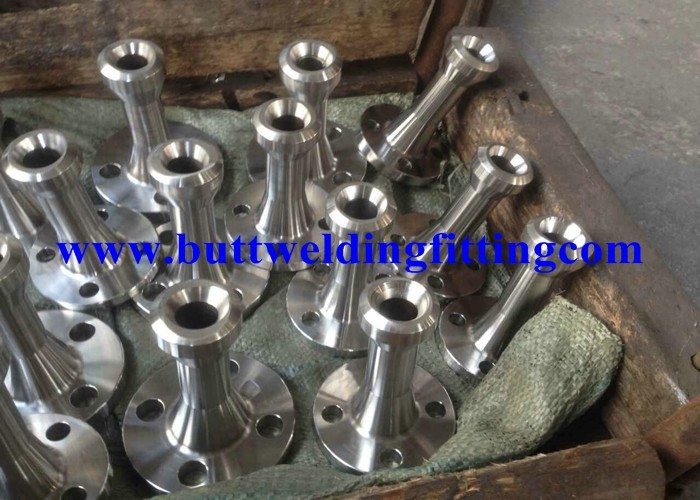

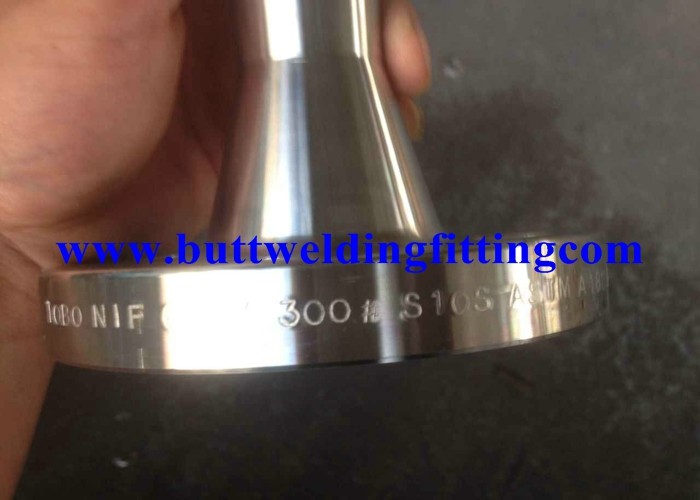

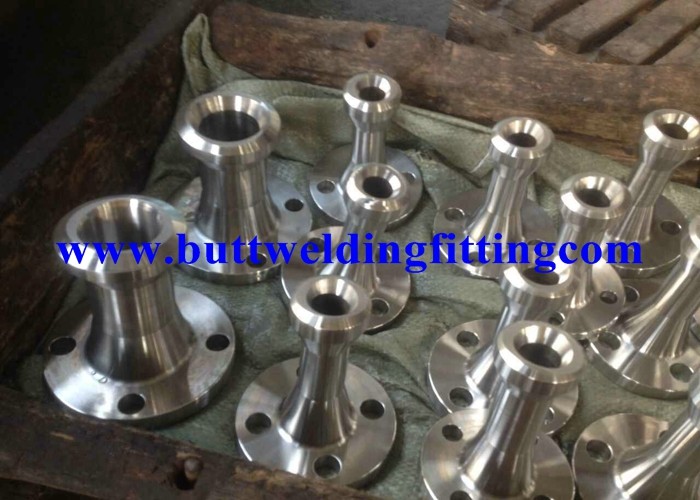

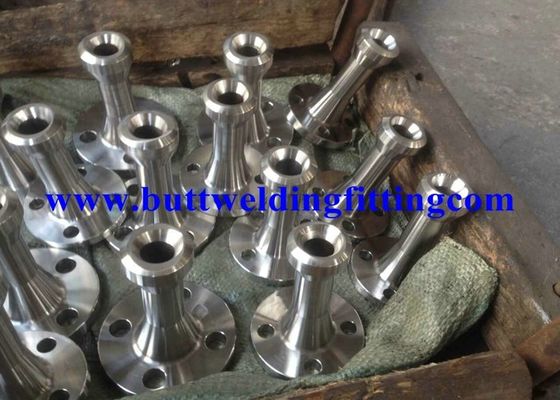

Copper Nickel Pipe Fitting CuNi 70/30 Flangolet / Nipoflange
| Material: |
Copper
|
Technics: |
casting&forged
|
Type: |
flangolet
|
| Place of Origin: |
Shanghai, China (Mainland)
|
Model Number: |
forged CuNi 70/30 flangolet
|
Brand Name: |
TOBO
|
| Connection: |
Welding
|
Shape: |
Equal
|
Head Code: |
round
|
| Type1: |
C71500 C70600 plug
|
Type2: |
C71500 C70600 union
|
Type3: |
C71500 C70600 bushing
|
| Type4: |
C71500 C70600 coupling
|
Type5: |
C71500 C70600 weldolet
|
Type6: |
C71500 C70600 sockolet
|
| Type7: |
C71500 C70600 threadolet
|
Type8: |
C71500 C70600 flangolet
|
| Packaging Details: | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| Delivery Detail: | 10-100 days depending on quantity |
| TECHNICAL SPECIFICATIONS FOR PIPING CUNIFE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | PIPES CU / NI | E015M-DIN1785-10X1,0MM-CUNI10FE1MN | MTS. | 144 |
| 2 | PIPES CU / NI | B009M-DIN1785-16X1,5MM-CUNI10FE1MN | MTS. | 144 |
| 3 | PIPES CU / NI | B009M-DIN86019-25X2,0MM-CUNI10FE1,6MN | MTS. | 144 |
| 4 | PIPES CU / NI | B009M-DIN86019-30X2,0MM-CUNI10FE1,6MN | MTS. | 144 |
| 5 | PIPES CU / NI | B009M-DIN86019-38X2,0MM-CUNI10FE1,6MN | MTS. | 144 |
| 6 | PIPES CU / NI | B009M-DIN86019-57X3,0MM-CUNI10FE1,6MN | MTS. | 144 |
| 7 | PIPES CU / NI | B009M-DIN86019-76X3,5MM-CUNI10FE1,6MN | MTS. | 144 |
| 8 | PIPES CU / NI | B009M-DIN86019-89X4,0MM-CUNI10FE1,6MN | MTS. | 144 |
| 9 | PIPES CU / NI | B009M-DIN86019-108X5,0MM-CUNI10FE1,6 | MTS. | 144 |
| 10 | PIPES CU / NI | B009M-DIN86019-159X8,0MM-CUNI10FE1,6 | MTS. | 144 |
| 11 | PIPES CU / NI | B009M-DIN86019-219X10,0MM-CUNI10FE1,6MN | MTS. | 144 |
| 12 | PIPES CU / NI | NW 40 44.5X2.5 mm | MTS. | 144 |
| 1728 | ||||
| TECHNICAL SPECIFICATIONS FOR STAINLESS STEEL PIPES 1.4571 (ROHR) UNITS FOR SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 32-38X2.6 mm | MTS. | 72 |
| 2 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 20-25X2.6 mm | MTS. | 12 |
| 3 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 16-20X2.5 mm | MTS. | 48 |
| 4 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 8-12X2 | MTS. | 30 |
| 5 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 10-14X2 | MTS. | 36 |
| 6 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 6-10X2 | MTS. | 66 |
| 7 | STAINLESS STEEL PIPE Nº 1.4571 (ROHR) | NW 40-44.5X2.6 mm | MTS. | 12 |
| TECHNICAL SPECIFICATIONS FOR STAINLESS STEEL PIPES No. 1.4301 (ROHR) UNITS FOR SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | STAINLESS STEEL PIPE Nº 1.4301 | NW 3-6X1.5 mm | MTS. | 24 |
| 2 | STAINLESS STEEL PIPE Nº 1.4301 | NW 6-10X2 mm | MTS. | 30 |
| 3 | STAINLESS STEEL PIPE Nº 1.4301 | NW 16-20X3 mm | MTS. | 12 |
| 4 | STAINLESS STEEL PIPE Nº 1.4301 | NW 32-38X2.5 mm | MTS. | 6 |
| 5 | STAINLESS STEEL PIPE Nº 1.4301 | NW 50-57X3 mm | MTS. | 6 |
| 6 | STAINLESS STEEL PIPE Nº 1.4301 | NW 25-30X3 mm | MTS. | 6 |
| TECHNICAL SPECIFICATIONS FOR STEEL PIPES ST, 35, 8 ɪ ɪ UNITS FOR SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | STEEL PIPES ST, 35, 8 ɪɪ | NW 50-57X2.9 mm | MTS. | 36 |
| 2 | STEEL PIPES ST, 35, 8 ɪɪ | NW 32-38X2.6 mm | MTS. | 24 |
| 3 | STEEL PIPES ST, 35, 8 ɪɪ | NW 16-21.3X2.9 mm | MTS. | 30 |
| 4 | STEEL PIPES ST, 35, 8 ɪɪ | NW 25-30X2.6 mm | MTS. | 12 |
| 5 | STEEL PIPES ST, 35, 8 ɪɪ | NW 80-88.9X3.6 mm | MTS. | 12 |
| 6 | STEEL PIPES ST, 35, 8 ɪɪ | NW 10-16X1.8 | MTS. | 12 |
| 7 | STEEL PIPES ST, 35, 8 ɪɪ | 168.3 X 12.5 | MTS | 12 |
| Note: Test Pressure: 50 bar. | ||||
| TECHNICAL SPECIFICATIONS FOR ELBOW OF CUNIFE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | ELBOW CUNIFER 90° | B009M-DIN86090-30X2,0MM90°/1,5D-CUNI10 | UNIDAD | 160 |
| 2 | ELBOW CUNIFER 90° | B009M-DIN86090-57X3,0MM90°/1,5D-CUNI10 | UNIDAD | 160 |
| 3 | ELBOW CUNIFER 45° | B009M-DIN86090-89X4,0MM45°/1,5D-CUNI10 | UNIDAD | 160 |
| 4 | ELBOW CUNIFER 90° | B009M-DIN86090-89X4,0MM90°/1,5D-CUNI10 | UNIDAD | 160 |
| 5 | ELBOW CUNIFER 45° | B009M-DIN86090-108X5,0MM45°/1,5D-CUNI10 | UNIDAD | 160 |
| 6 | ELBOW CUNIFER 90° | B009M-DIN86090-108X5,0MM90°/1,5D-CUNI10 | UNIDAD | 160 |
| 7 | ELBOW CUNIFER 16MM WITH INCORPORATED SILVER SOLDER | B009M-PN63/315-16MM90°-CUNI10FE1MN | UNIDAD | 160 |
| TECHNICAL SPECIFICATIONS FOR ELBOW (Rohrbogen) OF CUNIFE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | ELBOW CUNI 10 FE (ROHRBOGEN) | 90° -1.5 D-NW 70-76X3.5 | PZ. | 42 |
| 2 | ELBOW CUNI 10 FE (ROHRBOGEN) | 90° -1.5 D-NW 32-38X2 | PZ. | 18 |
| 3 | ELBOW CUNI 10 FE (ROHRBOGEN) | 90° -1.5 D-NW 40-44.5X2.5 | PZ. | 6 |
| 4 | ELBOW CUNI 10 FE (ROHRBOGEN) | 45° -1.5 D-NW 25-30X2 | PZ. | 12 |
| 5 | ELBOW CUNI 10 FE (ROHRBOGEN) | 45° -1.5 D-NW 50-57X3 | PZ. | 24 |
| 6 | ELBOW CUNI 10 FE (ROHRBOGEN) | 45° -1.5 D-NW 70-76X3.5 | PZ. | 12 |
| 7 | ELBOW CUNI 10 FE (ROHRBOGEN) | 90° -1.5 D-NW 200-219X10 | PZ. | 3 |
| 8 | ELBOW CUNI 10 FE (ROHRBOGEN) | 90° -1.5 D-NW 150-159X8 | PZ. | 3 |
| TECHNICAL SPECIFICATIONS FOR STAINLESS STEEL ELBOWS No. 1.4301 (ROHR BOGEN) UNITS FOR SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | STAINLESS STEEL ELBOW Nº 1.4301 | ROHR BOGEN 90°-30X2.6 mm DIN 2605 | PZ. | 4 |
| TECHNICAL SPECIFICATIONS FOR ELBOW STAINLESS STEEL 1.4571 (BOGEN) UNITS FOR SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | STAINLESS STEEL (BOGEN) ELBOW Nº 1.4571 | BOGEN 90°-1.5D-44.5X2.6 mm NW40 | PZ. | 3 |
| TECHNICAL SPECIFICATIONS FOR CUNIFE PIPE FLANGE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | PIPE FLANGE CUNIFER | E015M-DIN1785-10X1,0MM-CUNI10FE1MN | UNIDAD | 40 |
| 2 | PIPE FLANGE CUNIFER | B009M-DIN1785-16X1,5MM-CUNI10FE1MN | UNIDAD | 40 |
| 3 | PIPE FLANGE CUNIFER | B009M-DIN86019-25X2,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 4 | PIPE FLANGE CUNIFER | B009M-DIN86019-30X2,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 5 | PIPE FLANGE CUNIFER | B009M-DIN86019-38X2,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 6 | PIPE FLANGE CUNIFER | B009M-DIN86019-57X3,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 7 | PIPE FLANGE CUNIFER | B009M-DIN86019-76X3,5MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 8 | PIPE FLANGE CUNIFER | B009M-DIN86019-89X4,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 9 | PIPE FLANGE CUNIFER | B009M-DIN86019-108X5,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 10 | PIPE FLANGE CUNIFER | B009M-DIN86019-159X8,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 11 | PIPE FLANGE CUNIFER | B009M-DIN86019-219X10,0MM-CUNI10FE1,6MN | UNIDAD | 40 |
| 12 | CUNIFER UNION (BUND B80) | HDW 45215 CUNI10FE | UNIDAD | 40 |
| 13 | CUNIFER UNION (BUND B100) | HDW 45216 CUNI10FE | UNIDAD | 40 |
| TECHNICAL SPECIFICATIONS FOR REDUCTIONS CUNIFE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 100/70 | PZ | 2 |
| 2 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 80/70 | PZ | 10 |
| 3 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 70/50 | PZ | 10 |
| 4 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 50/40 | PZ | 14 |
| 5 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 100/80 | PZ | 15 |
| 6 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 200/150 | PZ | 5 |
| 7 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 150/100 | PZ | 6 |
| 8 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 100/70 | PZ | 10 |
| 9 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 50/32 | PZ | 3 |
| 10 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 25/20 | PZ | 10 |
| 11 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 20/16 | PZ | 7 |
| 12 | REDUCTION CUNI 10 FE (REDUZIERUNG) | NW 40/32 | PZ | 6 |
| TECHNICAL SPECIFICATIONS FOR REDUZIERSTUCK E.CU F30 SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | REDUZIERSTUCK E.CU F30 | NW 20/12 DE E.CU F30 ARM-5183 | PZ. | 12 |
| TECHNICAL SPECIFICATIONS FOR REDUZIERKEGEL E.CU F30 SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | REDUZIERKEGEL E.CU F30 | NW 12/16 DE E.CU F30 ARM-5180 | PZ. | 7 |
| TECHNICAL SPECIFICATIONS FOR Aush ALSUNG CUNI 10FE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | AUSH ALSUNG CUNI 10FE | 100/80 DE CUNI 10 FE | PZ. | 7 |
| TECHNICAL SPECIFICATIONS FOR THE NECKS (BUND) OF CUNIFE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | CUNI NECKS 10 FE (BUND) | B100 | PZ. | 120 |
| 2 | CUNI NECKS 10 FE (BUND) | B80 | PZ. | 68 |
| 3 | CUNI NECKS 10 FE (BUND) | B70 | PZ. | 70 |
| 4 | CUNI NECKS 10 FE (BUND) | B25 | PZ. | 50 |
| 5 | CUNI NECKS 10 FE (BUND) | B50 | PZ. | 216 |
| 6 | CUNI NECKS 10 FE (BUND) | B32 | PZ. | 56 |
| 7 | CUNI NECKS 10 FE (BUND) | B40 | PZ. | 34 |
| 8 | CUNI NECKS 10 FE (BUND) | B150 | PZ. | 12 |
| 9 | CUNI NECKS 10 FE (BUND) | B200 | PZ. | 10 |
| TECHNICAL SPECIFICATIONS FOR MASCHINEN Bogen CUNIFE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | MASCHINEN BOGEN CUNI 10 FE | NW 50 | PZ. | 12 |
| 2 | MASCHINEN BOGEN CUNI 10 FE | NW 44 | PZ. | 7 |
| 3 | MASCHINEN BOGEN CUNI 10 FE | NW 32 | PZ. | 12 |
| 4 | MASCHINEN BOGEN CUNI 10 FE | NW 80 | PZ. | 3 |
| TECHNICAL SPECIFICATIONS FOR MASCHINEN BOGEN CUAS PF 25 SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | MASCHINEN BOGEN CUAS PF 25 | NW 16 | PZ. | 18 |
| 2 | MASCHINEN BOGEN CUAS PF 25 | NW 25 | PZ. | 12 |
| 3 | MASCHINEN BOGEN CUAS PF 25 | NW 12 | PZ. | 18 |
| 4 | MASCHINEN BOGEN CUAS PF 25 | NW 6 | PZ. | 12 |
| TECHNICAL SPECIFICATIONS FOR BOGEN CUAS ROHR PF 25 (ELBOW) SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | ROHR BOGEN CUAS PF 25 (CODOS) | 90° -1.5D NW 25-30X2 | PZ. | 6 |
| TECHNICAL SPECIFICATIONS FOR ROHR PF CUAS 25 SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | ROHR CUAS PF 25 | NW 16-20X2 | MTS. | 54 |
| 2 | ROHR CUAS PF 25 | NW 12-16X2 | MTS. | 84 |
| 3 | ROHR CUAS PF 25 | NW 6-10X2 | MTS. | 108 |
| 4 | ROHR CUAS PF 25 | NW 8-12X2 | MTS. | 114 |
| 5 | ROHR CUAS PF 25 | NW 10-14X2 | MTS. | 18 |
| TECHNICAL SPECIFICATIONS FOR UNIONS T CUNI 10FE (T. VERSCHRAUBUND) SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | CUNI UNION ¨T¨ 10 FE (T. VERSCHRAUBUND) | T. VERSCHRAUBUND P20 DIN 86140 m. o. ARM 5151 | PZ. | 7 |
| 2 | CUNI UNION ¨T¨ 10 FE (T. VERSCHRAUBUND) | T. VERSCHRAUBUND P30 DIN 86140 m. o. ARM 5153 | PZ. | 4 |
| 3 | CUNI UNION ¨T¨ 10 FE (T. VERSCHRAUBUND) | T. VERSCHRAUBUND P25 DIN 86140 m. o. ARM 5152 | PZ. | 7 |
| 4 | CUNI UNION ¨T¨ 10 FE (T. VERSCHRAUBUND) | T. VERSCHRAUBUND P16 DIN 86140 m. o. ARM 5150 | PZ. | 4 |
| TECHNICAL SPECIFICATIONS FOR VERSCHRAUBUNG G. CU. SN 12 SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | VERSCHRAU BUND G. CU. SN 12 | E 25 DE G.CU. SN 12 | PZ. | 12 |
| 2 | VERSCHRAU BUND G. CU. SN 12 | E 30 DE G.CU. SN 12 | PZ. | 12 |
| TECHNICAL SPECIFICATIONS FOR Sattelstütze CUNI 10FE SALTWATER SYSTEM UNITS OF SUBMARINE TYPE 209 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | SATTELSTUTZEN CUNI 10FE | NW 50/32 DE CUNI 10 FE | PZ. | 3 |
| 2 | SATTELSTUTZEN CUNI 10FE | NW 32/32 O.Z. DE CUNI 10 FE | PZ. | 3 |
| 3 | SATTELSTUTZEN CUNI 10FE | NW 50/50 O.Z. DE CUNI 10 FE | PZ. | 4 |
| 4 | SATTELSTUTZEN CUNI 10FE | NW 32/50 O.Z. DE CUNI 10 FE | PZ. | 3 |
| WATER SYSTEM PARTS MOLDED CIRCULATION (MANIFOLDS) BRONZE MATERIAL: G-NIAL-BE-F60 SPEZIFIKACION: 1082MICROFILM: 131-2070-30-00-00 | ||||
| ITEM | DESCRIPTION | IDENTIFICATION / REFERENCE | UNIDS | QUANTITY |
| 1 | MANIFOLDS G-NIAL-BE-F60 | FORM STUCK 4 106/2554-74-00-00 | PZ. | 1 |
| 2 | MANIFOLDS G-NIAL-BE-F60 | FORM STUCK 5 106/2554-77-00-00 | PZ. | 1 |
| 3 | MANIFOLDS G-NIAL-BE-F60 | FORM STUCK 3 106/2554-77-00-00 | PZ. | 1 |
