TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | Cu Ni 90/10 C70600 |
| Minimum Order Quantity: | 1PC |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, D/P, D/A |
| Supply Ability: | 9800000PCS PER MONTH |
| Material: | Cu Ni 90/10 C70600 | Model Number:: | Nickel Alloy Pipe, Monel 400, EN 2.4360, Monel K500, 2.4375, ASTM B 163 / B730, ASTM B165 / B725, SEAMLESS & WELDED |
|---|---|---|---|
| Standard: | ANIS B36.10~B36.19 | Application: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc |
| Highlight: | Thin Wall Steel Pipe,Alloy Steel Seamless Pipe |
||

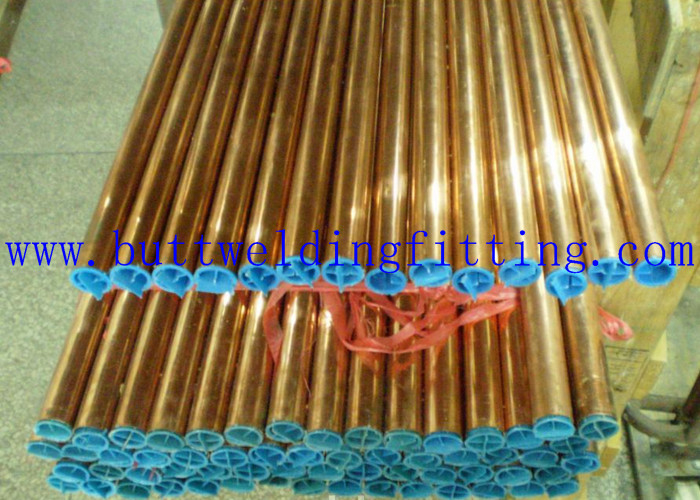

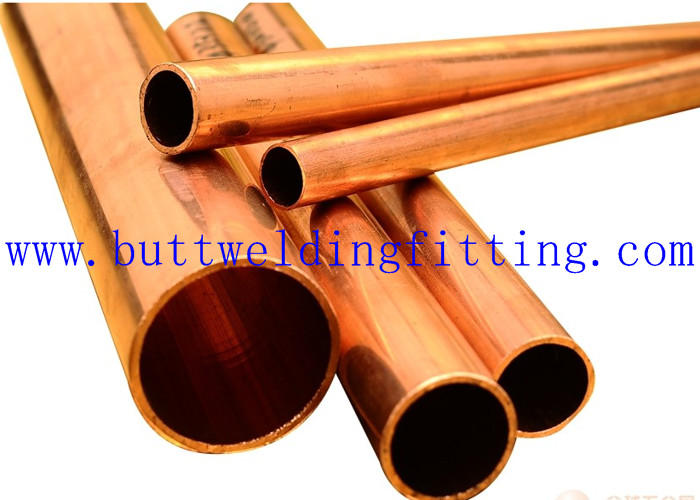

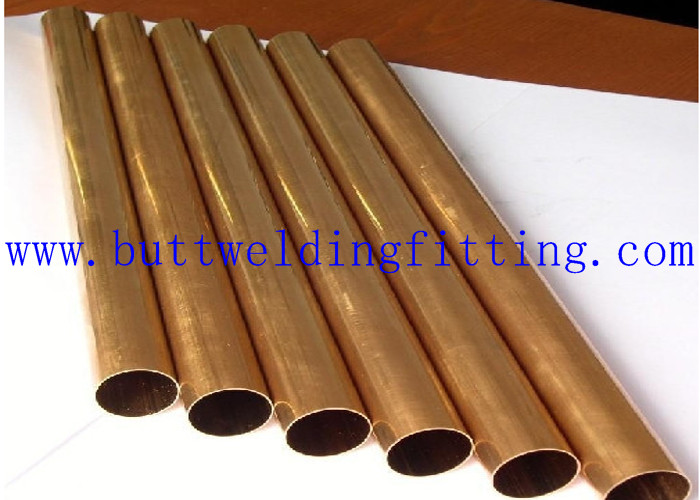

Cu Ni 90/10 C70600 Nickel Alloy Pipe Alloy Steel Seamless Tube
Copper tube
1)Copper Tube in grade:C11000, C12200.
2)Copper:cu min.99.9%
3)Phosphorus: 0.01% - 0.04%
4)Standard is ASTM
Specifications of Copper Pipe/Tube:
1) OD: 6.35mm - 219mm
2) WT: 0.4mm-5mm
3) Grade: C11000,C12200
4) Chemical Composition:Cu >99.90% P:0.015%-0.040%
5) Temper: O, 1/4H, 1/2H, H. O : HV<70; 1/4H :HV 65-85; 1/2H :HV 80-100; H :HV >100
6) Electric 20°CConductivity:C1100 >97% ;C12200 >80%
Features for Copper tube:
It is extruded and well processed: joined by welding. Copper tube is harder than the plastic tube and has higher strength than other metal tubes, with the best flexibility.
1) Superior elongation
2) Good corrosion-resistance
3) Climate-hardiness
4) Electric
5) Heat conduction.
Process of the Copper tube:
Melting→casting→Extruding→Reducer→Drawing→Annealing→Packing
Quality Control & Guarantee System of Copper tube :
1) Full Controlled by ISO system
2) Chemical analysis before casting
3) Eddy current testing
4) Dimension check
5) Miscellaneous tests
6) Tensile test (Tensile strength, yield strength, elongation)
7) Expansion test
8) Hardness test
9) Microscopically examination
Applications for the Copper tube:
1) Air Conditioner and Refrigerator
2) Water tube service and distribution
3) Fire Protection, Solar, Fuel/Fuel Oil
4) Natural Gas, Liquefied Petroleum (LP)Gas
5) HVAC, Snow Melting, Drain, Waste, Vent Piping
6) Re-drawing usage
7) High conductivity use
8) Cable Lugs and Termainals
9) Electric Connectors
10)Lighting industry
Parameter
| Alloy No. | Cu | P | Temper | OD | WT |
| c11000 | 99.9%> | - | O,1/2H,H | 6.35mm-110mm | 0.4-5mm |
| c22000 | 99.9%> | 0.015%-0.04% | O,1/2H,H | 6.35mm-219mm | 0.4-5mm |
Standard complied: ASTM B-280, B88M, EN-1057, GBT-18033, ISO9001, ISO14001
|
Nominal Standard Size inch |
Outside Diameter inch |
Wall thickness and tolerances(inch) |
calculated Weight 1b/ft |
|||||||
|
Type K |
K |
Type L |
L |
Type M |
M |
Type K |
Type L |
Type M |
||
|
WT |
Tolerance |
WT |
Tolerance |
WT |
Tolerance |
|||||
|
1/4" |
0.375 |
0.035 |
0.0035 |
0.030 |
0.003 |
- |
- |
0.145 |
0.126 |
- |
|
3/8" |
0.500 |
0.049 |
0.005 |
0.035 |
0.004 |
0.025 |
0.002 |
0.269 |
0.198 |
0.145 |
|
1/2" |
0.625 |
0.049 |
0.005 |
0.040 |
0.004 |
0.028 |
0.003 |
0.344 |
0.285 |
0.204 |
|
5/8" |
0.750 |
0.049 |
0.005 |
0.042 |
0.004 |
- |
- |
0.418 |
0.362 |
- |
|
3/4" |
0.875 |
0.065 |
0.006 |
0.045 |
0.004 |
0.032 |
0.003 |
0.641 |
0.455 |
0.328 |
|
1" |
1.125 |
0.065 |
0.006 |
0.050 |
0.005 |
0.035 |
0.004 |
0.839 |
0.655 |
0.465 |
|
11/4" |
1.375 |
0.065 |
0.006 |
0.055 |
0.006 |
0.042 |
0.004 |
1.04 |
0.884 |
0.682 |
|
11/2" |
1.625 |
0.072 |
0.007 |
0.060 |
0.006 |
0.049 |
0.005 |
1.36 |
1.14 |
0.940 |
Please send us your message, and we will reply the price and other informations to you within one business day, thanks!
