| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | N08904 1.4539 |
| Minimum Order Quantity: | 0.5-1 tons |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | 15days-> |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 50000tons/year or stocks |
| Standard:: | ASTM, DIN, EN, 904l Pipe | Technics: | Plate, Hot Rolled, Cold Rolled |
|---|---|---|---|
| Types:: | Seamless | Thickness: | 1mm-40mm |
| Outer Diameter: | 6-630mm | Grade: | 300 Series |
| Application: | Industry | FINISH: | NO.1, NO.4, 2B, BA, HL Mirror |
| Corrosion Resistance: | Strong Acid Resistance | ||
| Highlight: | seamless stainless steel tube,stainless steel round tube |
||

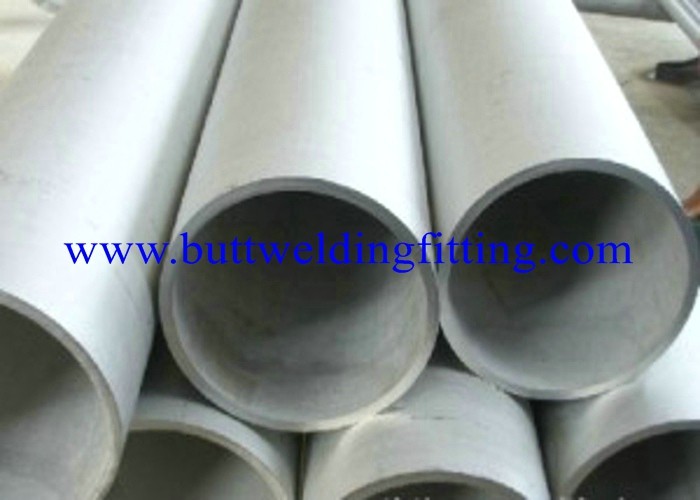

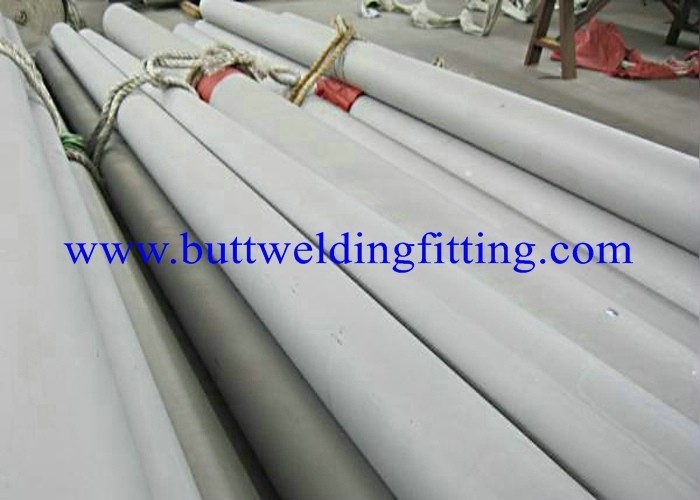

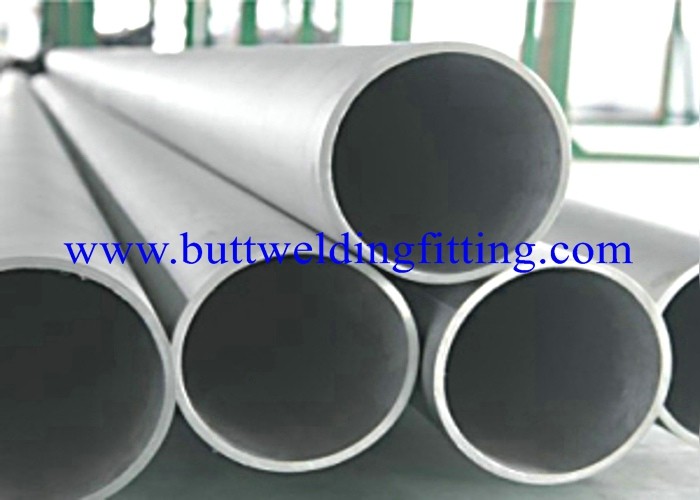

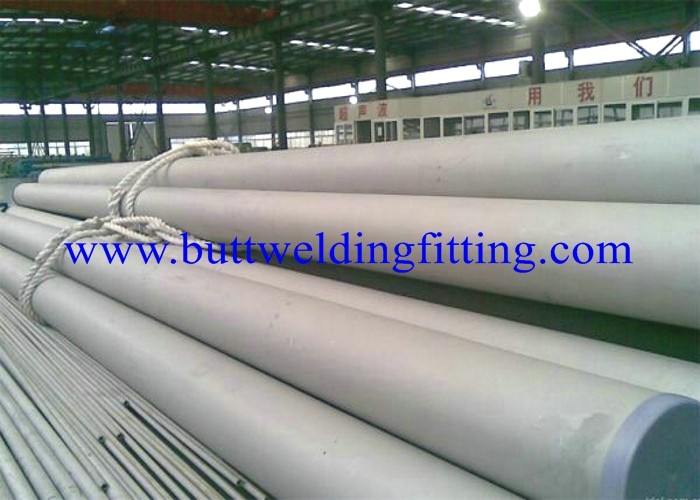

Wholesale 904l Super Duplex Seamless Stainless Steel Pipe N08904 1.4539 Tube
| Standard: |
ASTM, DIN, EN, 904l pipe
|
Place of Origin: |
Shanghai, China (Mainland)
|
Brand Name: |
TOBO
|
| Model Number: |
904L, Wholesale Per kg Price ASME 904l Stainless Steel Coil
|
Type: |
Welded
|
Steel Grade: |
904l pipe
|
| Application: |
Industry
|
Certification: |
ISO
|
Welding Line Type: |
ERW
|
| Thickness: |
1mm-40mm
|
Outer Diameter: |
6-630mm
|
Quality Guanartee: |
1 year quality guanartee
|
| Surface Finish: |
NO.1, NO.4, 2B, BA, HL mirror
|
Treatment: |
Plate, Hot Rolled, Cold Rolled
|
Inner Package: |
Waterproof paper
|
| Outer Package: |
Wooden box, or According to request
|
Customize Order: |
yes, accept
|
In Stock Or Not: |
Yes, In stock
|
| composition: |
1.4539
|
| Packaging Details: | Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel steip or as required 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS |
| Delivery Detail: |
Within 5~15 days after received your deposit |
We have following these specification in stock, which could delivery out within 1-3 days.
If you need custom specification and surface treatment, kind tell us, could custom produced them, take 10-20 days finishing.
The price guanartee is really good.
| D 6x1: diameter 6mm * thickness 1mm | |||
| D 6x1 | D 34x2-8 | D 70x3-10 | D 152x3-20 |
| D 8x2 (gauge12) | D 36x2-8 | D 73x3-10 | D 159x3-25 |
| D 10x1-2 | D 38x2-8 | D 76x2-16 | D 168x3-30 |
| D 12x1-3 | D 40x2-8 | D 80x2-16 | D 180x3-30 |
| D 14x4 (gauge6) | D 42x2-8 | D 83x2-16 | D 219x4-35 |
| D 16x1-4 | D 45x2-8 | D 89x2-16 | D 245x5-35 |
| D 18x1-4 | D 48x2-8 | D 95x2.5-16 | D 273x5-40 |
| D 20x5 (gauge4) | D 50x2-8 | D 102x2.5-18 | D 325x5-40 |
| D 22x1-5 | D 51x2-8 | D 108x2.5-18 | D 355x7-40 |
| D 25x1.5-5 | D 57x10 (gaugeOOO) | D 114x2.5-18 | D 377x8-45 |
| D 27x2-5 | D 60x2-10 | D 120x3-18 | D 426x8-50 |
| D 28x2-5 | D 63x2-10 | D 127x3-18 | D 456x8-50 |
| D 30x8 (gauge0) | D 65x3-10 | D 133x3-18 | D 530x8-50 |
| D 32x2-8 | D 68x3-10 | D 140x3-20 | D 630x10-40 |
Application scope: Petroleum/Power/Chemical use/Construction use /Gas/Mechanism/Shipbuilding
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6.Straightness Test (optional) |
| 7.Roughness Test (optional) |
| 8.Intergranular Corrosion Test(optional) |
| 9.Impact Test (optional) |
| 10.Grain Size Determinations (optional) |
|
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
