| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | N08904 |
| Minimum Order Quantity: | 0.5-1 tons |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | 15days-> |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 50000tons/year or stocks |
| Standard:: | JIS, AISI, ASTM, GB, DIN, EN | Technics: | Hot Rolled, Cold Rolled, Cold Drawn |
|---|---|---|---|
| Types:: | Seamless | Thickness: | 0.5-100mm |
| Outer Diameter: | 6-813mm | Grade: | 300 Series |
| Application: | Fluid Pipe,Structure Pipe,Oil Pipe,,Boiler Tube,Heat Exchanger Tube | FINISH: | Annealed & Pickled, Bright Annealing, Polished |
| Process: | Cold Drawn,Cold Rolled,Precision Cold Rolled | ||
| Highlight: | marine stainless steel tubing,seamless stainless steel tube |
||
Polished Flexible Stainless Steel Tubing NO8904 Ped ISO9001-2008
| Material: |
Stainless
Steel
|
Technics: |
seamless
|
Type:
|
PIPE
|
| Place of Origin: |
Shanghai,
China
(Mainland)
|
Model Number: |
1/2"-26"
(DN15-DN660)
|
Brand Name:
|
TOBO |
| Connection: |
Welding
|
Shape: |
Equal
|
Head Code:
|
round
|
| pickling: |
silver
|
polishing: |
silver
|

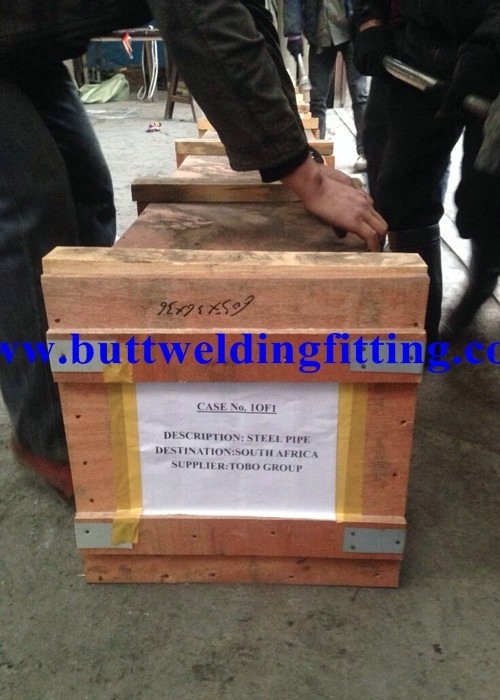

| Packaging Details: | wooden bags/pallets/nylon bags/as the customers' requirments |
| Delivery Detail: | within 20 days/depending on quantity |
1)SS Seamless Pipe
2)Size 1/2"-26"
3)Thickness STD/SCH80/XS
4)Material DIN 17440 1.4404
5)GB/T19001-2008-ISO 9001:2008

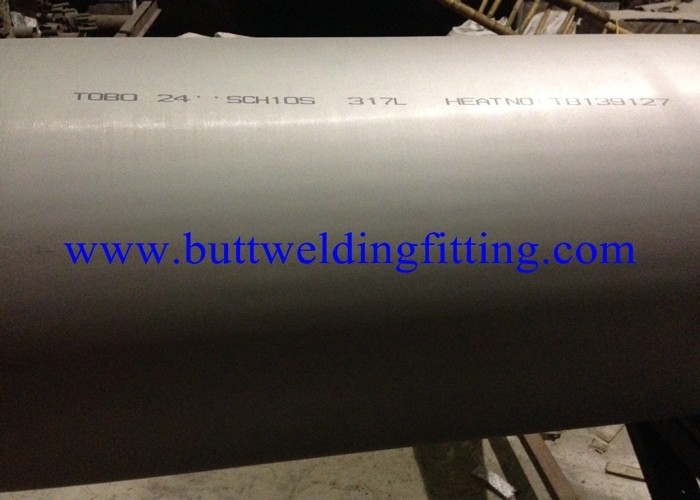

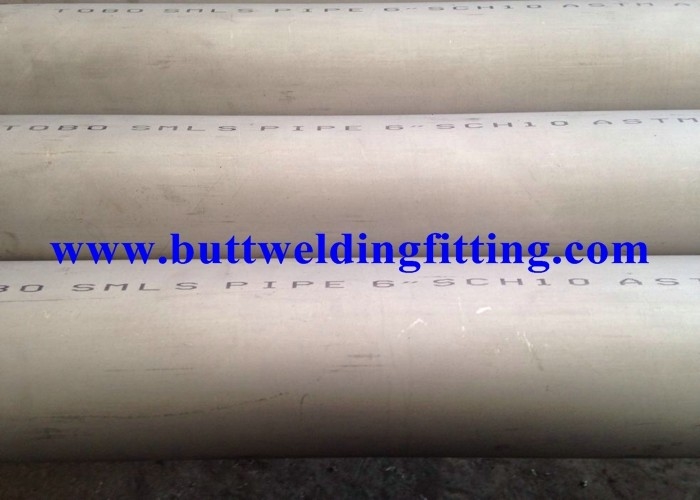

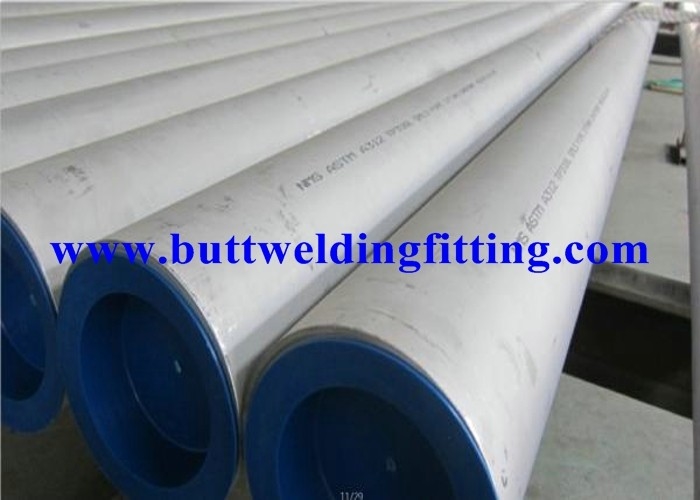

Name: Seamless Pipe
Type: Hot-rolled Seamless Pipe/Cold Drawn Seamless Pipe
Size:1/2"-26"(DN15-DN660)21.3mm-660mm
Wall thickness:SCH5/SCH10/SCH40/SCH80/SCH160/XXS 1.65mm-30.75mm
Standard Material:
Carbon steel :ASTM A106 GR.A/GR.B/GR.C
API 5L GR.A/GR.B/X42/X52/X60/X65/X70/X80
A519 GR.1008-GR.1541
DIN2391 ST35/ST45/ST52 DIN1329 ST37/ST44
BS 6323 LW12b/LW19b JIS-G3444 STK400/STK490/STK500/STK540
Stainless steel:ASTM A269 TP304/TP304L/TP316/TP316L/TP316LN/T321/TP317
ASTM A312 TP201/TP304/TP304L/TP310S/TP310H/TP316/TP316L
ASTM A213 TP201/TP304H/TP304L/TP310S/TP321H/TP316/TP347
904L ASTM A270,ASTM A789,ASTM A268,ASTM A790,ASTM A791,ASTM A803,JIS DIN,BS,
Length range: 5M-12M
Surface treatment:
Carbon Steel:Brush black paint,galvanize,3PE Anticorrosive
Stainless Steel:Annealed and pickled/Brihgt Annealing Or Polish
Application scope: Petroleum/Power/Chemical use/Construction use /Gas/Mechanism/Shipbuilding
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6. Straightness Test (optional) |
| 7. Roughness Test (optional) |
| 8. Intergranular Corrosion Test(optional) |
| 9. Impact Test (optional) |
| 10. Grain Size Determinations (optional) |
|
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
