| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Inconel 625 |
| Minimum Order Quantity: | 1pc |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | Seaworthy wooden cases or pallets tied by steel band or as per client's requirements |
| Delivery Time: | 30 days After Receiving the 30% Prepayment by T/T or LC |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Type: | Threaded Flange | Size: | 1/2''~48'' |
|---|---|---|---|
| Class Rating: | 150#~2500# | Facing: | RF(raised Face);FF(flat Face);RTJ(ring Type Joint);RJ(ring Joint Face) TG(tongue And Groove Face);MFM(male And Female Face) |
| Manufacturing Process: | Push, Press, Forge, Cast, Etc. | Packing: | Wooden Cases, Pallets, Nylon Bags Or According To The Customers' Requirements |
| MOQ: | 1pcs | Delivery Time: | 10-100 Days Depending On Quantity |
| Payment Terms: | L/C,T/T | Shipment: | FOB Tianjin/Shanghai, CFR, CIF Etc |
| Application: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc | Remarks: | Other Materials And Drawings Are Available. |
| Highlight: | Inconel 625 Forged Steel Flanges,48” Forged Steel Flanges,DN15 -1200 Forged Pipe Fittings |
||
Inconel 625 Threaded Forged Steel Flanges 1/2" To 48" DN15 -1200 Forged Pipe Fittings
| Material: |
Inconel 625, etc
|
Technics: |
Forged
|
Type: |
Inconel 625 Threaded Flange
|
| Place of Origin: |
Shanghai, China (Mainland)
|
Head Code: |
Round
|
Brand |
TOBO
|
| Connection: |
Welding
|
Shape: |
Equal
|
|
| Packaging Details: | plywood case or fumigation woodern case |
|---|---|
| Delivery Detail: | 2 - 10 days |
Inconel 625 Threaded Flange
1.Size: ½" to 48"
2.Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, etc
3.Standard: ASME, JIS, DIN, ANSI, etc.
4.Material: Inconel 625, etc

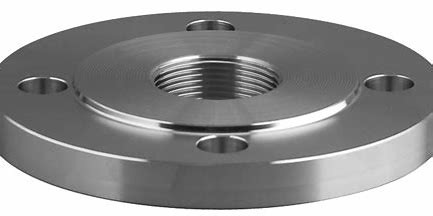

Inconel 625 Threaded Flange is widely demanded as pipe flanges i.e called as threaded pipe flanges used in different industrial applications. They are the special type of pipe flanges which can be attached to the pipe without welding. Threaded flanges are threaded in the bore which match an external thread on the pipe. These threads are tapered in order to create a seal between the threaded flange and the pipe as the tapers approach the same diameter. Sometimes a seal weld is also used together with the threaded connection. They are available in various sizes and materials.
| Type | Inconel 625 Threaded Flange |
| Size | 1/2" To 48" (DN15-1200) |
| Wall thickness |
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, etc
|
| Standards | ASME, ASTM, DIN, JIS, etc |
| Material |
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc Stainless Steel: ASTM A182 F304/304L/316/316L, etc Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc. Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30, etc
|
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| UNS | N06625 |
| Werkstoff Nr. | 2.4856 |
What are the characteristics of Inconel 625?
Chemical Composition, %
| Cr | Ni | Mo | Co + Nb | Ta | Al | Ti | C |
|---|---|---|---|---|---|---|---|
| 20.00-30.00 | Remainder | 8.0-10.0 | 1.0 max | 3.15-4.15 | .40 max | .40 max | .10 max |
| Fe | Mn | Si | P | S | |||
|---|---|---|---|---|---|---|---|
| 5.0 max | .50 max | .50 max | .015 max | .015 max |
| Density | 8.4 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 135,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |
Inconel 625 is a corrosion and oxidation resistant nickel alloy that is used both for its high strength and outstanding aqueous corrosion resistance. Inconel Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. This nickel alloy has excellent weldability and is frequently used to weld AL-6XN.
Inconel 625 Threaded Flange Packing & Shipping
1) Packing Method:
Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps,
pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request .
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
