| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | ASTM A815 |
| Minimum Order Quantity: | 100KGS |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | 15days-> |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM A815 GRADE UNS S32750/ UNS S32760 | Color: | Black，white |
|---|---|---|---|
| Material: | Stainless Steel | Type: | UNS S32750/ UNS S32760 |
| Highlight: | Sch5S Sch160 Seamless Equal Tee,12 Inch Seamless Equal Tee |
||

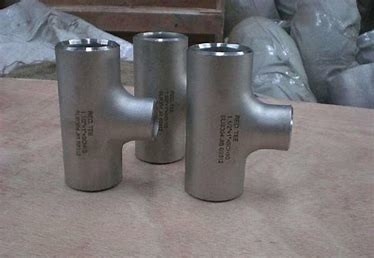

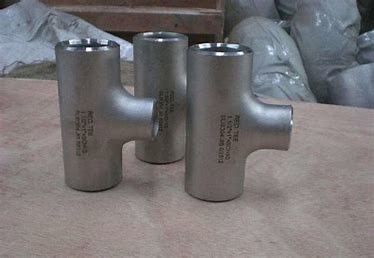

12 Inch Sch5S - Sch160 ASTM A815 UNS S32750 2507 Seamless Equal Tee
| Brand Name: | TOBO |
| Model Number: | ASTM A815 UNS S32750 |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Place of Origin: | China |
| Product Name | Seamless Equal Tee | Product Type | Seamless Equal Tee |
| Size | 1-48 inch | DN15-DN1200 | 15-1200 |
| Material Grade | ASTM A815 UNS S32750 | Type | Seamless or weld |
| Standard | ASTM A815 | Standard | DIN,EN,ASTM,BS,JIS,GB,etc. |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc | ||
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 3,0000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | Seaworthy plywood cases or pallets |
Specifications
· Technics: Cold Forming
· Type: 2507 Seamless Equal Tee
· Place of Origin: China
· Brand Name: TOBO GROUP
· Connection: Welding
· Shape: Equal
· Head Code: Round
· Standards: ASTM A815, etc
· Surface Treatment: Sand Rolling, Sand Blasting
· Material: Super Duplex Stainless Steel 2507 (F53 / 1.4410 / UNS S32750)
Specifications
ASTM A815 UNS S32750 2507 Seamless Equal Tee
1. Size: 12 inch(DN300)
WT: Sch40S
2. Material: Super Duplex Stainless Steel 2507 (F53 / 1.4410 / UNS S32750)
3. High quality, competitive price.
Base on excellente quality, satisfactory service and reasonable prcie, yaang's products have exported to USA, Russia, Korea, Brazil, Chile, Peru and MId East, etc.
Super Duplex 2507 (F53 / 1.4410 / UNS S32750) has excellent corrosion resistance to a wide variety of media, with outstanding resistance to pitting and crevice corrosion in seawater and other chloride containing environments, with Critical Pitting Temperature exceeding 50°C.UNS S32750 (F53 / 1.4410 / Alloy 2507) exhibits a low coefficient of thermal expansion and higher heat conductivity than austenitic steels and is suitable for working temperatures up to 300°C.
| Grade | Chemistry (Typical Values) | Mechanicals | |||||||||||||||||
| Specification | Cr | Ni | Mo | Cu | N | W | Si | Mn | P max | S max | C max | Fe | UTS N/mm² (min) | 0.20% Proof (min) | Elong % (min) | Hardness HB (max) | PREN | ||
| 2507 | 25.0 | 7.0 | 3.8 | 0.75 | 0.25 | 0.28 | 0.80 | 1.20 | 0.035 | 0.020 | 0.030 | Bal | 750 | 500-550 | 25 | 270 | 41 | ||
| Type | 2507 Seamless Equal Tee | ||||||||||||||||||
| Size | Seamless 1/2" To 48" Welded To 72" | ||||||||||||||||||
| Wall thickness | Sch5S-Sch160, XS,XXS | ||||||||||||||||||
| Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc | ||||||||||||||||||
| Material | Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, etc | ||||||||||||||||||
| Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. | ||||||||||||||||||
| Packing | wooden case, pallet or as customers’ requirement | ||||||||||||||||||
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc | ||||||||||||||||||
What is a equal tee
A equal tee is the most common pipe fitting. It is used to either combine or split a fluid flow. It is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. A tee is used for connecting pipes of different diameters or for changing the direction of pipe runs. They are made of various materials and available in various sizes and finishes. They are extensively used in pipeline networks to transport two-phase fluid mixtures.
When we call a steel tee “equal tee”, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. When we see only one size of tee in its description, it means this tee is the equal tee. for example, 8″ Tee mean the tee main pipe and branch pipe both are 8 inches. Sometimes the equal tee also described 8″X8″ which is the same meaning of 8″ tee.
APPLICATIONS:
1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce pipes with special specifications according to customers’ requirements;
Welcome to contact us!
