| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Forged Steel Flange |
| Minimum Order Quantity: | 0.5-1 tons |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | According to the qty |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 6000TONS/MONTH |
| Material: | Alloy 31 | Product Name: | Flange |
|---|---|---|---|
| Standard Or Nonstandard: | ASME B16.5 | Application: | Gas, Petroleum, Auto Parts, Concrete Pump, Water |

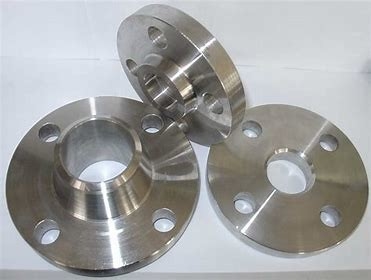

| Type: | Welding Neck Flange | Pressure: | Class150,150#-2500#,5K-30K |
| Color: | Customer Required,Natural,Primary | Keyword: | Steel,A105,NPT Threaded Blind Flange,weld Neck Flange Ansi 150 Rf,Titanium |
| Highlight: | Stainless Steel Forged Welded Neck Flanges,Carbon Forged Welded Neck Flanges |
||
| WEIGHT% | C | SI | MN | S | P | CR | NI | MO | N | CU |
| MIN. | 26,0 | 30,0 | 6,0 | 0,15 | 1,0 | |||||
| MAX. | 0,015 | 0,3 | 2,00 | 0,010 | 0,020 | 28,0 | 32,0 | 7,0 | 0,25 | 1,4 |
PREN = (CR% + 3.3MO% + 16N%) ≥ 48
PRODUCT STANDARDS: ASTM B625 – 14
APPROVALS: FOR USAGE IN PRESSURE VESSELS WITH WALL TEMPERATURES BETWEEN -196°C TO 550°C
| Product Form | |||||
| ASME B16.5 N08031 flange | Size:1/2″-24″ Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| ASME B16.47 N08031 flange | Size:26″-48″ Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| ASME B16.48 N08031 flange | Size:1/2″-24″ Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| MSS SP-44 N08031 flange | Size:12″-60″ Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
