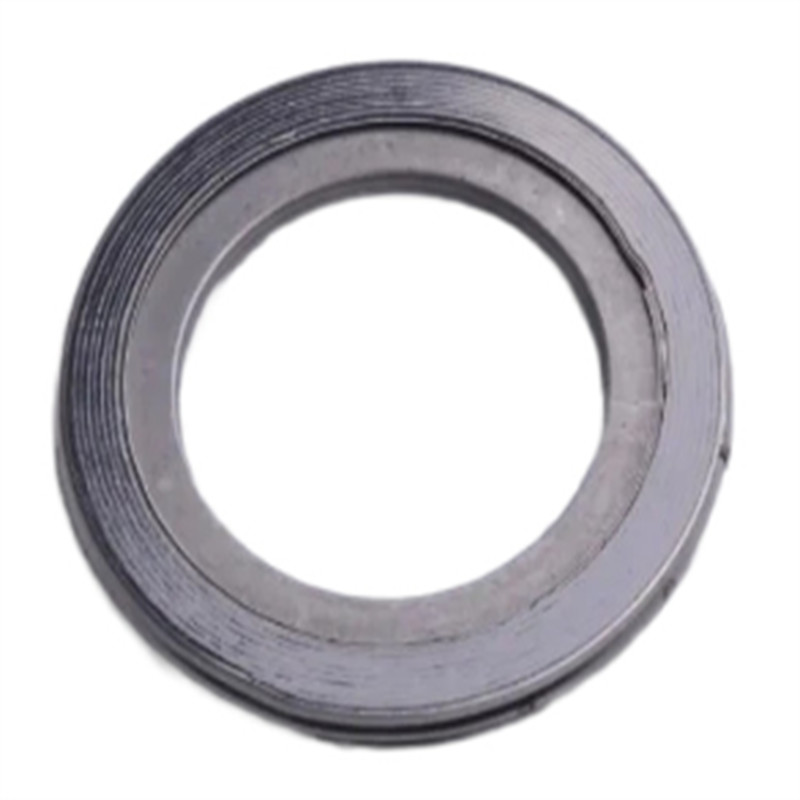

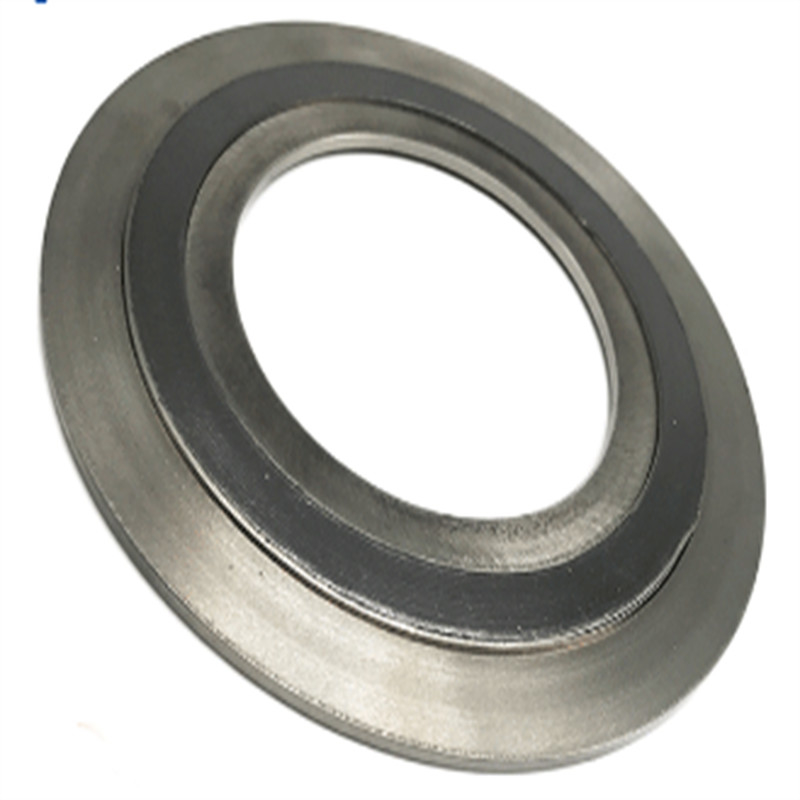

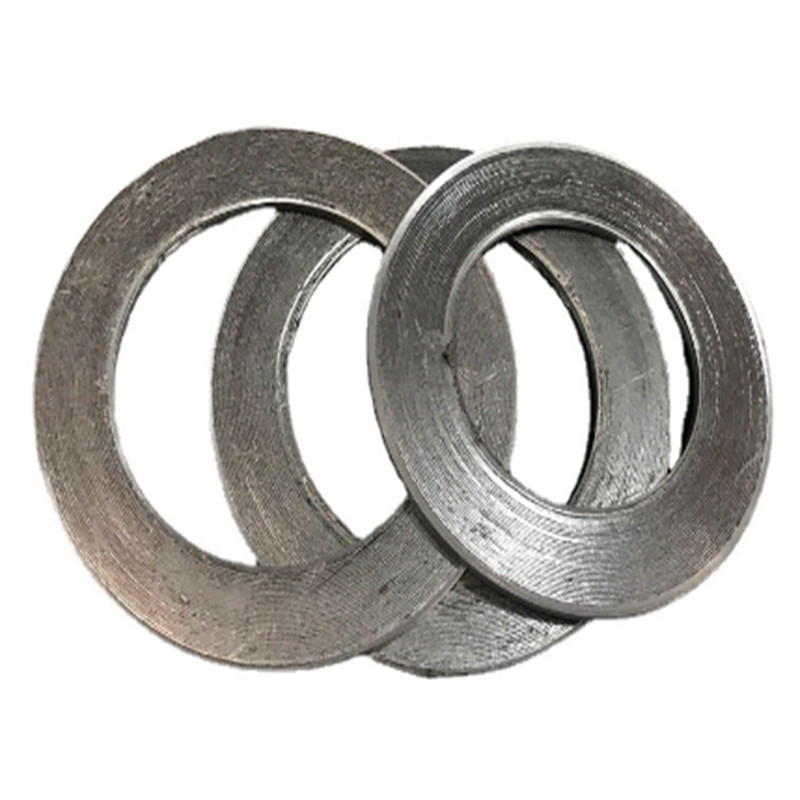

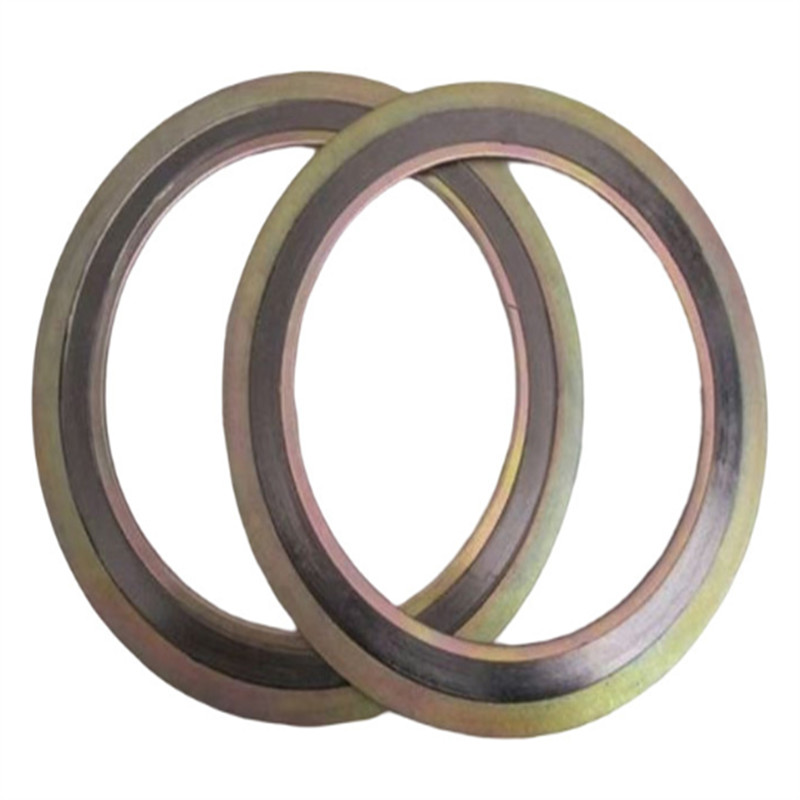

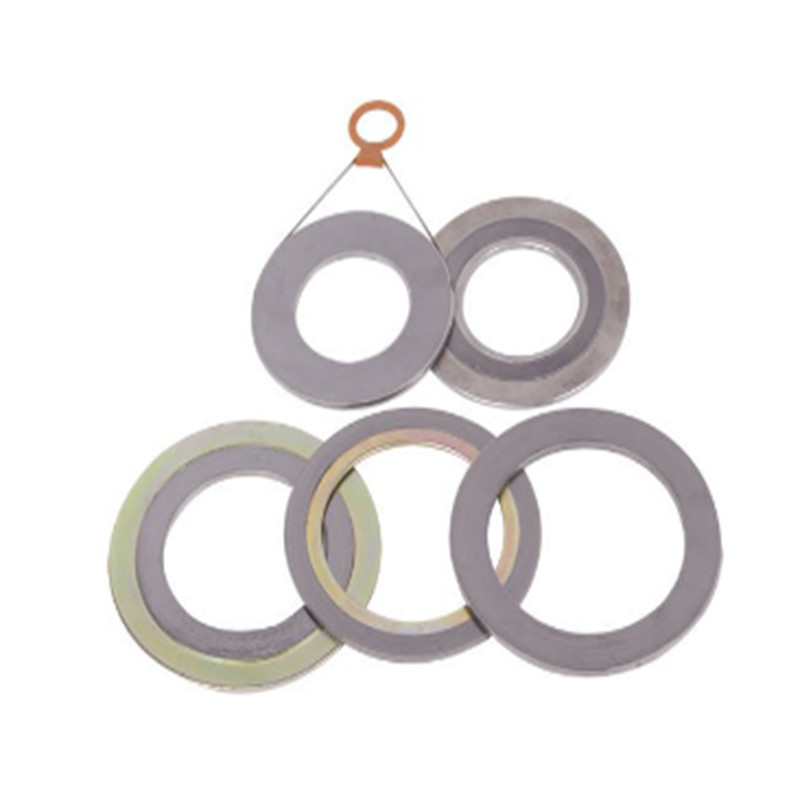

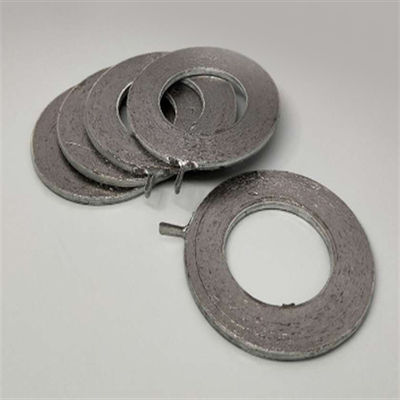

4-1/2 outerDiameter Helical-formed Gasket with 1/8 thickness for extreme temperatures

Product Description:

The Spiral Wound Gasket is a type of mechanical seal used to prevent leakage and provide a tight seal in high temperature and high pressure applications. It is a highly versatile and reliable sealing solution that is commonly used in various industries such as oil and gas, chemical processing, and power generation.

• Helical-formed Gasket: The Spiral Wound Gasket is also known as a helical-formed gasket due to its unique spiral design. This design allows for better flexibility and compression, making it suitable for uneven or damaged flanges.
• V-shaped Winding: The gasket is made up of a V-shaped winding of a metal strip and a filler material, typically graphite or PTFE. This design ensures a tight seal and excellent resistance to pressure and temperature changes.
• Excellent Chemical Resistance: The filler material used in the gasket provides excellent chemical resistance, making it suitable for use in a wide range of corrosive environments.
• High Temperature: The Spiral Wound Gasket can withstand high temperatures up to 1200°F, making it an ideal choice for applications that involve extreme heat.
• High Pressure: With a maximum pressure rating of 3000 Psi, this gasket can effectively seal high-pressure systems and prevent leakage.
• Superior Sealing Performance: The combination of the V-shaped winding and the filler material results in superior sealing performance, providing a reliable and long-lasting seal even in the most demanding conditions.

• Thickness: The standard thickness of the Spiral Wound Gasket is 1/8 inch, but custom thicknesses can also be provided based on specific requirements.
• Tear Resistance: The gasket offers excellent tear resistance, ensuring that it can withstand high levels of stress and movement without compromising its sealing capabilities.
• Tensile Strength: With a tensile strength of 515 MPa, this gasket is highly durable and can withstand high levels of tension and pressure.

In conclusion, the Spiral Wound Gasket is a highly versatile sealing solution that offers excellent chemical resistance, high temperature and pressure capabilities, and superior sealing performance. Its unique helical-formed design and advanced materials make it a reliable choice for a wide range of industrial applications.

Features:

• Product Name: Spiral Wound Gasket
• Corrosion Resistance: Excellent
• Pressure: 3000 Psi
• Density: 8.89 G/cm3
• Inner Diameter: 2-3/4
• Style: Spiral Wound Gasket
• Key Features:
  • Helical-wound Gasket design for secure and leak-proof sealing
  • Constructed with metallic and non-metallic materials for versatile applications
  • Excellent resistance to corrosion for long-lasting performance
  • Can withstand high temperatures and pressures up to 3000 Psi
  • Density of 8.89 G/cm3 for strong and durable sealing
  • Available in various inner diameter sizes, including 2-3/4 inches
  • Spiral-wrapped design for easy installation and removal

Technical Parameters:

Applications:

Spiral Wound Gasket, also known as Helical-wound Gasket or Spiral-wrapped Gasket, is a type of sealing gasket that is widely used in various industrial applications. It is designed to provide a reliable and leak-free seal in high-pressure and high-temperature environments. The TOBO #0001 model, manufactured in China, is a top-quality Spiral Wound Gasket that offers excellent performance and durability.

• Brand Name: TOBO
• Model Number: #0001
• Place of Origin: China
• Tear Resistance: Excellent
• Tensile Strength: 515 MPa
• Corrosion Resistance: Excellent
• Pressure: 3000 Psi
• Style: Spiral Wound Gasket

The Spiral Wound Gasket is widely used in industries such as oil and gas, chemical, power generation, and petrochemical. Its excellent tear resistance, tensile strength, and corrosion resistance make it suitable for various applications, including:

• Flange Connections: The Spiral Wound Gasket is commonly used in flange connections to provide a tight seal and prevent leakage in pipelines, valves, and pumps.
• Heat Exchangers: This gasket is ideal for use in heat exchangers, as it can withstand high temperatures and pressures, and effectively seal the joints.
• Boilers: In the boiler industry, the Spiral Wound Gasket is used in various parts, including manhole covers, handholes, and tube covers, to ensure a secure and leak-free seal.
• Chemical Processing: With its excellent chemical resistance, this gasket is commonly used in chemical processing equipment, such as reactors, pumps, and valves.
• Pipelines: The Spiral Wound Gasket is also widely used in pipelines for oil, gas, and water transportation, where it can withstand high pressures and prevent leakage.

The TOBO #0001 model is suitable for both standard and customized applications, and can be used in various scenarios, including:

• High-Pressure Environments: With a pressure rating of 3000 Psi, this gasket is an excellent choice for sealing joints in high-pressure environments.
• High-Temperature Environments: The Spiral Wound Gasket can withstand temperatures up to 1000°C, making it suitable for use in applications with extreme heat.
• Harsh Chemical Environments: Its excellent corrosion resistance makes it ideal for use in harsh chemical environments, where other gasket materials may fail.
• Heavy-Duty Equipment: This gasket is commonly used in heavy-duty equipment, such as turbines, compressors, and engines, where it can withstand high pressures and temperatures.

Overall, the Spiral Wound Gasket is a versatile and reliable sealing solution that is essential for maintaining the integrity and ety of industrial equipment and processes. With its top-quality design and excellent performance, the TOBO #0001 model is a trusted choice for various applications and scenarios.

Customization:

Brand Name: TOBO

Model Number: #0001

Place of Origin: China

Hardness: 90 HRB

Density: 8.89 G/cm3

Thickness: 1/8

Outer Diameter: 4-1/2

Temperature: 1200°F

Product Description:

The Spiral Wound Gasket #0001 from TOBO is a high-quality, customized solution for your sealing needs. This helical-formed gasket is spiral-wrapped and helical-wound to provide a strong and reliable seal for your applications. Made in China, it has a hardness of 90 HRB and a density of 8.89 G/cm3, making it durable and long-lasting. The gasket has a thickness of 1/8 and an outer diameter of 4-1/2, making it suitable for various industrial uses. With a temperature resistance of up to 1200°F, this gasket is perfect for high-temperature applications.

Packing and Shipping:

Our spiral wound gaskets are carefully packaged to ensure e and secure delivery to our customers. Each gasket is individually wrapped with protective material and placed in a sturdy cardboard box. The box is then sealed with tape to prevent any damage during transit.

For bulk orders, the gaskets are stacked and placed in wooden crates for added protection. The crates are then secured with straps to prevent shifting during transportation.

Our gaskets are shipped using reliable and reputable carriers to ensure timely delivery. We also offer options for expedited shipping for urgent orders.

Upon delivery, customers should inspect the package for any damage or defects. If there are any issues, please contact us immediately for assistance.

We take great care in packaging and shipping our spiral wound gaskets to ensure they arrive in perfect condition for our customers to use.
