| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | TOBO069 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | In wooden case, pallets or as per customers’ requirement |
| Delivery Time: | 15 working days |
| Supply Ability: | 100000PCS/MONTH |
| Product Name: | Elbow | Material: | ASTM A182 F304 |
|---|---|---|---|
| Size: | 3/4" | Technics: | Forged |
| Wall Thickness: | SCH40s | MOQ: | 1PCS |
| Main Market: | North America, South America, Western Europe, Eastern Europe, Middle East, Worldwide | Business Type: | Manufacturer |
| Highlight: | F304 Forged Threaded Elbow,90 Degree Forged Threaded Elbow,Threaded Forged Pipe Elbow |
||

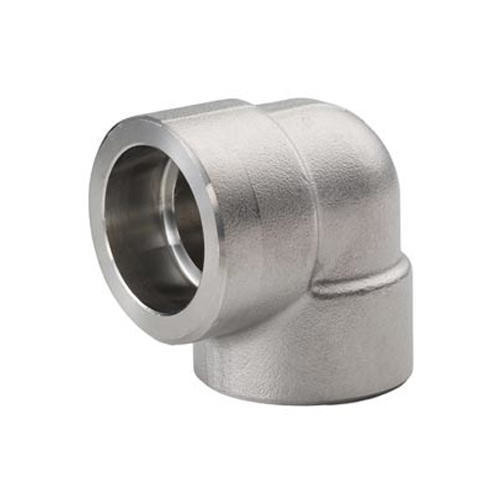

3000# ASTM A182 F304 90° Forged Threaded Elbow 3/4" For Machinery
Detailed Product Description
| Standard | ASME/ANSI B16.9 |
| Size | 1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Wall thickness | Sch5~Sch160XXS |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
| PRODUCTS | forged steel elbow, forged steel ASTM A105 elbow, Forged Steel ASTM A182 F1/F5/F9/F11/F12/F22/F91 SW Elbow, Forged Steel ASTM A694 F42/F46/F52/F60/F65/F70/F80 SW Elbow, forged steel socket weld(SW) elbow, forged steel ASTM A105 socket weld(SW) elbow, forged socket weld(SW) elbow,forged high pressure elbow... |
| SIZE | NPS1/2”-8”(DN15-200) |
| PRESSURE | SCH80/SCH160, 2000#/3000#/6000#/9000#..... |
| MATERIAL | carbon steel: SS400,A105…… |
| alloy steel: ASTM A694 F42,F46, F52, F56, F60, F65, F70, A350 LF2 , ASTMA182 F1, F5, F9, F11, F12, F22, F91…… | |
| stainless steel: ASTM A182 F304/304L, F316/F316L, F321, F347….. | |
| STANDARD | ANSI B16.11/MSS SP97/MSS SP95/MSS SP83/JIS 2316/GB-T14383/GB-T14626 etc. |
| we can also produce according to drawing by customers. |
Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings
| TYPE |
A:ELBOW,TEE,COUPLING,HALCOUPLING,CAP,PLUG,BUSHING,UNION, OUTLET,SWAGE NIPPLE,BULL PLUG,REDUCER INSERT AND HEX NIPPLE,STREET ELBOWS,BOSS...ETC. |
| B:SOCKET-WELD,THREADED(NPT or PT TYPE),BUTT-WELDING, | |
| SIZE | NPS 1/8"-4"; DN6-100 |
| RATING | PRESSURE:THREADED END -2000/3000/6000LBS. |
| SOCKET-WELD END -3000/6000/9000/LBS. | |
| BUTT WELD END -SCH40/SCH80/SCH160/XXS. | |
|
SPECIFICATIONS STANDARD |
A.DIM.SPEC.:ASME B16.11-2009(REVISION OF ASME B16.11-2005); MSS SP- 79,83,95,97and BS3799. |
|
B.ASTM A105,A350 LF2,A106,A312,A234,A403,ASTM A182(F304, F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,91). |
|
| C.SIZE of RAW MATERIAL:DIA.19-85MM ROUND BAR. | |
| MARKING | A.CARBON and ALLOY STEEL:MARKED BY STAMPING. |
|
B.STAINLESS STEEL:MARKED BY ELECTRO-ETCHED,JET PRINTED or STAMPING. |
|
| C.3/8"UNDER:BRAND ONLY. | |
|
D.1/2"to 4":MARKED WITH BRAND,MATERIAL,HEAD CODE, B16(FOR ASME B16.11PRODUCT),RATING AND SIZE. |
|
| E:AS THE REQUIREMENT of CUSTOMER. | |
| PACING | IN WOODEN CASES or PALLETS,or AS PER CLIENTS’ REQUIREMENTS. |
| APPLICATION |
PETROLEUM,CHEMICAL,MACHINERY,ELECTRIC POWER,SHIPBULING, CONSTRUCTION,ECT. |
| Special design available as the requirement of customer | |
