| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | Customized logo |
| Model Number: | available on request |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Delivery Time: | 5-8 WORK DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 |
| Application: | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc | Certificate: | ISO, SGS, BV, Etc |
|---|---|---|---|
| Ends: | Beveled, Plain, Threaded, Flange, Etc | Heat Treatment: | Annealing, Normalizing, Quenching, Etc |
| Length: | Customized | Material: | Nickel Alloy |
| Outer Diameter: | Customized | Package: | Standard Export Package Or Customized |
| Shape: | Pipe | Standard: | ASTM, ASME, DIN, JIS, ISO, GB, GOST, BS, Etc |
| Surface Treatment: | Polished, Sand Blasting, Anodizing, Etc | Test: | UT, ET, HT, RT, Etc |
| Wall Thickness: | Customized |

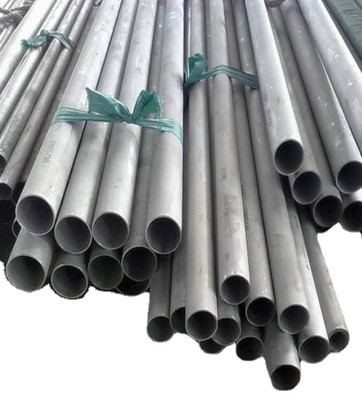

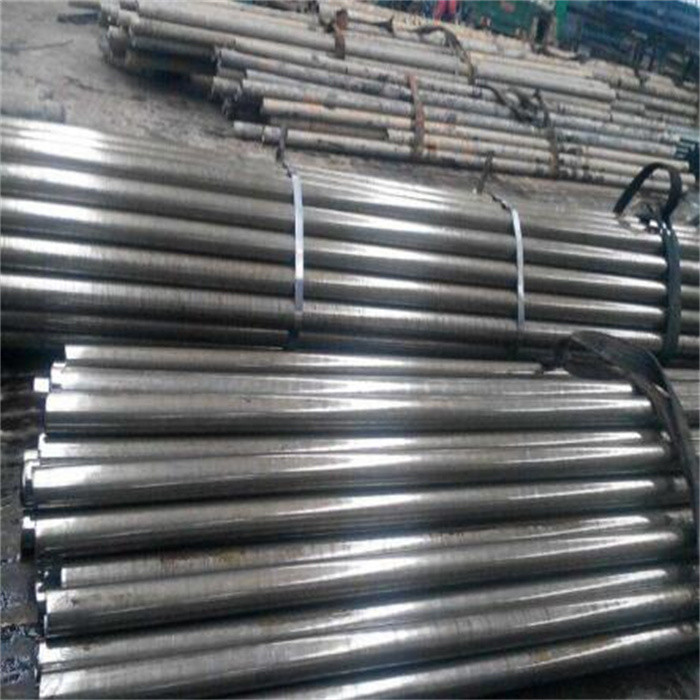

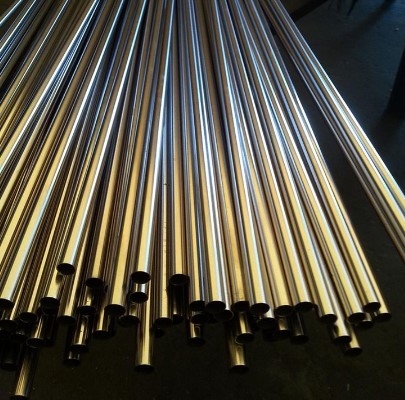

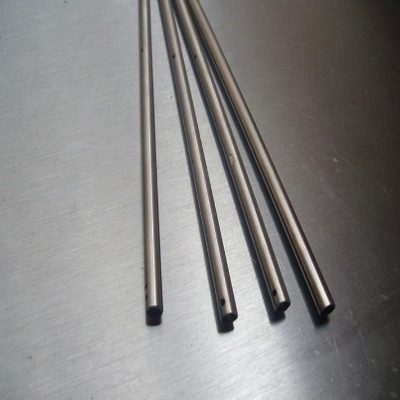

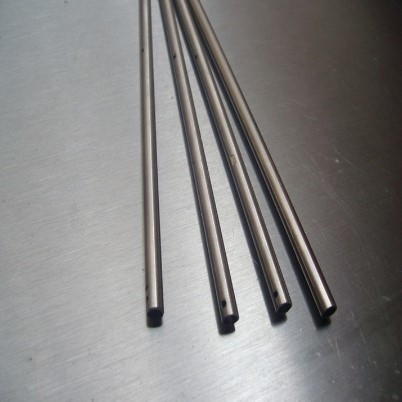

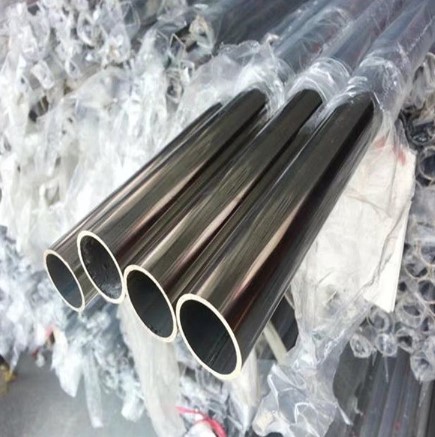

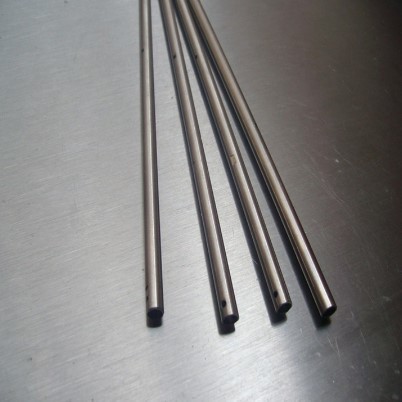

ASTM B622 / Alloy C2000 / UNS N06200 Nickel Alloy Seamless Pipe MT23
Inconel 600
Inconel 600 is a nonmagnetic nickel-chromium alloy with excellent resistance to oxidation and other forms of high temperature corrosion. This alloy also has excellent mechanical properties and presents desirable combination of high strength and good workability. Used for furnace and chemical-treatment components, in food processing, in nuclear engineering, and for engine and airframe components.
Chemical Composition
| Grade | Ni% | Mn% | Fe% | Si% | Cr% | C% | Cu% | S% |
| Alloy 600 | Min 72.0 | Max 1.0 | 6.0-10.0 | Max 0.50 | 14-17 | Max 0.15 | Max 0.50 | Max 0.015 |
Specifications
| Grade | British Standard | Werkstoff Nr. | UNS |
| Alloy 600 | BS 3075 (NA14) | 2.4816 | N06600 |
strongPhysical Properties
| Grade | Density | Melting Point |
| Alloy 600 | 8.47 g/cm3 | 1370°C-1413 °C |
Mechanical Properties
| Alloy State | Tensile Strength | Yield Strength | Elongation | Brinell Hardness (HB) |
| Annealing Treatment | 550 N/mm² | 240 N/mm² | 30% | ≤195 |
| Solution Treatment | 500 N/mm² | 180 N/mm² | 35% | ≤185 |
Welding of Inconel 600
Any traditional welding procedures can be used to weld Inconel 600 to similar alloys or other metals. Before welding, preheating is needed and also any stain, dust or mark should be cleared by steel wire brush. About 25mm width to welding edge of base metal should be polished to bright.
Recommend filler wire regarding welding Inconel 600: ENiCr-3
