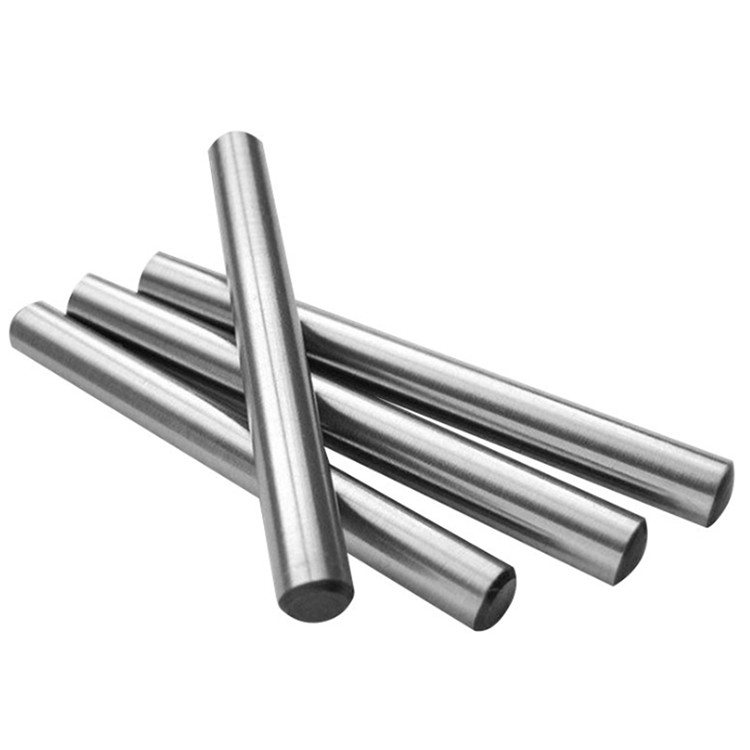

Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg

Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg
Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: 15days->
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Get Best Price Contact Now
Standard:: DIN, ANSI, ISO, GB, JIS Application: Fluid Pipe,Structure Pipe
Surface: Annealed & Pickled, Bright Annealing, Polished Types:: Seamless
Thickness: 0.5-100mm Outer Diameter: 6-813mm
Material: Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Sample: Provided,Free,Available Free Within 7days
Highlight:

Inconel 625 Steel Round Bar

,

Nickel Alloy Round Rod

,

Seamless Steel Round Bar

Inconel 625 N06625 2.4856 nickel based alloy 625 round rod bar price per kg

Overview
Quick Details
Place of Origin:
Shanghai,China
Type:
Nickel Bar
Application:
Industry
Grade:
Nickel
Ni (Min):
72%
Resistance (μΩ.m):
1.5
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
730
Elongation (≥ %):
30
Model Number:
inconel 600
Size:
Customized Size








Supply Ability
Supply Ability
100000 Kilogram/Kilograms per Month
Packaging & Delivery
Packaging Details
customization
Port
shanghai port
Lead Time:
Quantity(kilograms) 1 - 1 >1
Est. Time(days) 14 To be negotiated

Products Description

Inconel 625

INCONEL® nickel-chromium alloy 625 (UNS N06625/W.Nr. 2.4856) is used for its high strength,excellent fabricability (including joining), and outstanding corrosion resistance. Service temperatures range from cryogenic to 1800°F (982°C). Composition is shown in Table 1.
Strength of INCONEL alloy 625 is derived from the stiffening effect of molybdenum and niobium on its nickel-chromium matrix; thus precipitationhardening treatments are not required. This combination of elements also is responsible for superior resistance to a wide range of corrosive environments of unusual severity as well as to high-temperature effects such as oxidation and carburization.

Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg 0Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg 1

Performance introduction
Chemical composition
Nickel…………………………………………….…………58.0 min. Chromium………………………………………..…………20.0-23.0
Iron………………………………………………..………….5.0 max. Molybdenum……………………………….……...…………8.0-10.0
Niobium (plus Tantalum)………………………..3.15-4.15 Carbon……………………………………………..……….0.10 max.
Manganese………………………………………....….0.50 max. Silicon……………………………….…………...…………0.50 max.
Phosphorus……………………………………….…….0.015 max. Sulfur…………………………………..……….…..……..0.015 max.
Aluminum…………………………………………………..0.40 max. Titanium……………………………….……………………0.40 max.
Cobalta ……………………………………………………….1.0 max.

Physical Constants


Density, lb/cu in
0.305
gram/cc
8.44
Melting Range, °F
2350-2460°C…………………………………………1290-1350
Specific Heata , Btu/lb°F (J/kg°C)
0°F (-18°C)………………………………0.096 (402)
70°F (21°)………………………………..0.098(410)
200°F (93°C)……………..………………0.102 (427)
400°F (204°C)……………………………0.109 (456)
600°F (316°C)…………………...……….0.115 (481)
800°F(427°C)…………………...……….0.122 (511)
1000°F (538°C)…………..………………0.128 (536)
1200°F (649°C)…………………………..0.135 (565)
1400°F(760°C)…………………………..0.141 (590)
1600°F (871°C)……………..……………0.148 (620)
1800°F (982°C)…………………….…….0.154 (645)
2000°F(1093°C)…………………..……..0.160 (670)
Permeability at 200 Oersted (15.9 kA/m)…………….………..1.0006
Curie Temperature,°F…………………………...……………...<-320 °C……………………….…………………..-196
Nominal Room-Temperature Mechanical-Property Ranges
Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg 2
Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg 3
Inconel 625 N06625 2.4856 Nickel Based Alloy 625 Round Rod Bar Price Per Kg 4





FAQ



Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
