TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | API 5L X65 |
| Minimum Order Quantity: | 300 Kilogram/Kilograms |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | in bundle or according to your requirement |
| Delivery Time: | within 30 days after receive the prepayment by TT or L/C |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Product Name: | API 5L X65 | Product Type: | Seamless Carbon Steel Pipe |
|---|---|---|---|
| Outer Diameter:: | 4" | Wall Thickness: | SCH40 |
| Application: | Gas Pipe | Standard: | API, ASTM, API 5L, ASTM A106-2006, ASTM A179-1990, ASTM A53-2007 |
| Material: | API 5L X65 | Technical: | Cold Rolled, Cold Drawn |
| Highlight: | API Seamless Carbon Steel Pipe,Gas Carbon Steel Seamless Tube,Seamless Steel ERW Pipe |
||
API 5L Grade B, X42, X46, X56, X60, X70, X80 Carbon Steel Seamless Pipe
Dimensions :
All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API.
API 5L Carbon Steel Seamless Pipes Types
Are you looking for Prime quality & High Grade API 5L Grade B Seamless or welded Pipe for offshore or onshore , Philips Metal Industries is one of most trusted Manufacturer,Suppliers & exporters of API 5L Seamless Line Pipe since 1980, Philips Metal Industries has received best exports award in 2008 & Government Recognised Star export House,Philips Metal Industries is approved suppliers of API 5l Seamless Line Pipes & API 5L grade B pipe in GASCO,KNPC & SAUDI ARAMCO,certificates can be provided on request to our customers.
The American Petroleum Institute specification API 5L covers seamless and welded steel line pipe. API Line pipe is best & economical piping solution for transportation of gas, water, and oil. The technical committee made recognized that there are two basic Product Specifications Levels (PSL) of technical requirements and therefore developed PSL 1 and PSL 2. PSL 1 is a standard quality for line pipe where PSL 2 contains additional chemical, mechanical properties, and testing requirements. We carry API 5L Grade B Pipein API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL2.
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
Additional Testing :
NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Chemical CompositionAPI 5L PipesGrade B, X-42, X-46, X-52, X-56, X-60, X-65, X-70, X-80 in PSL1 Line Pipe
| PSL 1 | |||||||||
| GRADE | Chemical Composition | Mechanical Property | |||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
| A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
| CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
| A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 331 | 30 | 207 | |
| B | 0.26 | 1.20 | 0.030 | 0.030 | 60 | 414 | 35 | 241 | |
| X42 | 0.26 | 1.30 | 0.030 | 0.030 | 60 | 414 | 42 | 290 | |
| X46 | 0.26 | 1.40 | 0.030 | 0.030 | 63 | 434 | 46 | 317 | |
| X52 | 0.26 | 1.40 | 0.030 | 0.030 | 66 | 455 | 52 | 359 | |
| X56 | 0.26 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 386 | |
| X60 | 0.26 | 1.40 | 0.030 | 0.030 | 75 | 517 | 60 | 414 | |
| X65 | 0.26 | 1.45 | 0.030 | 0.030 | 77 | 531 | 65 | 448 | |
| X70 | 0.26 | 1.65 | 0.030 | 0.030 | 82 | 565 | 70 | 483 | |
Chemical CompositionAPI 5L PipesGrade B, X-42, X-46, X-52, X-56, X-60, X-65, X-70, X-80 in PSL2 Line Pipe
| PSL 2 | ||||||||||||
| GRADE | Chemical Composition | Mechanical Property | ||||||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | Tensile | Yield | C. E. IMPACT ENERGY | ||||||
| Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
| B | 0.22 | 1.20 | 0.025 | 0.015 | 60 – 110 | 414 – 758 | 35 – 65 | 241 – 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 – 110 | 414 – 758 | 42 – 72 | 290 – 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 – 110 | 434 – 758 | 46 – 76 | 317 – 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 – 110 | 455 – 758 | 52 – 77 | 359 – 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 – 110 | 490 – 758 | 56 – 79 | 386 – 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 – 110 | 517 – 758 | 60 – 82 | 414 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 – 110 | 531 – 758 | 65 – 82 | 448 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 – 110 | 565 – 758 | 70 – 82 | 483 – 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 – 120 | 621 – 827 | 80 – 102 | 552 – 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
API 5L Grade B Line Pipe Physical Properties
Line pipe grade designations come from API Spec 5L Specification for Line Pipe. Standard Line Pipe has grade designation A and B. Stronger grades have the designation X followed by the specified minimum yield strength of the pipe steel, measured in kilopounds per square inch (abbreviated ksi), e.g. X60 for pipe having a minimum yield strength of 60 ksi. See the table below for the standard available grades.
Line Pipe Physical Properties
| API 5L Grade | Yield Strengthmin.(ksi) | Tensile Strengthmin.(ksi) | Yield to Tensile Ratio(max.) | Elongationmin.%1 |
| A | 30 | 48 | 0.93 | 28 |
| B | 35 | 60 | 0.93 | 23 |
| X42 | 42 | 60 | 0.93 | 23 |
| X46 | 46 | 63 | 0.93 | 22 |
| X52 | 52 | 66 | 0.93 | 21 |
| X56 | 56 | 71 | 0.93 | 19 |
| X60 | 60 | 75 | 0.93 | 19 |
| X65 | 65 | 77 | 0.93 | 18 |
| X70 | 70 | 82 | 0.93 | 17 |
| X80 | 80 | 90 | 0.93 | 16 |

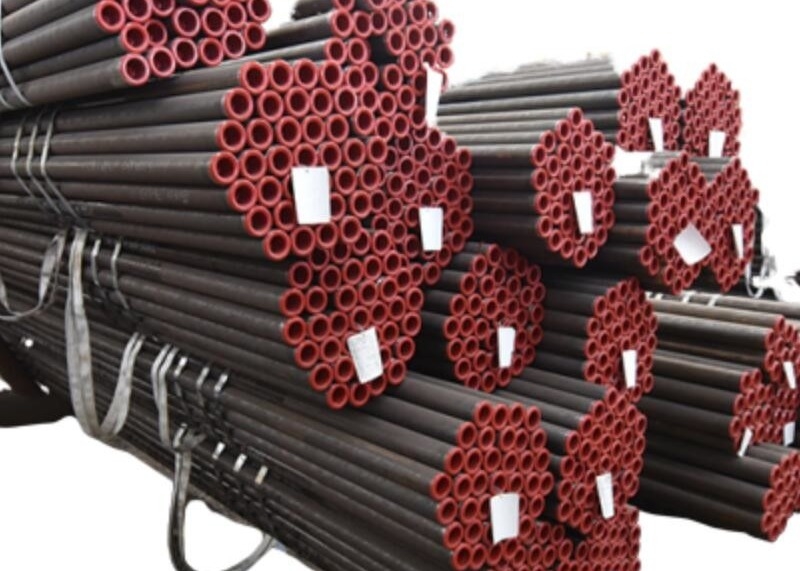

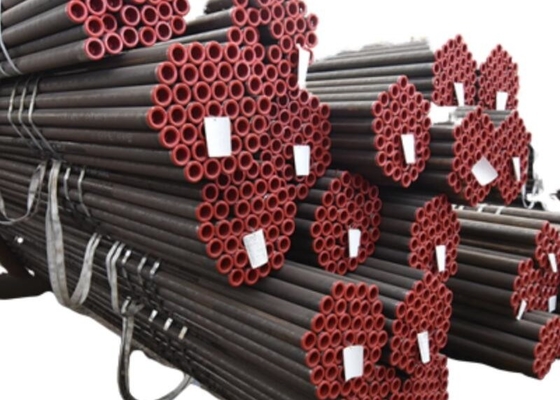

API 5L Grade B, x42,x46,x52,X56,x56,x60,x70 Carbon Steel Seamless Pipe is sleeved into plastic bag individually, pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
Difference Between PSL 1 and PSL 2of API 5L Grade-B, X-42, X-46, X-52, X-56, X-60, X-65, X-70, X-80 PSL1 PSL2 Line Pipe
| PSL1 | PSL2 | |
| CVN impact (Charpy) testing | None required | Required for all grades |
| Nondestructive inspection of seamless | Only when purchaser specifies SR4 | SR4 mandatory |
| Certification | Certificates when specified per SR15 | Certificates (SR 15.1) mandatory |
| Traceability | Traceable only until all tests are passed, unless SR15 is specified | Traceable after completion of tests (SR 15.2) mandatory |
| Hydrostatic Test | Required | Required |
