| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Minimum Order Quantity: | 10PCS |
| Price: | USD6-8.5/KGS |
| Packaging Details: | PLY-wooden case or pallet or as for clients' requirements |
| Delivery Time: | 5-10WORKDAYS |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300TON/MONTH |
| Steel Grade: | 400 Series | Application: | Construction,boiler,oil And Gas |
|---|---|---|---|
| Type: | Seamless,round Pipe / Tube | Standard: | ASTM,AISI,GB,DIN |
| Certification: | ISO,SGS,BV | Length: | 3000mm~6000mm,6 Meters Or Customized |
| Thickness: | 1mm-60mm | Shape: | Round.square.Rectangle,Round Section |
| Technique: | Cold Drawn/Cold Rolling Or Both Of Them | Outer Diameter: | 6-630mm,Customized |
| Surface: | Annealing,Polishing Or Unpolishing,BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D | Package: | Standard Seaworthy Package |
| Highlight: | Tp310s Seamless Stainless Steel Pipe,1.4749 Seamless Stainless Steel Pipe,Industry Stainless Steel Seamless Pipe |
||
| Product Details | |

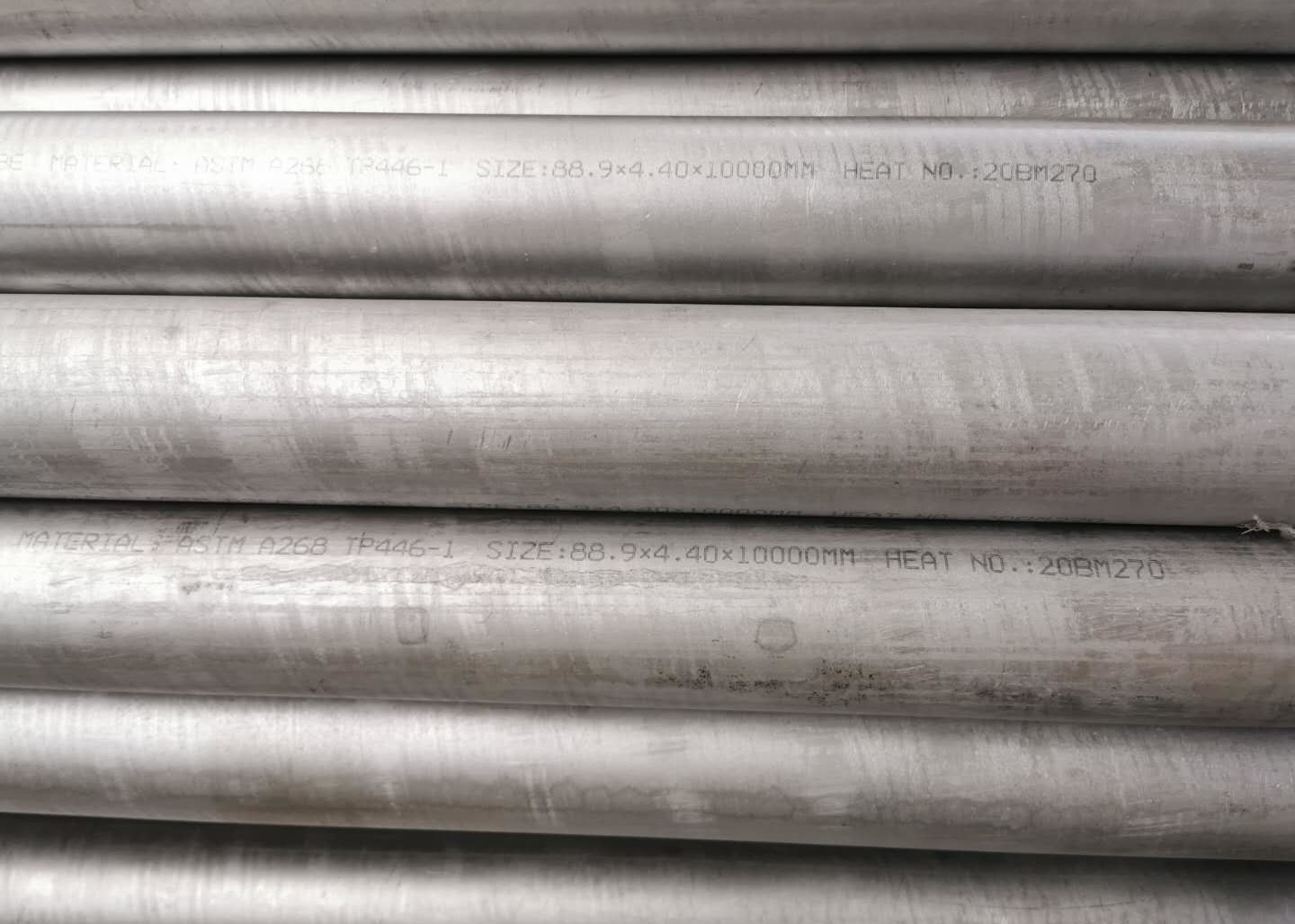

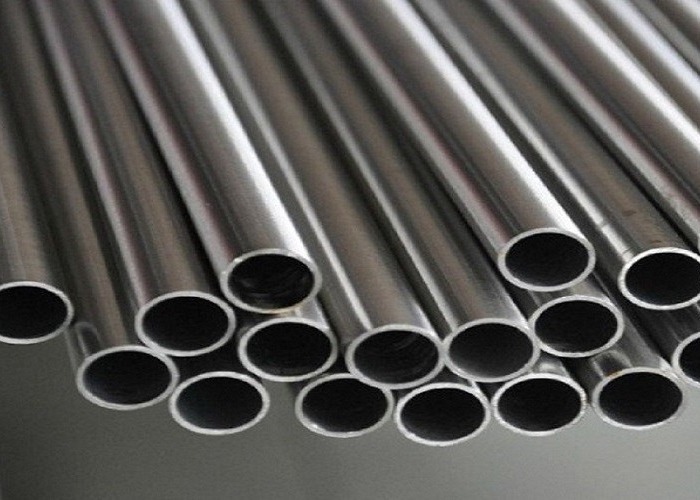

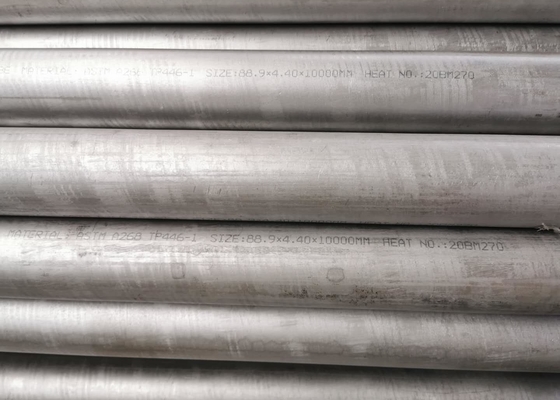

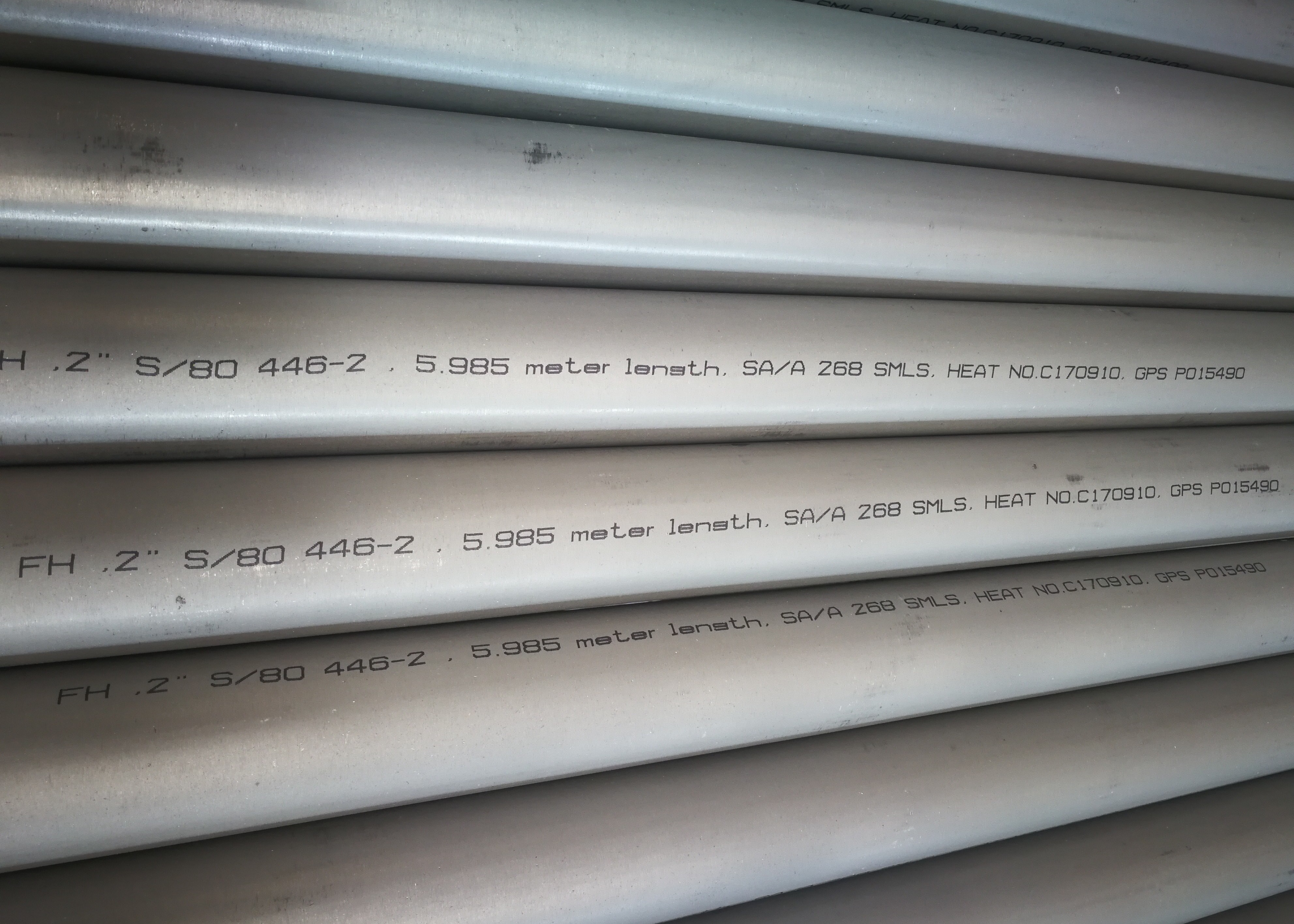

| Product name | AISI44600 1.4749 tp310s seamless stainless steel pipe |
| Brand name | TOBO |
| Standard | ASTM A312,A213, A249, A268, A269, A554, A790, B163, B444, B622 |
| Material | 304, 304L, 316L, 2205, 2507, 1.4845, 1.4541, 904L, 253MA, Nimonic 105, Inconel 718, Monel K-500 |
| Surface | Pickling, Sandblasting, 400 grit polishing, 600 grit polishing, mirror finish |
| Certificate | BV, LR, GL, NK, RMRS |
| Packing | In bundles with waterproof material, in wooden cases |
| Shipment | By sea, by air, by express |
| Chemical Composition(%) | |||||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 |
|
- | |||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 | ||
|
INCONEL 028 |
≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | ||
|
MONEL 400 |
≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - | ≤34.0 | ||
|
INCONEL 800 |
≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
Ti≤0.6 Al≤0.6 |
OUR STAINLESS STEEL PIPE FACTORY TEAM
OWNER STEEL INSITUTE FOR STAINLESS STEEL SEAMLESS & WELDED PIPE
PROCESS OF STAINLESS STEEL PIPE
Package:Standard export carton packing.
Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.
