| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | ASTM A403 WPB |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Packaging Details: | In wooden case, pallets or as per customers’ requirement |
| Delivery Time: | 15 working days |
| Supply Ability: | 100000PC/MONTH |
| Product Name: | Slip-On Flanges | Type: | Forged Flange |
|---|---|---|---|
| Pressure: | 150LB | Grade: | ASTM A403 WP304 |
| Standard Or Nonstandard: | Standard | Size: | 1/2'' |
| Standard: | ASME/ANSI B16.5 | Flange Face: | FF, RF Etc |
| Highlight: | forgings flanges and fittings,butt weld flanges,forged fittings and flanges |
||

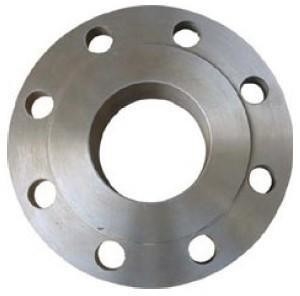

ASME B16.25 1/2'' SCH10 150# Flange Stainless Steel Slip-On Flanges A403 WP304
Slip-On Flange refers to a kind of flange connected with vessel or pipe by fillet weld. Belongs to arbitrary flange. According to the integral degree of connection between flange ring and straight pipe segment, check the integral flange or loose flange respectively. Flange ring with neck and without neck two kinds. Compared with neck butt welding flange, plain welding flange has simple structure and less material, but its rigidity and sealing property are not as good as neck butt welding flange. Flat welding flange is widely used in the connection of medium and low pressure vessels and pipelines.
All our products come in a variety of classes and material grade for any application.
This catalogue is specific for flanged outlets.
Flanged outlets are available with nominal diameter from 1/2" up to 12", rating from class
150# to 2500#, RF or RTJ. Schedules available are 10S, STD, XS, 160 and XXS, all
according to Shell Standard Drawing S38.090-C and can be installed on header pipes
from DN 3/4" up to 36".
| Materials | Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on |
| P250GH, P280GHM 16MN, 20MN ,20# | |
| Stainless Steel: ASTM A182, F304/304L, F316/316L and so on | |
| Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on | |
| Types | Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed |
| Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange | |
| Blind Flange/Blank flange, Lap Joint Flange /LJ Flange | |
| Socket Weld Flange/SW Flange/ Threaded Flange/Screwed Flange | |
| Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring | |
| Custom Flange/Special Flange/ Hot/Cold/Electro Gavanized Flange | |
| Standards | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 | |
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 | |
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES | |
| Pressure &Ratings | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI | |
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 | |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 | |
| 600kPa, 1000.1600.2500.4000.-SANS 1123 | |
| 5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 | |
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 | |
| CLASS D, CLASS E, CALSS F, AWWA C207 | |
| Surface Treatment | Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color |
| Varnish Paint Coating, Varnish Oil Coating, | |
| Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30mm) | |
| Hot Dip Galvanizing Coating (Coating Thickness 200mm around) | |
| Technical | Forging |
| Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry |
| and general pipes connecting projects etc. | |
| Inspection | Quality Control System-Well Equipments and Machinery-Well Workers and Engineers |
| Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements |
| Payment Terms | L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L |
| Delivery Time | 30 Days after the Advance or the L/C |
| After-Sales Service | Orders and Products Tracking System |
Why Choosing Metal Industrial:
Sufficient Forging, Heating, Machining Equipment
In-house Inspection Instruments for Quality Controlling
Competitive Price & High Quality Assurance
Fast, Effective and Efficient Services
Directly supplier of Metallurgical Equipment
Experienced Professinonals on Communications
Packing&Delivery
Packing Details :In wooden case, pallets or as per customers’ requirement
Delivery Details : 7-15 days after the PO
