| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | ASTM B366 N08825 |
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiable |
| Packaging Details: | Wooden case or as request |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Product Name: | Equal Tee | Standard: | ASME B16.9 |
|---|---|---|---|
| WT: | SCH80 | Material: | ASTM B366 NO8825 |
| OD: | 4''X 3'' | Technics: | Seamless |
| Type: | Butt Weld Pipe Fittings | Place Of Origin: | China |
| Highlight: | butt welded pipe fittings,industrial pipe fittings,butt weld tube fittings |
||
Production Description

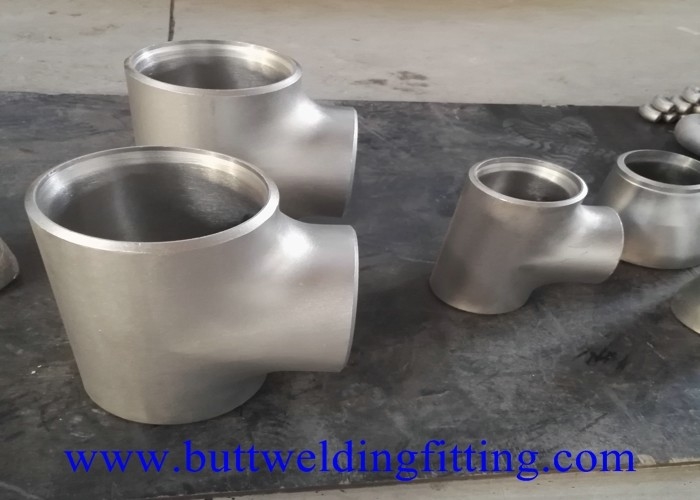

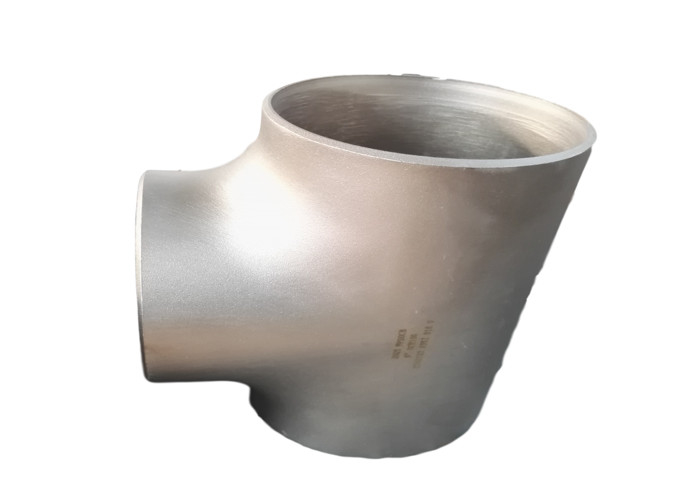

Buttweld Tee Fitting
Buttweld Tee Fittings are widely used in industrial tubing to merge or divide fluids and do not require special tubing preparation before applications. Available in different threading specifications and various grades Buttweld Tee Fittings are engineered to close tolerances and precise dimensions.
| Product Name | Equal / Reducing Tee |
| Size | 1/2’’~10’’(Seamless);12’’~72’’(Welded) |
| Thickness | Sch5S~Sch160XXS |
| Manufacture Standard: |
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Duplex steel |
UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600, UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974 |
| Nickel alloy steel | Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Reducing Tee
Stainless Steel : ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel : ASTM A 105, ASTM A 181
Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
| Alloy | Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo |
| Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Nickel 200 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Monel 400 | 66.5 | 0.2 | 1 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
| Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | -- | -- | -- | -- | -- | |
| Monel K500 | 66.5 | 0.1 | 0.8 | 1 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
| Inconel 600 | 76 | 0.08 | 0.5 | 8 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
| Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23 | 1.4 | -- | -- | -- |
| Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19 | 0.5 | 0.9 | 5.1 | 3 |
| Inconel X-715 | 73 | 0.04 | 0.5 | 7 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1 | -- |
| Incoloy 800 | 32.5 | 0.05 | 0.8 | 46 | 0.008 | 0.5 | 0.4 | 21 | 0.4 | 0.4 | -- | -- |
| Incoloy 803 | 32.0- 37.0 |
0.06- 0.10 |
≤1.5 | ≤0.015 | ≤1.0 | ≤0.75 | 25.0- 29.0 |
0.15- 0.60 |
0.15- 0.6 |
-- | -- | |
| Incoloy 825 | 42 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3 |
Buttweld Fittings
We supply a wide range of Buttweld Fittings. Widely used in Oil, Gas, Filtration, Refrigeration, Refining,
Petrochemical and Offshore Industries.
Buttweld Fittings are used in a piping system to change a direction or function, which is mechanically joined to the system.
Probably the simplest way to achieve this would be to bend the pipe in the direction required, but this process will stretch
and thin the outer wall of the pipe whilst thickening and wrinkling the inner wall of the pipe. This results in flow resistance
and accelerated wall erosion.
