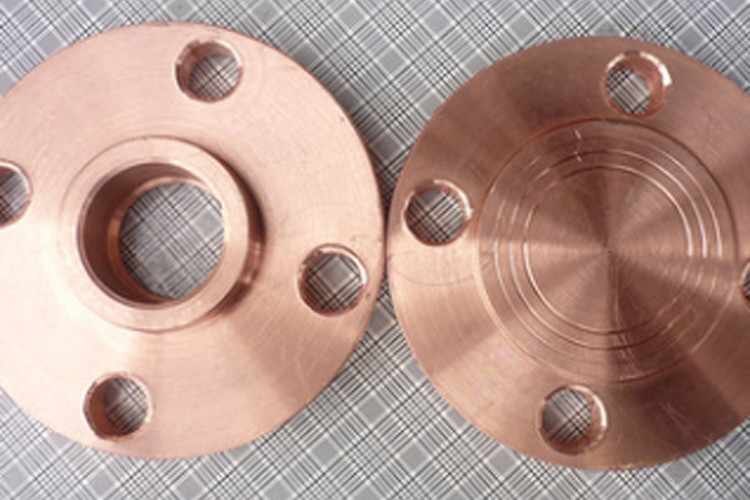

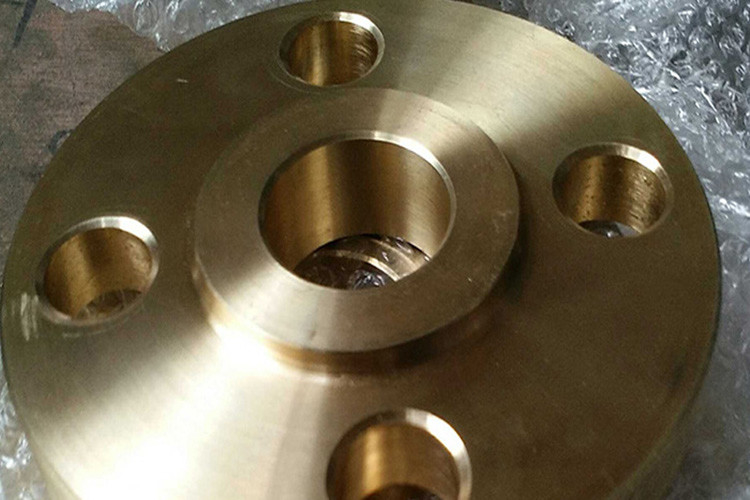

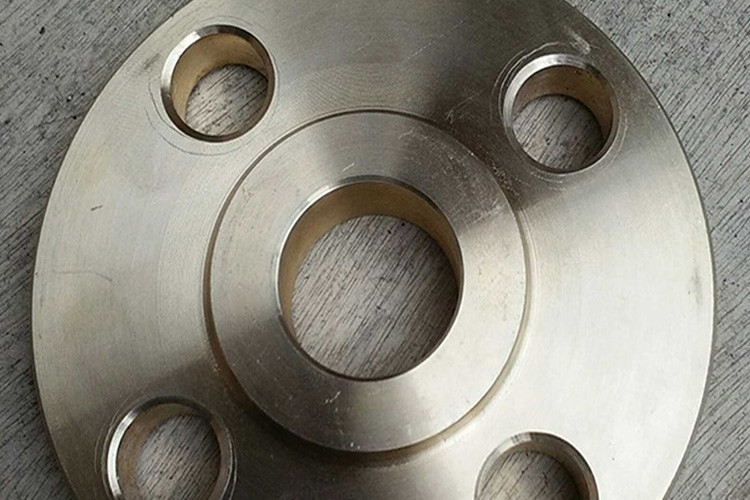

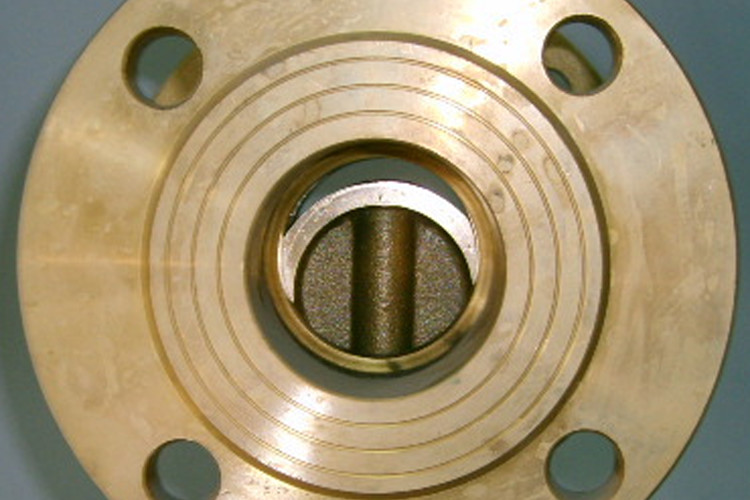

Name: RF FF MF MFM RJ TG RTJ SRF Forged Steel Butt Weld Fittings Slip On Welding Flange
Brand: TOBO
SKU: Flange
Rating: 4.6 (109 reviews)

Basic Information

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	Flange

Minimum Order Quantity:	1pc
Packaging Details:	Packing by wooden case
Delivery Time:	10-35days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3,0000pcs per month

Get Best Price Contact Now

Size:	1-48 Inch	Material Grrade:	R50250/GR.1
Type:	Thread Or Weld	Standard:	DIN,EN,ASTM,BS,JIS,GB,etc.
DN:	15-1200
Highlight:	forgings flanges and fittings , forged fittings and flanges

RF FF MF MFM RJ TG RTJ SRF Forged Steel R50250/GR.1 titanium Ti material Slip on welding Flange

1.Stainless steel flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

ASTM 904L flange

Product Name	ASTM 904L flange
Standard	ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type	1.4835 (UNS S30815 – 253MA – SS2368)Pipe
Materials	Stainless steel:ASTM/ASMES/A182 F304 \| F304L \|F304H \| F316 \| F316L \| F321 \| F321H \| F347\|316Ti \| 309S \|310S \| 405 \|409\|410 \| 410S \| 416 \| 420 \| 430 \| 630 \| 660 \| 254SMO \| 253MA \| 353MA Nickel Alloy: ASTM/ASME S/B366 UNS N08020 \| N04400\| N06600 \| N06625 \| N08800 \| N08810 \| N08825 \| N10276 \| N10665 \| N10675 \| Incoloy 800 \| Incoloy 800H \| Incoloy 800HT \| Incoloy 825 \| Incoloy 901 \| Incoloy 925 \| Incoloy 926, Inconel 600 \| Inconel 601 \| Inconel 625 \| Inconel 706 \| Inconel 718 \| Inconel X-750, Monel 400 \| Monel 401 \| Monel R 405 \| Monel K 500 Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L S32750 \| S32760 Hastelloy:HastelloyB \| HastelloyB-2 \| HastelloyB-3 \| HastelloyC-4 \| Hastelloy C-22 \| Hastelloy C-276 \| Hastelloy X \|Hastelloy G \| Hastelloy G3 Nimonic: Nimonic 75 \| Nimonic 80A \| Nimonic 90 Duplex Steel: ASTM A182 F51 \| F53 \| F55, S32101 \| S32205 \| S31803 \| S32304 Alloy Steel: ASTM/ASME S/ A182 F11 \| F12 \| F22 \| F5 \| F9 \| F91 Carbon steel: API 5L...
Marking	Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test	Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
Certificates	API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Applications	Ø EN 1.4835 has a good weldability and can be welded using the following methods: Shielded metal arc welding (SMAW) Gas tungsten arc welding, GTAW (TIG) Plasma arc welding (PAW) Gas metal arc GMAW (MIG) Submerged-arc welding (SAW) Typical application areas for 1.4835: Ovens Construction Building As details at high temperature
Advantages	Corrosion Resistance Heat Resistance Heat Treatment Welding Machining

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90^{o L/R Elbow Center To End A}	45^{o L/R Elbow Center To End B}	90^{o S/R Elbow Center To End A}	Tees Center To Ends C.M	Cap Length E
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90^{o L/R Elbow Center To End A}	45^{o L/R Elbow Center To End B}	90^{o S/R Elbow Center To End A}	Tees Center To Ends C.M	Cap Length E
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625		1.00	1.00
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438		1.13	1.00
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00	1.50	1.50
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25	1.88	1.50
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50	2.25	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00	2.50	1.50
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50	3.00	2.00
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00	3.38	2.50
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00	4.13	3.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00	4.88	3.50
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00	5.63	4.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00	7.00	5.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00	8.50	6.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00	10.00	7.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00	11.00	7.50
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00	12.00	8.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00	13.50	9.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00	15.00	10.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00	17.00	12.00

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00

Titanium usage in different:

CP grade1 can be used in the deep drawing parts for its good elogation and excellent corrossion-resistance.

CP grade2 is widely used in the commercially pure Titanium.

CP grade3 is almost only used in the pressure vessel.

CP grade4 can be used in some fittings and fastening pieces,but for complete shape need 300 degree celsius to form

Alloy Gr5 ,Ti6AL4V,is one of the most popular Ti alloys because of itscomprehensive

mechanical,physical and chemical properties.

Alloy Gr7,add little palladium in cp Titanium and it has the most excellent corrosion-resistence

Alloy Gr9,Ti3AL2.5v,is used mostly in the golf clubs and bicycle girders.

Alloy Gr12,it has the similar properties with the grade7.

TItanium tube process:

Titanium sponge→Compacting electrodes→Melting→Foring→Bar billets→ Extruding→Rolling→Strightening→Seamless Tubes

Material Description

Common titanium material

Alloy composition	GB	ATME	JIS	DIN
Ti	TA0	R50250/GR.1	1type	3.7025
	TA1	R50400/GR.2	2type	3.7035
	TA2	R50550/GR.3	3type	3.7055
	TA3	R50700/GR.4	4type	3.7065
	TA7	GR.6		3.7115
Ti-0.23Pb	TA9	R52400/GR.7	12type	3.7235
Ti-0.3Mo-0.8Ni	TA10	R53400/GR.12		3.7105
Ti-3Al-2.5V	TC2	R56320/GR.9
Ti-6Al-4V	TC4	R56400/GR.5	60type	3.7175

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the Alibaba certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
