| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | F304H |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Packaging Details: | In wooden case, pallets or as per customers’ requirement |
| Delivery Time: | 15 working days |
| Supply Ability: | 100000PC/MONTH |
| Product Name: | Socket Welding Flanges | Size: | 1'' |
|---|---|---|---|
| Pressure: | 300# | Connection:: | Welding |
| Standard: | ASME B16.5 | Material Grade: | F304H |
| Facing: | RF FF RTJ RJ TG | Usage: | Pipeline Connection |
| Price: | Negotiation | ||
| Highlight: | forged fittings and flanges,butt weld flanges |
||

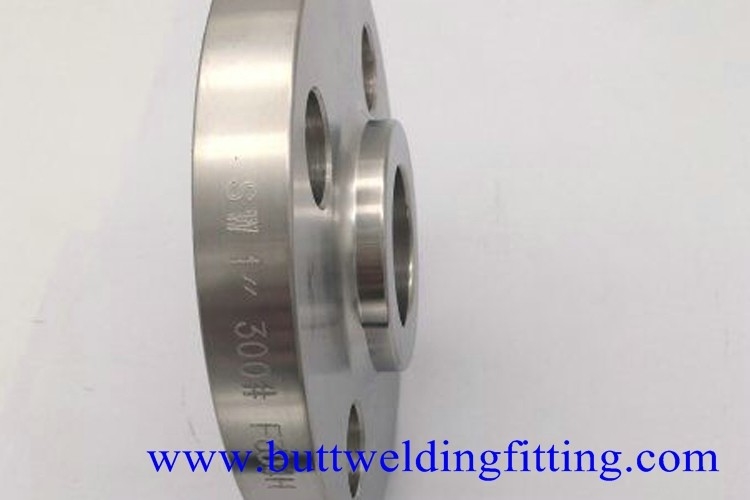

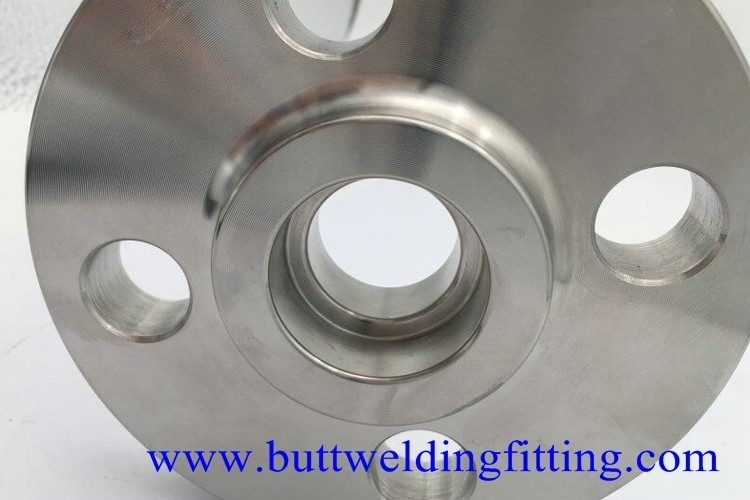

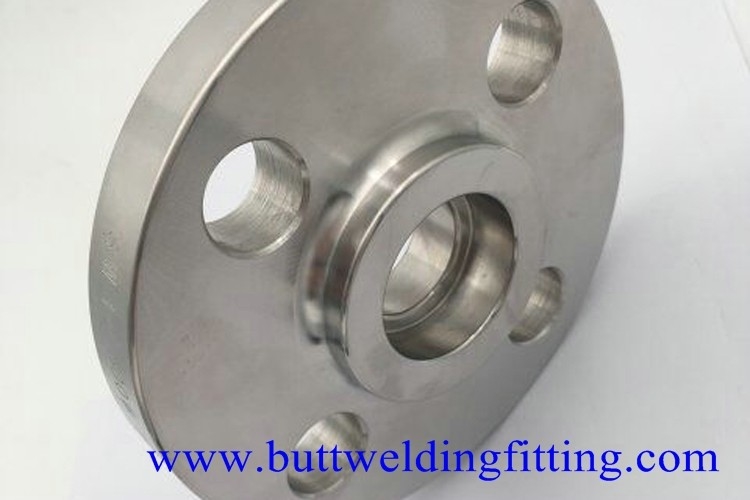

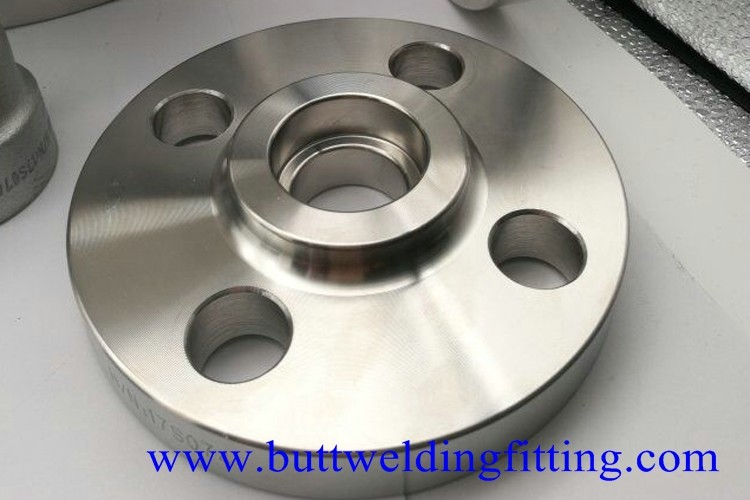

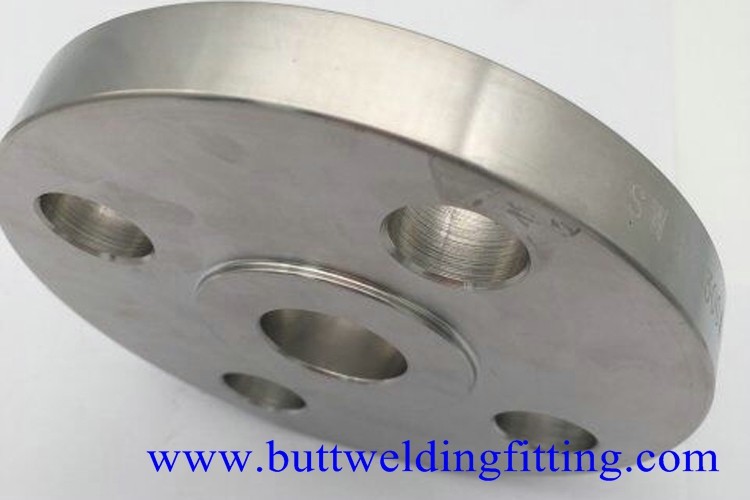

SW Flange for connection 1'' F304H 300# Socket Welding Forged Steel Flanges
Product Description
Specifications
1. Stainless Steel flange
2. sch5s-schxxs
3. ISO9001,ISO9000
4. Market:America,Africa,Middle East,Southeast of Asia
| Material: | F304H | Technics: | Forged | Type: | SW Flanges |
| Place of Origin: | Shanghai, China (Mainland) | Pressure: | 150#,300#,600#,900#,1500#,2500# | Brand Name: | METAL |
| Connection: | Welding | Standard: | ASME B16.9 | Head Code: | Round |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
What is a socket weld flange?
Socket-weld pipe flanges are typically used on smaller sizes of high pressure pipes.
These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top.
This allows for a smooth bore and better flow of the fluid or gas inside of the pipe.
What is socket welded?
A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve,
fitting or flange. ... To join pipe to Valves and fittings or to other sections of pipe, fillet-type seal welds be used.
What is a Pipe Flange?
A pipe flange connects piping and components in a piping system by use of bolted connections and gaskets.
Most commonly used flanges are weld neck flange, slip on flange, blind flange, socket weld flange, threaded flange
and lap joint flange (RTJ Flange). This type of connection in a pipe flange allows for ease of disassembly and separation
for repair and regular maintenance. Most common specification for carbon steel and stainless steel flange is ANSI B16.5 / ASME B16.5.
Packing&Delivery
Packing Details :In wooden case, pallets or as per customers’ requirement
Delivery Details : 7-15 days after the PO
