| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO9001:2008 |
| Model Number: | TOBO-246 |
| Minimum Order Quantity: | 1 TON |
| Price: | negotiable |
| Packaging Details: | Thick Wooden Box Packing |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 TON PER MONTH |
| Product Name: | TOBO Nickel Alloy Pipe | Grade: | 10#-45#, 16Mn, A53-A369 |
|---|---|---|---|
| Wall Thickness: | 0.5 - 8 Mm | Place Of Origin: | China |
| OD: | 3 - 80 Mm | Length: | 9000mm |
| Brand: | TOBO | ||
| Highlight: | Thin Wall Steel Pipe,Alloy Steel Seamless Pipe |
||
Packaging Details
1.Wrapped in waterproof paper of steel pipe tube
2.Sackcloth with several steel strips of steel pipe tube
3.Cover cap of steel pipe tube
4. Wooden case of steel pipe tube
Delivery Time
Shipped in 35 days after payment
A519 Seamless Steel Pipe Tube
Chemical Composition:
|
Standard
|
Steel Grade
|
C(%) | Si(%) | Mn(%) | S(%) | P(%) |
| A519 | 1010 | 0.05-0.15 | 0.15-0.35 | 0.3-0.6 | ≤0.050 | ≤0.040 |
| 1020 | 0.15-0.25 | 0.15-0.35 | 0.3-0.6 | ≤0.050 | ≤0.040 | |
| 1045 | 0.43-0.50 | 0.15-0.35 | 0.6-0.9 | ≤0.050 | ≤0.040 | |
| 4130 | 0.28-0.33 | 0.15-0.35 | 0.4-0.6 | ≤0.040 | ≤0.040 | |
| 4135 | 0.32-0.39 | 0.15-0.35 | 0.6-0.9 | ≤0.040 | ≤0.040 | |
| 4140 | 0.38-0.42 | 0.15-0.35 | 0.7-1.0 | ≤0.040 | ≤0.040 |
Other Specification:
| End Shape |
Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements |
|
|
Surface Treatment |
Oiled, Galvanized, Phosphate etc | |
| Technique | Cold drawn & cold rolled | |
| Application | 1. Automotive and mechanical pipes | |
| 2. Petroleum cracking pipes | ||
| 3. High Pressure Boiler Pipe | ||
| 4. Low and middle pressure fluid transportation pipeline | ||
| 5. Chemical fertilizer equipment pipes | ||
| 6. Heat exchanger pipes | ||
|
Delivery Conditions |
1. BK (+C) | No heat treatment after last cold forming process. |
| 2. BKW (+LC) | After last heat treatment there is a light finishing pass (cold drawing) | |
| 3. BKS (+SR) | After the final cold forming process the tubes are stress relieve annealed. | |
| 4. GBK (+A) | After the final cold forming process the tubes are annealed in a controlled atmosphere. | |
| 5. NBK (+N) |
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere. |
|
| Package | 1. Bundle Packing. | |
| 2. Plain end or vanished as per customer's request. | ||
| 3. Wrapped in waterproof paper. | ||
| 4. Sackcloth with several steel strips. | ||
| 5. Pack in heavy tri-wall boxes. | ||
ee japanese tube you jizz tube free japanese tube you jizz tube free japanese tube you jizz tube free japanese tube you jizz
Our Seamless Steel Pipe are capable of making all of the following products :
| Fuel injection Pipe, Oil flow pipeline | Automobile and motorcycle Shock Absorber Pipe |
| Seat lifter Pipe | Hydrau-cylinder Pipe |
| Bicycle frame steel pipes | Mechanical steel pipes for auto and motor parts |
| Auto and Motorcycle Parts | Exhaust Pipe for Generator |
| High Heels Steel Pipes | Campanula Seamless Steel Pipe |
| Bike and Bicycle Frame | Hydraulic System(Oil Pipeline, Motor Engine Pipe) |
| Sewing machine and textile machine parts | Air conditioning fitting |
| Gas oil burner pipe | Oil pipe drilling |
| Auto and motor pipe fittings | Gas Spring pipe,motor casing pipe |
Related Products
| item | material | standard | specification (OD*WT)mm | usage |
| alloy pipe | Cr5Mo. 15CrMo | GB5310-95 GB9948-88 | 16-824*2-100 | The seamless steal pipes features resistance to high pressure, high/low temperature and corrosion and is used in the industries of petroleum, chemical engineering and. Electric power as well as boiler |
| 13CrMo44 | ASTMA335/A335M | |||
| 12Cr1MoV P22 | ASTMA213/213M | |||
| T91,P91,P9, | DIN17175-79 | |||
| T9 Wb36 | JISG3467-88 | |||
| JISG3458-88 | ||||
| High-pressure boiler pipe | 20G,A106, | GB5310-95 | 14-630*2-80 | Temperature-resistant seamless steel pipe far high-pressure boiler |
| ST 45 | ASTM A 106-99 | |||
| DIN17175-79 | ||||
| Seamless pipes for petroleum | 20, 12CrMo, | GB9948-88 | 10-530*1.5-36 | Boiler pipes for refinery, heat-exchanging pipes,seamless steel pipes for pipeline |
| 15CrMo | ||||
| High-pressure Seamless pipes for fertilizer making equipment | 20, 16Mn, | GB6479-2000 | 18-530*3-40 | Fertilizer making equipment and pipe line |
| Q345 | ||||
| Low and medium-pressure boiled pipe | 10,20 | GB3087-1999 | 10-530*2-40 | Over-heat pipe for low and medium pressure boiler,boiling water pipe, locomotive smoke pipe(big and small) |
| Fluid pipe | 20, Q345 | GB/T8163-1999 | 8-630*1.0-40 | Fluid feeding |
| Structural pipe | 20, Q345 10, | GB/T8162-1999 | 6-1020*1.5-100 | For common structure |
| 20,35,45, | ||||
| 16Mn,Q345B | ||||
| Line pipe | Gr.B | API | 60-630*1.5-40 | Carrying gas, water or oil in the industries of petroleum and natural gas |
| Hydraulic prop pipe | 27SiMn | GB/T17396-1998 | 70-377*9-40 | Hydraulic support and prop |
4.steel pipe structure picture and weight counting method as follow:

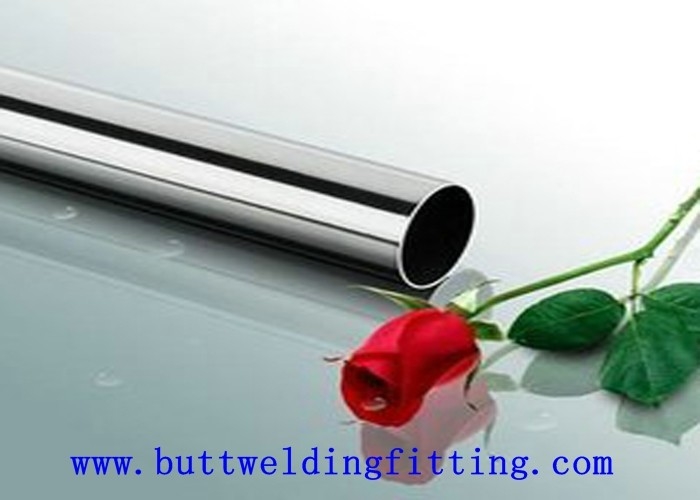

S355JR Large Diameter 4130 alloy tube manufacturers High Quality a335 p91 alloy steel pipe price per ton
5.Production Line & Process & Packing about our product
About Packaging.
1. by bundles, each bundle weight under 3 tons, for small outer diameter seamless steel pipe, each bundle with 4 - 8 steel strips.
2. after making by bundle, covered with Polyethylene waterproof cloth.
3. make black paints painting on each pipe, then make bundles
What is our factory product range?
We are specialize in stainless steel tube/pipe, plate,elbow, fittings,coil, sheet etc
How to order?
Please send us your purchase order/specific inquiries by Email or Fax and Proforma Invoice will be sent back according
to your order. Besides, following information will be needed:
1 .Product information: Quantity, Specification(type of stainless steel pipe/tube such as round, square, rectangle or oval,
dimension,such as diameter, length, width, thickness, etc.)
2 .Delivery time required & packing requirement
3 .Shipping information: Company name, Address, Phone number, Destination seaport/airport.
What are the trade terms we can be accepted?
EXW, FOB, CFR, CIF.
What is the whole process for doing business with us ?
1. Please provide details products information you need.
2. If price acceptable and sample needed, sample can be customized via customers' requirement and be sent immediately.
3. If sample approved and bulk production required for order, proforma Invoice will be sent and products fabricating will be arranged at once when 30% deposit received.
4. Products photos, packing details, and will be sent to customers after products finished. Shipment will be arranged after the balance payment paid.
