| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | TOBO-78 |
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiable |
| Packaging Details: | Wooden case or as request |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs per month |
| Product Name: | TOBO Pipe Fitting Elbow | Standard: | JIS B2311,B2312,B2312,B2 |
|---|---|---|---|
| Size: | 1/8"-100" | Material: | CuNi 90/10 |
| WT: | SCH5-SCH 160S | Chemical Composition: | Ni MIn63%,Cu 28%-34%,Fe Max2.5% |
| Type: | Elbow | Place Of Origin: | China |
| Highlight: | butt welded pipe fittings,butt weld tube fittings |
||
Description:
1. Product Item No.: 010fittings-Cosco Steel

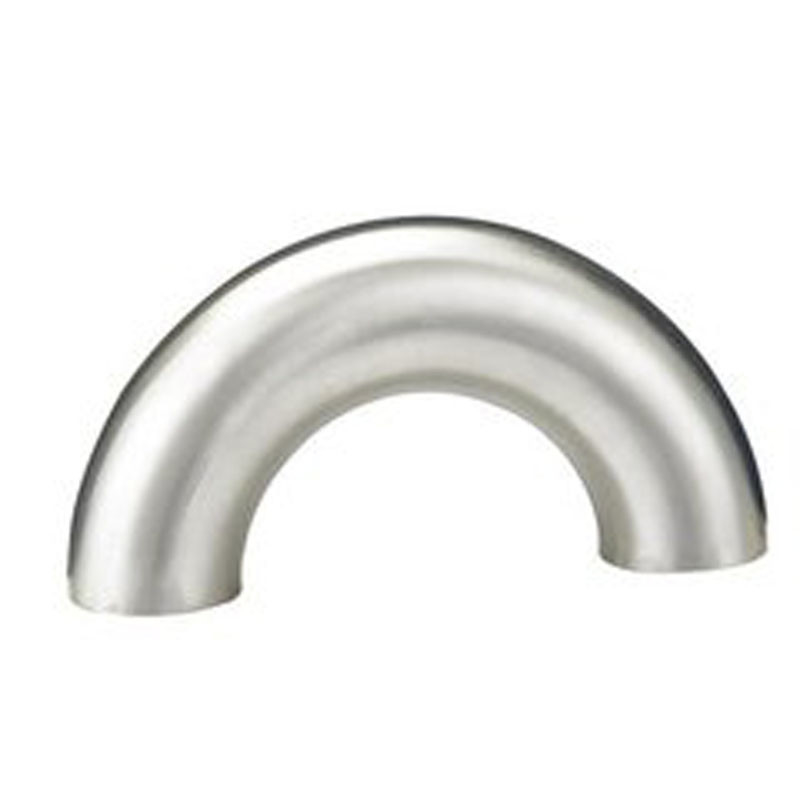

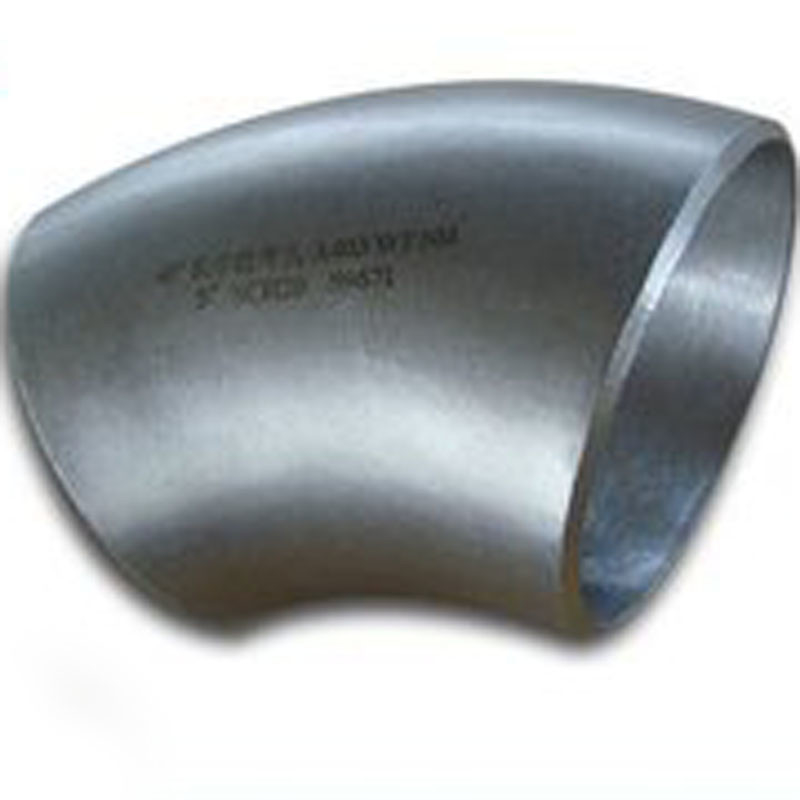

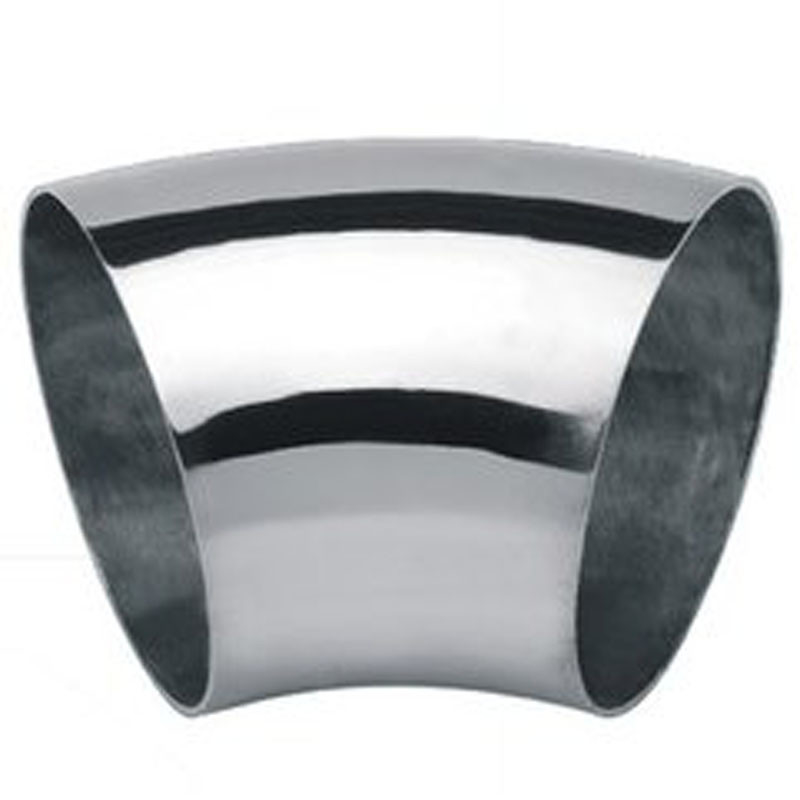

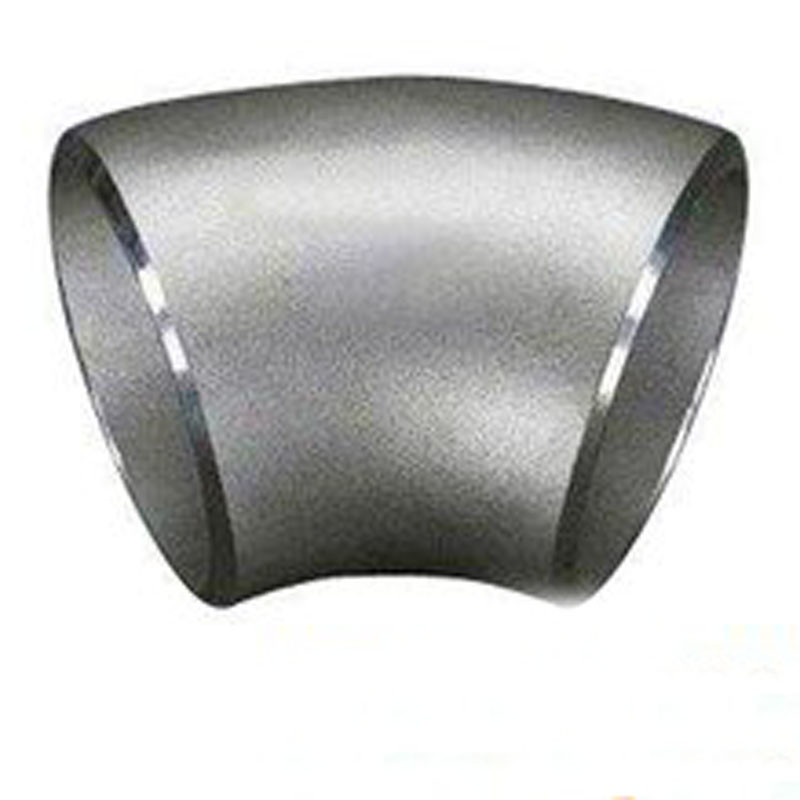

2. Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female
3. Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L, 304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc We can also produce other specifications according to customers' requirements.
4. Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,
5. 304N,304LN,302, 301,201,202,904L,Duplex,etc
6. Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91
7. Working pressure: -20° C~150° C
8. Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.
9. Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow
10. Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc
11. Type:15 ° ,30 ° ,45 ° ,60 ° ,90 ° , 180 ° ,male and female
12. Outside Diameter: 1/8"-100" (6-2500mm)
13. Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb
14. Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc
15. Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,etc
16. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
17. Packing: Wooden box or wooden pallet.
18. H.S Code: 73072300
CUNI ELBOW.
Forged, Silver-Brazing and Threaded Fittings,
1. Silver-Brazing Alloys Rings
All fittings incorporated integral silver brazing alloy rings and under normal circumstances there is
generally no need ro end feed with addtional brazing alloy.
2. Dimension Specifications :
ASME(ANSI) / EEMUA / DIN / BS / MSS
3. Threads
Threaded fittings are supplied with threads according to NPTM API, BSP and DIN 259 when other
standard are requested, the total length of the fittings may vary slightly
4. Union Joint
Union type fittimgs have round-nose to cone seat joint and to ensure freedom leaks, care must be taken
to avoid damage to the joint faces. With joints of this type it is essential to use a suitable jointing
compound or tape to ensure completely satisfactory result.
5. Flux
Flux is recommended and specially suitable for use with silver brazing fittings
6. Socket Weld Fittings
All silver-brazing fittings can be also supplied as fittings without integral si;ver brazing alloys.
These fittings have no silver ring groove.
7. Materials :
Al-Brass : BS 2871 CZ110, ASTM B111 C68700, DIN17660(CuZn20Al2), JIS H3300 C6870
Cu-Ni 90/10 : BS 2871 CN102, ASTM B466/B467 C70600, DIN17660(CuNi10Fe1Mn), JIS H3300 C7060
Cu-Ni 70/30 : BS 2871 CN107, ASTM B466/B467 C71500, DIN17664(CuNi30Fe1Mn), JIS H3300 C7150
| Form | Buttweld, Socket Weld, Forged, Threaded, Reducing, |
| Type | Seamless, ERW, Welded |
| Standards | Astm A182, ASTM A403, DIN, JIS, ASME, GB |
| Dimensional | ASTM B 16.9 /16.11 B 16.28 JIS B 2311/2220 DIN2617/2616/2615/2391 |
| Butt Weld Range | ½” (15 NB) to 48” (1200NB) in sch 5, sch 10, sch20, sch 40, sch 80, sch 160, sch xxs etc. |
| Socketweld/Forged Range | ½” (15 NB) to 48” (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6, PN 10, PN 16, PN 25, PN 40, PN 64, PN 100,PN 160 ETC. |
| Stainless Steel Elbows Grades | ASTM A 182, ASTM A240 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 S33, 316L, 317, 317L, 321, 347, 347H, 409, 410, 410S, 420, 430 |
| Duplex Steel Elbows Grades | Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760) |
| Copper & Copper Nickel Elbows | Copper, Copper Nickel, Cuni UNS C71520 (70/30), UNS C70600 (90/10) |
| Monel Elbows | UNS 4400 (Monel 400), Monel 500 |
| Inconel Elbows | UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), Incolloy 800, UNS 8825 INCONEL (Incolloy 825) |
| Others Elbows Grades | ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) Hastelloy 904, NICKEL 200 |
Copper Nickel Pipe Fittings.
1) Tee ( Equal & Unequal )
2) Caps & Plugs, Cross
3) Stub End ( Long & Short )
|
We provide to our customers a superior range of Copper Nickel Pipe Fittings with Precise Standard Grades like as like UNS NO. C 70600 (CU -NI- 90/10) and C 71500 (CU -NI- 70/30), we also providing value added services Polishing ( Electro ), Coating ( Epoxy & FBE ), Galvanizing ( Hot Dipped ), In full details kindly see bellow all the specification. TYPES of Fitting:
