| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO 9001:2008 |
| Model Number: | TOBO946 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 1 USD |
| Packaging Details: | In plywood cases and pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1100000 Pcs per month |

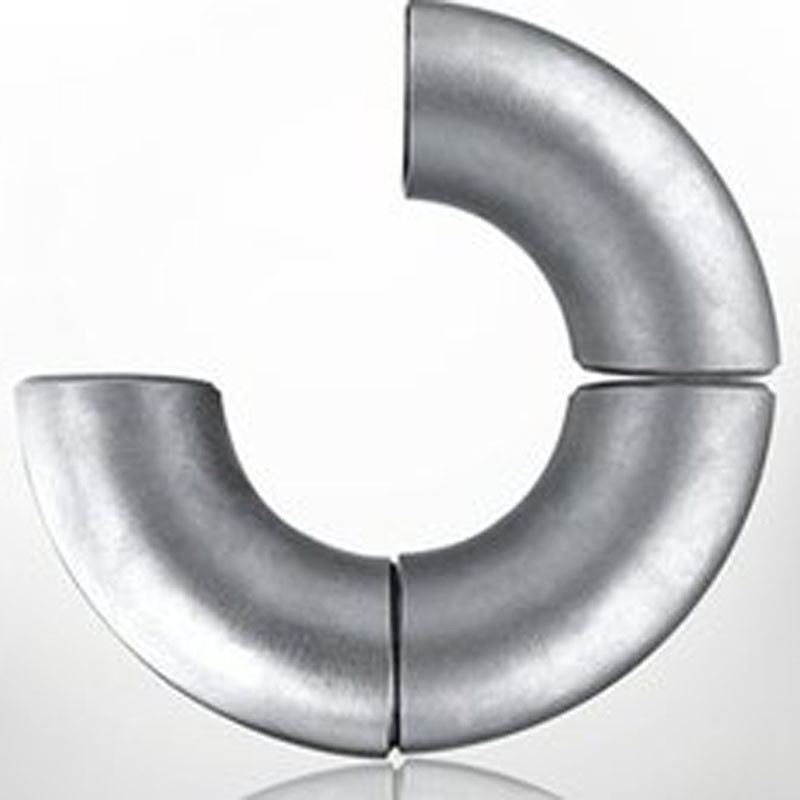

| Product Name: | Tobo Butt Welding 180D Elbow | Material: | UNS S31803\S32750\S32760\S32205 |
|---|---|---|---|
| OD: | 1/2"-48" | Technics: | Casting |
| Degree: | 90D 45D 180D | Standard: | ASME B16.9, B16.28, Etc. |
| Thickness: | 3mm-30mm | ||
| Highlight: | butt welded pipe fittings,butt weld tube fittings |
||
| Product type | Super Duplex Stainless Steel Buttwelding pipe Fittings |
| Size | 1/2"-24" |
| Thinckess | 3mm-30mm |
| Schedule | SCH20, SCH40, STD, SCH80, XS, SCH120, SCH160, XXS, etc. |
| Bending Radius | 1D-10D |
| Type | Butt Welded or Seamless |
| Shape | Equal or Reducing |
| Material |
A403 WP304304L316316L347347H310310S316TI321321, A815 UNS S31803S32750S32760S32205, etc. |
| Standard | ASME B16.9, B16.28, etc. |
| Ends | Bevel ends, Plain ends, Theaded ends, Groove ends |
| Surface treatment |
1. Acid pickling; 2. Sand blasting ; 3. Polishing treatment; 4. According to customer request. |
| Advantages |
1. Product of goods' quality; 2. Favorable price; 3. Guaranteed delivery time; 4. Flexible payment terms |
1) pylwood cases
2) Plywood pallets
3) As per customer request
Process of the Copper tube:
Melting→casting→Extruding→Reducer→Drawing→Annealing→Packing
Quality Control & Guarantee System of Copper tube :
1) Full Controlled by ISO system
2) Chemical analysis before casting
3) Eddy current testing
4) Dimension check
5) Miscellaneous tests
6) Tensile test (Tensile strength, yield strength, elongation)
7) Expansion test
8) Hardness test
9) Microscopically examination
Applications for the Copper tube:
1) Air Conditioner and Refrigerator
2) Water tube service and distribution
3) Fire Protection, Solar, Fuel/Fuel Oil
4) Natural Gas, Liquefied Petroleum (LP)Gas
5) HVAC, Snow Melting, Drain, Waste, Vent Piping
6) Re-drawing usage
7) High conductivity use
8) Cable Lugs and Termainals
9) Electric Connectors
10)Lighting industry
Product:stainless steel 304 pipe elbow center:

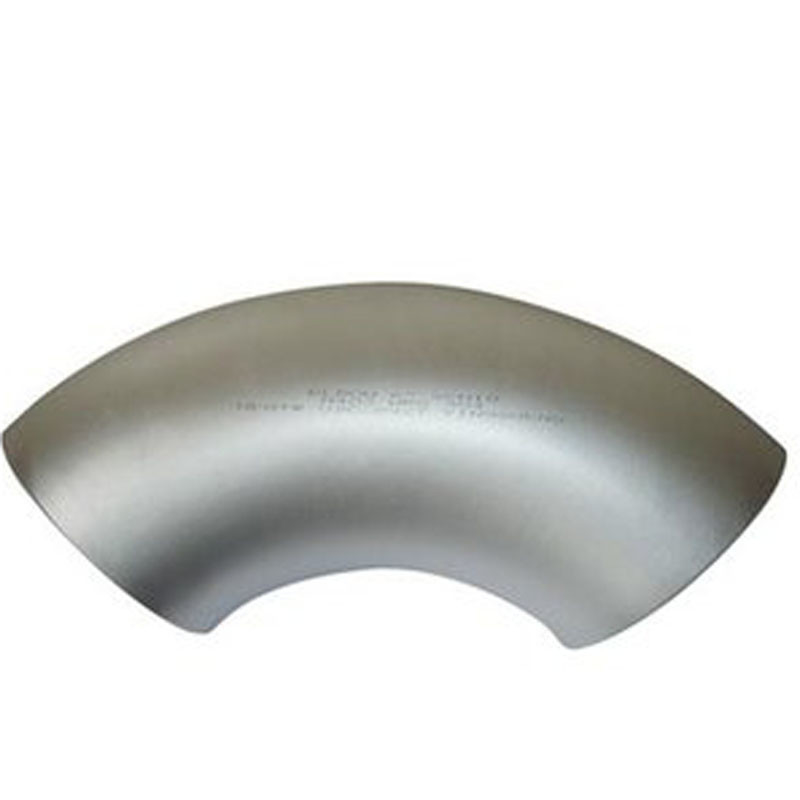

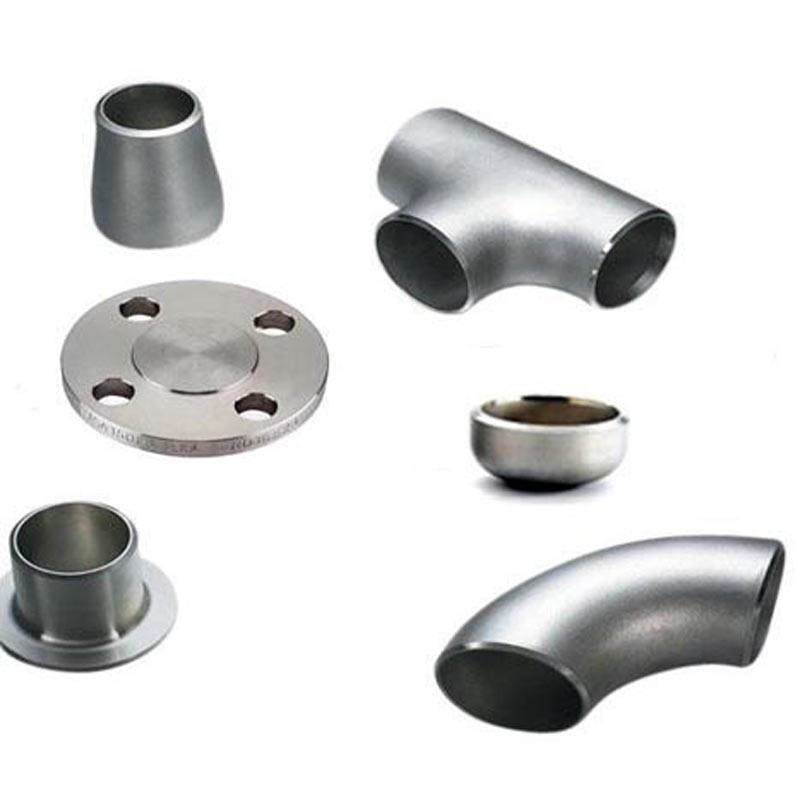

1) Types: Elbow 90o, LR/SR, 180o LR/SR, elbow
45o LR, equal tee, reducing tee. Stainless Steel Tee. Stainless Steel Reducer Tube
2) Types: Concentric and eccentric reducers, caps
3) Wall thickness: Schedule 5 through XXS
4) Materials: Stainless steel
5) Standards: ANSI, DIN, JIS, ASME, ASTM, MSS and EN
6) Size: 1/2" ~ 48" (DN15mm ~ 1, 200mm)
Related Copper Tubes/Pipes:
| Product Name | Grade | Out Diameter | Thickness | Product Name | Grade | Out Diameter | Thickness |
| Flat Copper Tube Hot'' | C11000, C12200, C21000 | Width: 10-20mm; Height: 2-4mm | 0.2-0.7mm | Straight Copper Tube | C11000 C10200 C12000 C12200 | 4-219mm | 0.35-5.5mm |
| Copper Clad Aluminum Tube | C11000 copper , 3003 aluminum | 6.35-19.05mm | 0.5-1.20mm | LWC Copper Tube Coil/Pancake coil Hot'' | C10200 | 4-22.23mm | 0.3-1.5mm |
| Inner Groove Copper Tube NEW'' | C10200 C12200 C26800 C27000 etc. |
5.0-15.8mm | 0.35-0.83mm | Brass Tube | C23000 C24000 C26000 C26200 C27000 C72000 C28000 | 4-203mm | 0.5-3.5mm |
| Nickel-Copper Tube Hot'' | C71500 C70600 | 10-55mm | 0.5-3mm | Copper Tube Coil | C11000, C10200, C12200, etc. | 4-22.23mm | 0.3-3.5mm |
| Precision Copper Tube Hot'' | C10200 C12200 C26800 C27200 C27000 etc. | 1.6-5mm | 0.27- 2.0mm | OFHC Copper Tube | C11000, C12200, C21000 | 10-40mm | 1-10mm |
| ETP Copper Tube | C11000 | 4-219mm | 0.35-5.5mm | Insulation Copper Pipe Coil Hot'' | C12200 | 22.35-35mm | 0.3-1.5mm |
| Aluminum Clad Copper Tube | C11000 | 6.35-19.05mm | 0.5-1.50mm | Condenser Tube | C44300 C68700 C70600 C71500 | 12-50mm | 0.8-3mm |
| Capillary Copper Tube | C10200 C12200 C2680 C27200 C27000 etc. | ≥ 0.3mm | ≥ 0.1mm | Oxygen Free Copper Tube | C10200 | 4-25mm |
0.27-2.5mm |
| Chemical Composition(%) | |||||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - | ||||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 | ||
|
INCONEL |
≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | ||
|
MONEL |
≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - | ≤34.0 | ||
|
INCONEL |
≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
Ti≤0.6 |
Other Material and Sizes Are Available If You Are Interested to Buy Pipe Fitting so Please Feel Free and Send Inquiry to Us for More Details.

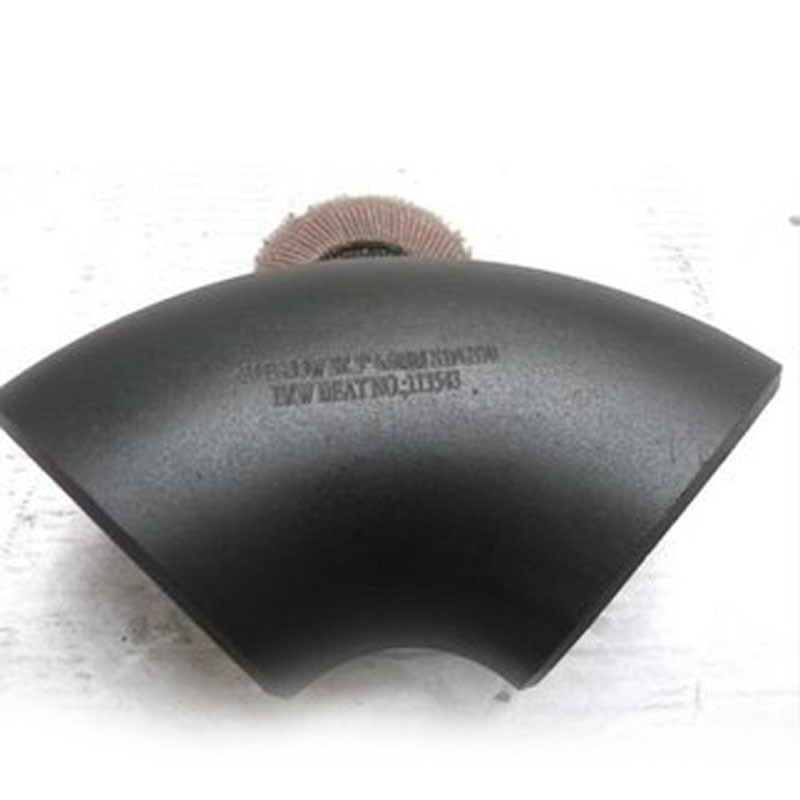

1.Our elbow products series mainly including carbon steel elbows,high wear resistant elbows,and other material upon your request.
2.A wide range of specifications for you.OEM service available .
3.quality certification of ISO 9001:2008
Packaging & Delivery
Packaging Details
wooden case or pallet , 1.1*1.1m case can put 1.5ton goods
Delivery Time
15 days Since the orders
ASTM B16.9 duplex ss pipe fittings(ELBOW.TEE.REDUCER)
Type:

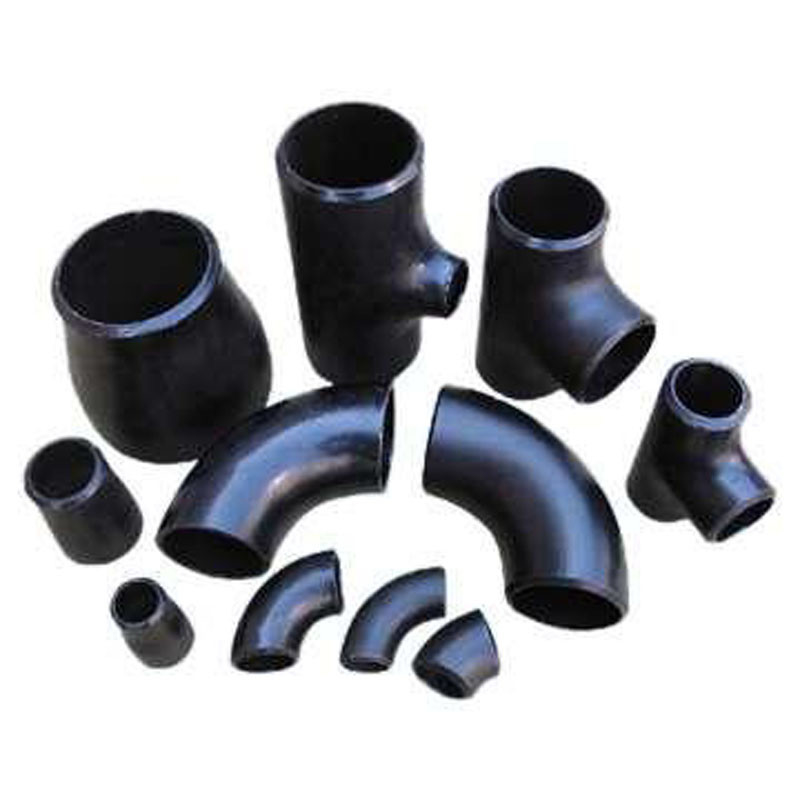

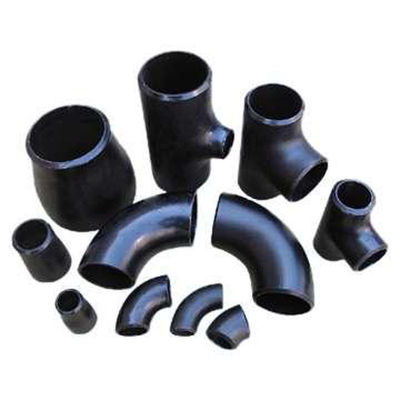

a). Forged Fitting(Socket Weld & Threaded): Tee, Elbow, Reducer, Cap, Coupling/Socket, Plug, Nipple and so on
b). Butt Welded Fitting: Tee, Elbow, Reducer, Cap, Coupling/Socket, Plug, Nipple and so on
Material: a). Carbon Steel: ASTM A234 WPB; A429; A860 and so on
b). Stainless Steel: ASTM A403 WP304, 316 and so on.
c). Alloy Steel: ASTM A234 WP1, 5, 9 and so on
Standard: ANSI/ASTM B16.9, ANSI/ASTM B16.11
To control and guarantee products qualit .We will test products in each process of manufactuing
A Raw material inspection:
dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw material's quality assurance certificate check
B Semi-finished goods inspection:
dimension and tolerance check, physical and chemical inspection, leakage magnetism and ultrasonic inspection
C Finished goods inspection:
dimension and tolerance, appperance quality check and mechanical properties testing
D Inspection before ex-factory:
We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.
