| Place of Origin: | Shanghai, China (Mainland) |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO9001:2008 |
| Model Number: | TOBO536478 |
| Minimum Order Quantity: | 1meter |
| Price: | Negotation |
| Packaging Details: | Wooden case or as per customer's requests. |
| Delivery Time: | 7~17days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Meter/Meters per Month |

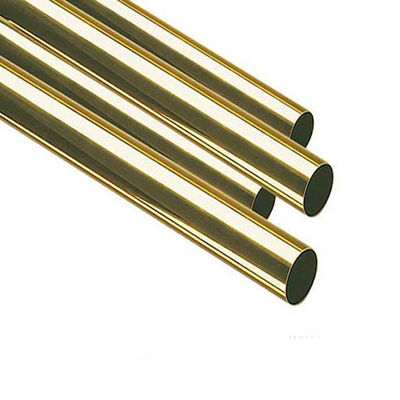

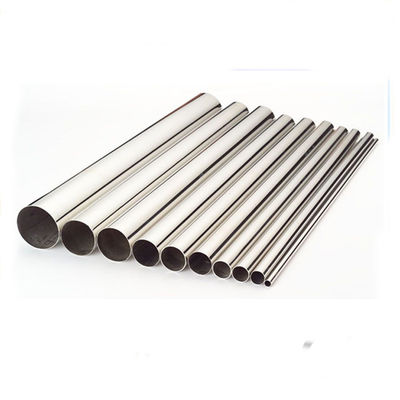

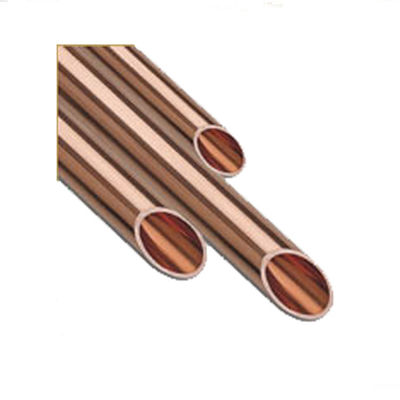

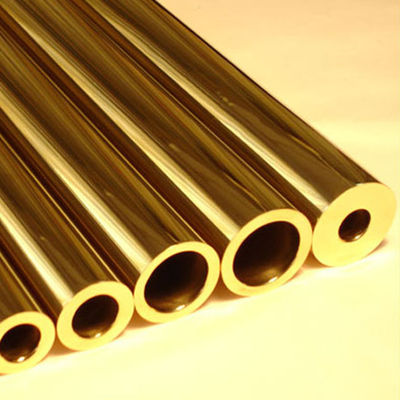

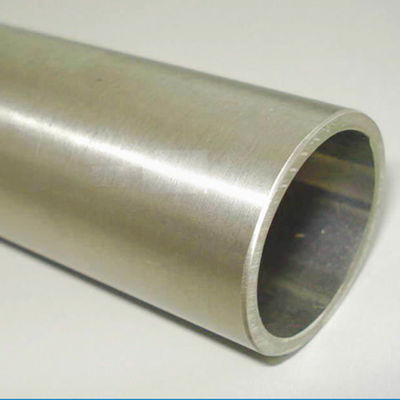

| Product Name: | Monel K500 Seamless Copper Nickel CuNi C70600 90/10 Pipe | Application: | Chemical Fertilizer Pipe, Oil,condenser,air Cooler,heat Exchanger Etc. |
|---|---|---|---|
| Material: | Copper Nickel | Keyword: | CuNi 90/10 Pipe |
| Special Pipe: | Copper Nickel Pipe | Alloy Or Not: | Is Alloy |
| Shape: | Round Shape | Certificate: | ISO9001:2008 |
| Highlight: | copper nickel pipe,copper nickel tubing |
||
Specification:
CUNI is an alloy of copper that contains nickel and strengthening elements, such as iron and manganese. Despite its high copper content, cupronickel is silver in colour.
Due to the specific properties of nickel and copper alloys, they are applied in various domains of industry e.g. mint industry, armaments industry, desalination industry, marine engineering, extensively used in the chemical, petrochemical and electrical industries.
Cupronickel is highly resistant to corrosion in seawater because its electrode potential is adjusted to be neutral with regard to seawater. For this reason, it is used for piping, heat exchangers and condensers in seawater systems, marine hardware, and sometimes for the propellers, crankshafts and hulls of premiumtugboats, fishing boats and other working boats.
|
Product
|
Copper-Nickel Pipe,Copper-Nickel Tube.
|
||
|
Surface-mount
|
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
|
||
|
Thickness
|
0.5-30mm
|
||
|
O.D
|
1-300mm
|
||
|
Length
|
1m,2m,3m,6m,or as required
|
||
|
Hardness
|
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc.
|
||
|
Shape
|
Round,Square,Rectangular.
|
||
|
Package
|
Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box .
|
||
|
|
Widely used in shipbuilding.
|
||
|
Precision instruments, Medical instruments.
|
|||
|
Power industry,Electric conduction.
|
|||
|
Petroleum, chemical, construction.
|
|||
|
General pipes connecting projects etc.
|
|||
|
Wear-Resistant,Corrosion resistance.
|
|||
|
Copper Pipe for Transportation System of water, gas and oil.
|
|||
|
Container Size
|
20Gp - 2.352(width) *2.385 ( Height ) * 5.90 ( Inside length ) Meter
|
||
|
40Gp - 2.352(width) *2.385 ( Height ) * 11.8 ( Inside length ) Meter
|
|||
|
40HQ - 2.352(width) *2.69 ( Width ) * 5.90 ( Inside length ) Meter
|
|||
|
|
Eddy Current Test, Hydrostatic Test, UT,Penetrant Test,Air underwater pressure Test,
PMI Test, Spectro Test,Intergranular Corrosion Test,Sharpy Impact Test,Hardness Test, Tension Test (Elongation,Yield Strength,Tensile Strength),Flarring Test etc. |
||
|
Technique
|
Cold Finished (Cold Drawing and Cold Rolling)
|
||
|
Ends
|
PE/Plain Ends, BE/Beveled Ends
|
||
Application:
Copper nickel pipe is used for a variety of industries; Including marine environments, power generation, offshore, oil & gas and defence sectors. Drawn copper nickel tube combines cold and hot working properties, highest degree of seawater corrosion and erosion resistance and great strength. Typical users are distillation and desalination plants and marine coolers and heat exchangers.
Applied vacuum melting technology, our tubes are of superior quality: Stable chemical composition, precise dimensions, and clean, smooth and bright inner and outer surface. Good mechanical properties - free from defects such as blowholes, cracks, pin hole leaks etc.
* Good corrosion resistance, especially in sea water;
* Suitable for high temperature service;
* Applicable for condenser for ship, heat and water supply, chemical industry, desalinator etc.
* Copper Alloy UNS Nos. C70600 and C71500 are seamless Copper Nickel Tubes of standard specifications for Water Desalting Plants.
|
|
DIN 17664
2.0872 |
DIN 86019
2.1972 |
BS 2871
CN 102 |
EEMUA
144-1987 UNS C7060x |
MIL-T-16420K
ASTM B 466 C 70600 |
JIS H 3300
C 7060T Cu+Ni+Fe |
|
Cu%
Ni% Fe% Mn% C % Pb% S % P% Zn% Other imp. |
rem.
9.0 - 11.0 1.0 - 2.0 0.5 - 1.0 max. 0.05 max. 0.03 max. 0.02 max. 0.02 max. 0.50 max. 0.30 |
rem.
9.0 - 11.0 1.5 - 1.8 0.5 - 1.0 max. 0.05 max. 0.01 max. 0.005 max. 0.02 max. 0.05 max. 0.20 |
rem.
10.0 - 11.0 1.0 - 2.0 0.5 - 1.0 max. 0.05 max. 0.01 max. 0.05 - - max. 0.30 |
rem.
10.0 - 11.0 1.5 - 2.0 0.5 - 1.0 max. 0.05 max. 0.01 max. 0.02 max. 0.02 max. 0.20 max. 0.30 |
rem.
9.0 - 11.0 1.0 - 1.8 max. 1.00 max. 0.05 max. 0.02 max. 0.02 max. 0.02 max. 0.50 - |
rem.
9.0 - 11.0 1.0 - 1.8 0.2 - 1.0 - max. 0.05 - - max. 0.50 Cu+Ni+Fe+Mn : min 99.5% |
|
Delivery Detail:
|
15days
|
||
|
Packaging Details:
|
Wooden case or as per customer's requests.
|
||
