| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | TOBO092 |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Packaging Details: | Regular shipping packaging or depends on customer's requirement |
| Delivery Time: | 15 work days |
| Supply Ability: | 100000PCS/MONTH |
| Features: | Excellent Corrosion Resistance | Product Name: | Steel Pipe |
|---|---|---|---|
| Model Number: | BS 3076 NA13 | Material: | ASTM A164 |
| Size: | 12'' | Length: | 6-12m |
| Technic: | Seamless | Type: | Nickel Alloy Pipe |
| Highlight: | Thin Wall Steel Pipe,Alloy Steel Seamless Pipe |
||

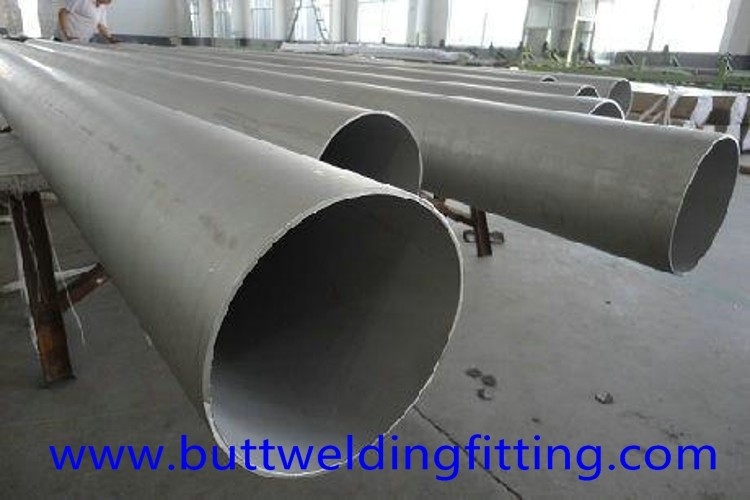

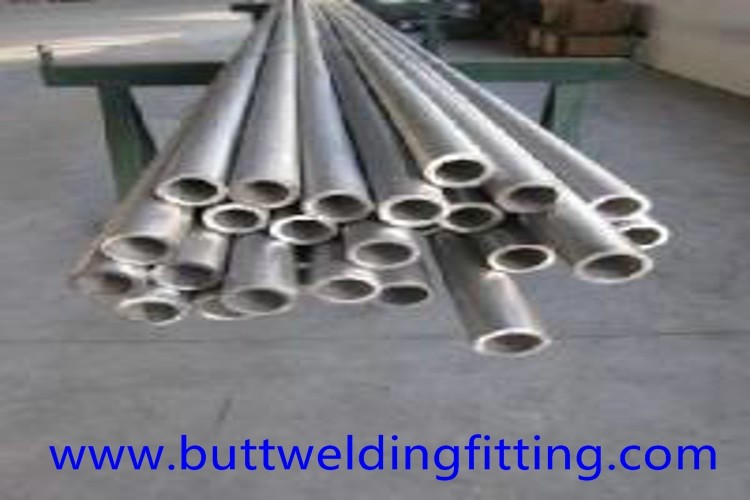

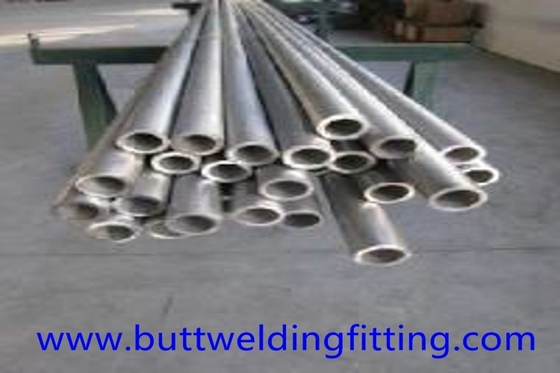

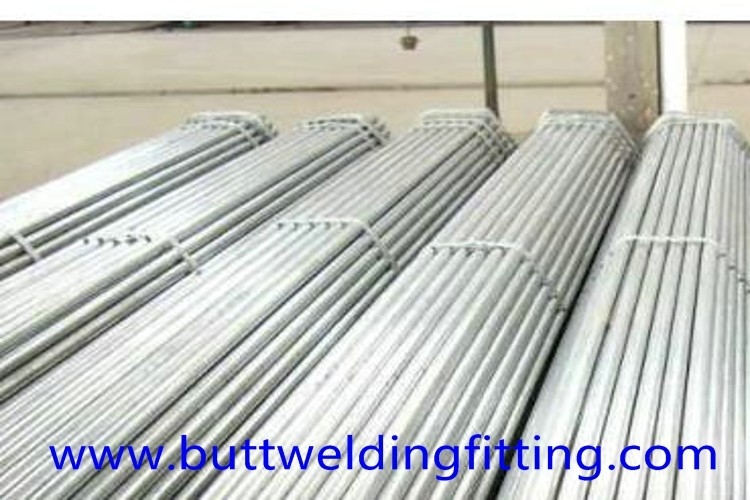

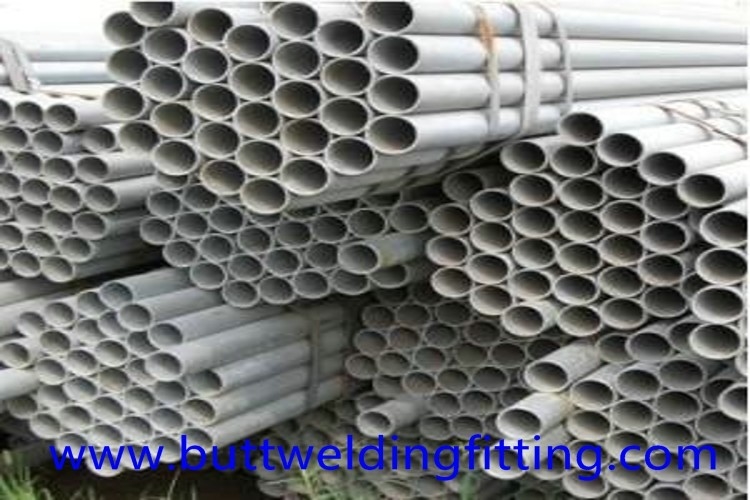

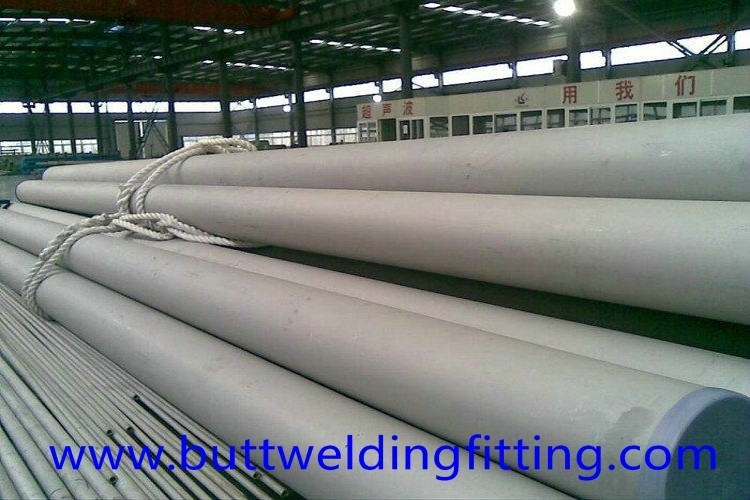

BS 3076 NA13 ASTM A164 Nickel alloy pipe 12'' Seamless Steel Pipe 6-12m
Specifications
Nickel Alloy Pipe
Alloy 400 possesses excellent corrosion resistance to many reducing media. It can be used in contact with fluorine, hydrofluoric acid, hydrogen fluoride or their derivatives – its resistance to hydrofluoric acid has been demonstrated in all concentrations up to the boiling point. It is also resistant to many forms of sulfuric and hydrochloric acids under reducing conditions and it also performs well in seawater. Alloy 400 is resistant to stress corrosion cracking and pitting in most fresh and industrial waters. It is therefore widely used in marine engineering, chemical and hydrocarbon processing equipment, valves, pumps, shafts, fittings, fasteners, and heat exchangers.
| Cr | Ni | Mo | Co | Nb (+Ta) | Ti | V | W | Cu | C | Mn | N | Si | P | S | Fe | Al | |
| Min | 63.00 | 28.00 | |||||||||||||||
| Max | 34.00 | 0.30 | 2.00 | 0.50 | 0.024 | 2.50 |
|
Product Name
|
Nickel Alloy Pipe
|
|
Material
|
Alloy400
|
|
Standard
|
ASTM, DIN,JIS,GB,EN
|
|
Grade
|
UNS NO4400
|
|
Brade
|
TOBO
|
|
Size
|
O.D 6-219mm; W.T:1-30mm
|
|
Chemical composition
|
Ni: 50~55% ; Cr:17~21% ; Fe: balance;Mo:2.8~3.3% ; Nb: 4.75~5.5% ; Co: ≤1.0% ; C≤0.08% ; Mn≤0.35% ; Si≤ 0.35% ; Cu≤0.3% ; Al: 0.2~0.8% ; Ti: 0.65~1.15% ; P≤0.015% ;
|
|
Density
|
8.24 g/cm3
|
|
Melting range
|
1260~1340℃
|
|
Characteristic as below
|
1.workability
2.High tensile strength,endurance strength,creep strength and rupture strength at 700℃. 3.High inoxidability at1000℃. 4.Steady mechanical performance in the low temperature. 5.Good welding performance. |
|
Metallurgical structure
|
718 alloy is Austenitic structure, precipitation hardening generate "γ" made it excellent mechanical performance. G rain boundary generate "δ" made it the best plasticity in the heat treatment.
|
|
Corrosion resistance
|
718 alloy with extremely resistance to stress corrosion cracking and pitting ability in high temperature or low temperature environments, especially the inoxidability in the high temperature.
|
|
Application field
|
The elevated temperature strength, excellent corrosion resistance and workability at 700℃ properties made it use in a wide range of high requirement environments.
1.Steam turbine 2.Liquid-fuel rocket 3.Cryogenic engineering 4.Acid environment 5.Nuclear engineering |
1.We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.
2.We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.
3.In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on.
1.Packing Details : Regular shipping packaging or depends on customer's requirement
2.Delivery Details : 7-15 days after the PO
