| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Slip On flange |
| Minimum Order Quantity: | 1pc |
| Price: | USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8500 pcs per month |
| Size: | 1/2"-48" | Pressure: | 150#-2500# |
|---|---|---|---|
| Type: | SO Flange | Standard: | ASME B16.5 |
| DN: | 15-1500 | Material: | A350 |
| Highlight: | forgings flanges and fittings,butt weld flanges |
||

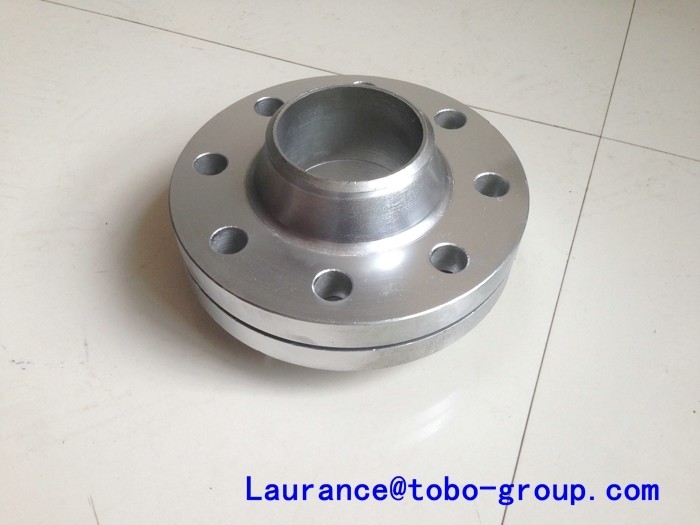

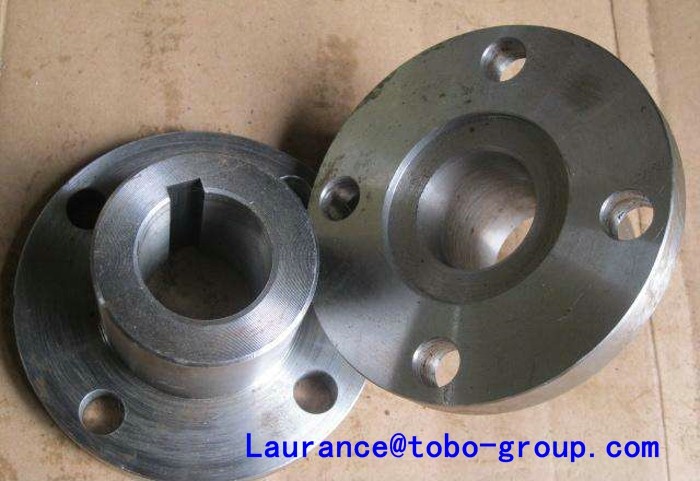

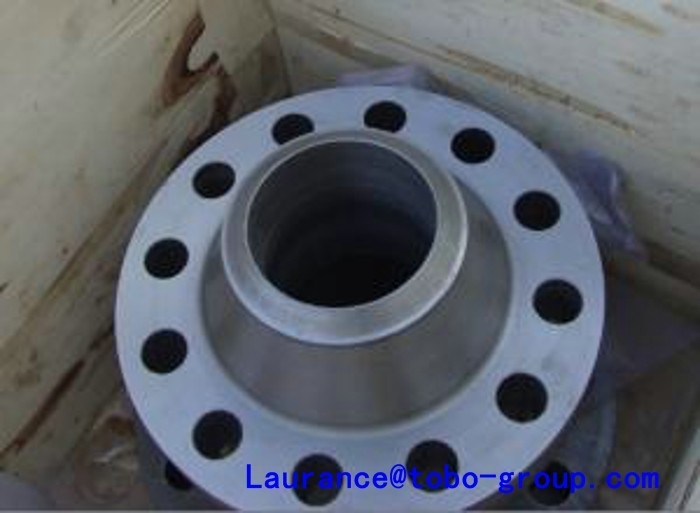

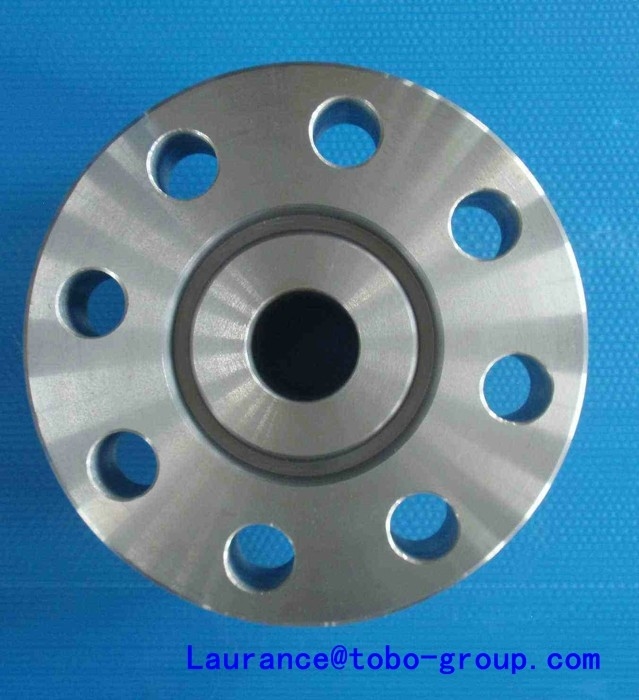

Forged Steel Flanges ASTM A350 LF2Flanges ASME B16.5 Class 150-1500# 1/2"-48"
| Brand Name: | TOBO |
| Model Number: | ASTM A350 LF2 |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Place of Origin: | China |
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 3,0000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| ASTM A350 /ASME SA350 | Standard Specification for Carbon and Low-Alloy Steel Forgings, Requiring Notch Toughness Testing for Piping Components | ||||
| LF1 | LF2 | LF3 | LF5 | LF6 | |
| LF9 | LF787 | ||||
| Product Form | |||||
| ASME B16.5 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| ASME B16.47 | Size:26"-48" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| ASME B16.48 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| MSS SP-44 | Size:12"-60" Wall thickness:SCH5S-SCHXXS Class:150-1500# | ||||
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material |
Inconel Alloy Steel Flange |
| Carbon steel | ASTM A 105 |
| Allloy steel flange |
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
| Stainless Steel flange |
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
| Nickel Alloys Flanges | Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
| Copper Alloys Flange |
ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718 |
| Inconel Alloy Steel Flange |
ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
· Carbon steel
· ASTM A234, A420, A105, A106, A350 ,A860, A694 ,A266, API 5L ,etc
· Stainless steel
· ASTM A403 WP304,304L,316,316L,321;
· ASTM A182 F304,304L,316,316L,321,904L,347, etc
· Alloy steel
· ASTM A234 WP5,WP9,WP11,WP12,WP22;
· ASTM A335 P5,P9,P11,P22,P91,P12;
· ASTM A182 F5,F9,F11,F12,F22,F91;
· Duplex steel
· ASTM A182 F51/ 2205/UNS S31803,F53/ 2507/UNS S32750,
· F55/UNS S32760,F904L/ 8904,F60/UNS S32205, etc
· Nickel alloy steel
· Alloy 200/Nickel 200/uns s2200,alloy400/monel 400/uns s4400,alloy 600/inconel 600/uns s6600, alloy 625/inconel 625/uns s6625, alloy 800/incoloy 800/uns s8800, alloy 825/ incoloy 825/uns s8825,alloy c/ hastelloy c
·
· Size: 1/2''~72''
· Wall thickness: Sch5~Sch160XXS
· Manufacturing process:Push,Press,Forge,Cast,etc.
· Shipment: FOB Tianjin/Shanghai,CFR,CIF,etc
· Packing: Wooden cases, pallets, nylon bags or according to the customers' requirements
