TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO 9001:2008 |
| Model Number: | TOBO-08 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 1 USD |
| Packaging Details: | In plywood cases and pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1100000 Pcs per month |
| Product Name: | Tobo Butt Welding 180D Elbow | Material: | 304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800 |
|---|---|---|---|
| Brand: | TOBO | Technics: | Casting |
| Degree: | 90D 45D 180D | Standard: | DIN2605,DIN2615,DIN2616,DIN2633 |
| Thickness: | SCH10S, SCH40S, STD | ||
| Highlight: | butt weld tube fittings,industrial pipe fittings |
||

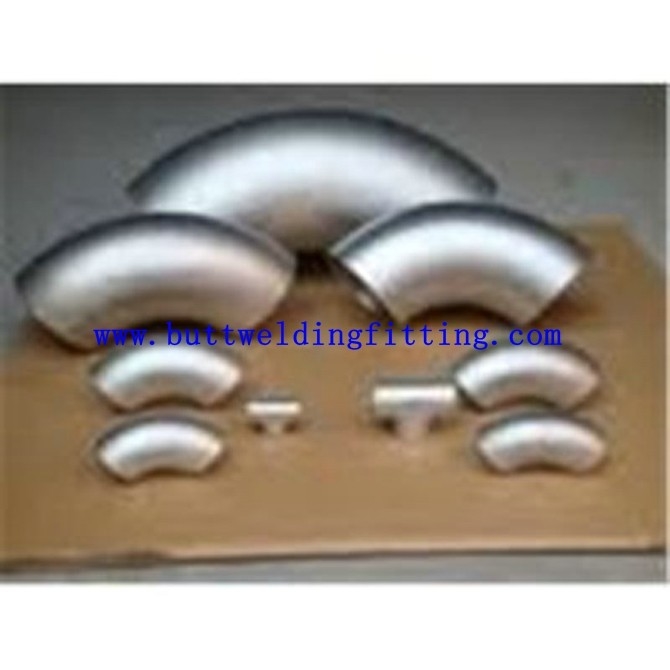

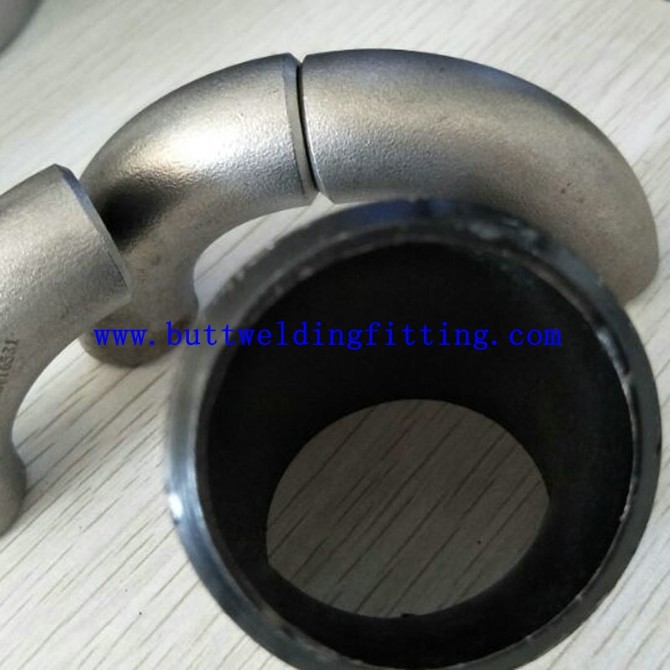

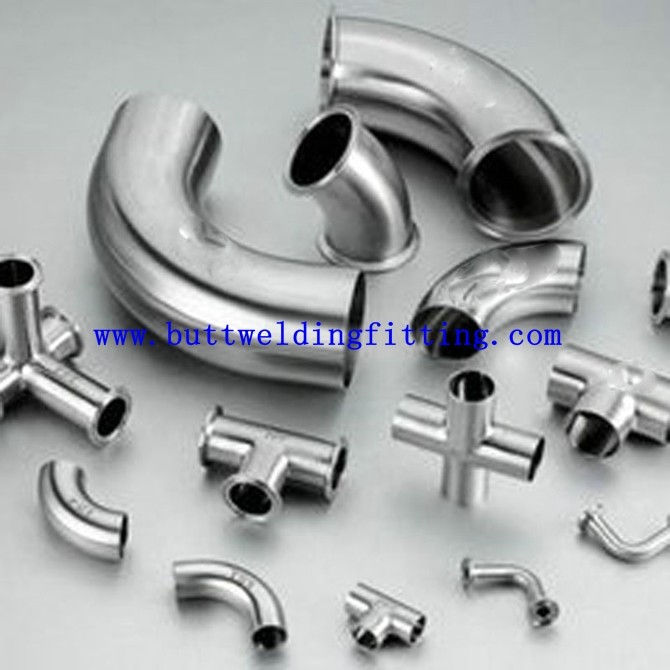

TOBOGROUP Steel Factory 24 Inch Stainless Steel Pipe Fittings ,SS 90D LR Elbow
| Product Details | |
| Product name | Stainless steel pipe fitting ELBOW |
| Brand name | TOBOGROUP |
| Standard | DIN2605,DIN2615,DIN2616,DIN2633 |
| Material | 304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800 |
| Surface | Pickling and bright |
| Certificate | ISO9001, CE, SGS, TUV, DNV, BV, LR, GL, NK, RMRS |
| Packing | In wooden cases |
| Shipment | By sea, by air, by express |
| Chemical Composition(%) | |||||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - | ||||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 | ||
INCONEL | ≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | ||
MONEL | ≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - | ≤34.0 | ||
INCONEL | ≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 | Ti≤0.6 |
| Standard | Material | ASTM A234, ASTM A420, ASTM A860, ASTM A403, etc |
| Dimension | ASME B16.9, etc | |
| Material | Carbon Steel | A234 WPB,A420 WPL3/WPL6, A860 WPHY42-70, etc |
| Alloy Steel | A234 WP11/WP22/91, etc | |
| Stainless Steel | 304 ,304L,316 ,321, 316L, 347H etc | |
| Minimum Order Quantity | 10 Pieces | |
| Elbow Type | LR,SR | |
| Elbow Degree | 22.5,45,90,180,etc | |
| Outside Diameter | 1/2” – 24” (SMLS/SEAMLESS) | |
| 26” – 100” (WELD) | ||
| Wall Thickness | Butt Welded : SCH10-SCH160, STD, XS, XXS | |
| Processing technic | BW TYPE SMLS = Seamless (Size 1/2” – 24”) | |
| Welded = Seam Welded with 100% X – Ray Test | ||
Other Material and Sizes Are Available If You Are Interested to Buy Pipe Fitting so Please Feel Free and Send Inquiry to Us for More Details.
1.Our elbow products series mainly including carbon steel elbows,high wear resistant elbows,and other material upon your request.
2.A wide range of specifications for you.OEM service available .
3.quality certification of ISO 9001:2008
| Name | Material | Specification | Weight | Common life time | Life tine for two end parts | Max work |
| Normal bend | ZG40Mn2 | DN125R27590° | 16kgs | 6000-8000m³ | 1000-3000m³ | 126 bar |
| Wear-resistant bend | Mn13-4 | DN125R27590° | 16.5kgs | 20000-25000m³ | 2000-7000m³ | 132 bar |
| Twin wall bend | Cr20NiCu1Mo+G20 | DN125R27590° | 15kgs | 60000-80000m³ | 20000-30000m³ | 91 bar |
| Twin wall bend | GX350+G20 | DN125R27590° | 15kgs | 80000-150000m³ | 40000-50000m³ | 98 bar |
Packaging & Delivery
Packaging Details
wooden case or pallet , 1.1*1.1m case can put 1.5ton goods
Delivery Time
15 days Since the orders
Our advantages:
1.product profile:we have our own factory, quality department, so we can give you good quality.
2. wear resisdtant. the elbow lifetime: 18000-20000 cube.
3. the surface treatment: baking paint. two time bend .our have more beautiful product.
4. the size compete, we have all the size concrete pump casting elbow. used for boom pump Putzmeister,Sany,Schwing , and so on.
To control and guarantee products qualit .We will test products in each process of manufactuing
A Raw material inspection:
dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw material's quality assurance certificate check
B Semi-finished goods inspection:
dimension and tolerance check, physical and chemical inspection, leakage magnetism and ultrasonic inspection
C Finished goods inspection:
dimension and tolerance, appperance quality check and mechanical properties testing
D Inspection before ex-factory:
We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.
