| Place of Origin: | China |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO 9001:2008 |
| Model Number: | TOBO-938 |
| Minimum Order Quantity: | 1 pcs |
| Price: | 1 USD |
| Packaging Details: | In plywood cases and pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1100000 Pcs per month |
| Product Name: | Tobo Butt Welding 180D Elbow | Material: | Carbon Steel |
|---|---|---|---|
| Brand: | TOBO | Type: | BW;SW;LR;SR |
| Degree: | 45°；90°，180° | Standard: | ASME/ANSI B16.9;ANSI /ASME B 16.11 |
| Thickness: | SCH40; | ||
| Highlight: | butt weld tube fittings,industrial pipe fittings |
||

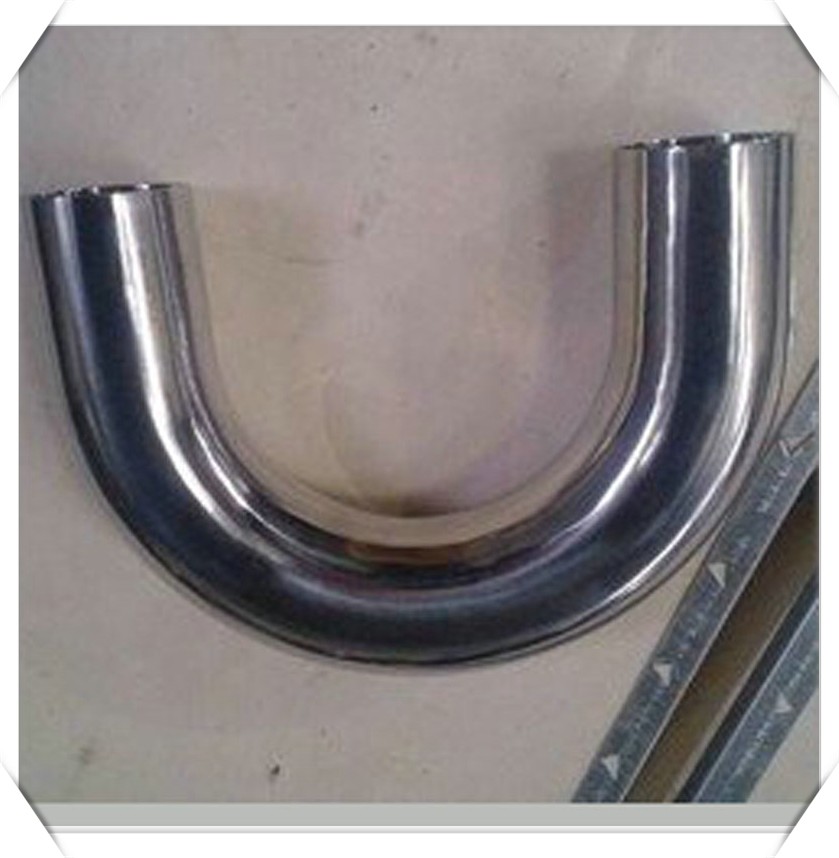

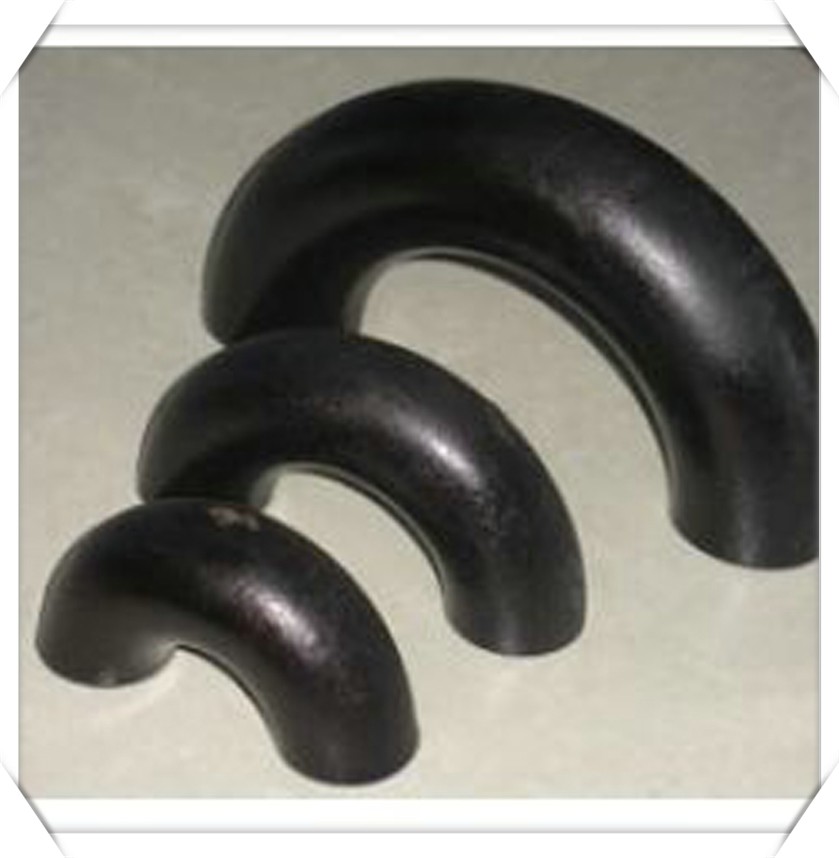

Carbon Steel Butt Weld Fittings Pipe Elbow Sch40 Lr 180 Degree Pipe Elbow 8 Inch
| Product Name | carbon steel pipe fittings elbow sch40 LR 180 degree pipe elbow 8 inch |
| Material | Stainless steel,carbon steel ,alloy steel |
| Wall thickness |
1.SCH; 20,STD;SCH40;SCH80;SCH160;XS;XXS 2.According to the customer requirement |
| Standard | ASME/ANSI B16.9;ANSI /ASME B 16.11 |
| Type | BW;SW;LR;SR |
| Degree |
1. 45°；90°,180° 2.According to the customer requirement
|
| Brand | TOBO |
| Coat |
1.Black paintd 2.Galvanized 3.According to the customer requirement |
| Certificate | 1. Environmental Management System Certificate 2. The People's Republic of China Special Equipment Certification 3. Quality Systerm Certificate 4. API 5. ISO |
| Packing |
1.In plywood cases and pallets 2.According to the customer requirement |
| Used | Fluid flow or other |
Quick detail
Packing & Delivery
Packing Details : In plywood cases and pallts or according to the customer requirement
Delivery Details : 30 days to FOB Tianjin port ,as per customer request
Specification
ASME B16.9 BUTTWELD 180° LONG RADIUS ELBOW
TOBO-GROUP is a dynamic group, which was established over THREE decade ago to cater to growing demands of ASME B16.9 Buttweld 180° Long Radius Elbow standards in Elbow, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Buttweld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.
We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.9 Buttweld 180° Long Radius Elbow to.
SPECIFICATIONS OF ASME B16.9 BUTTWELD 180° LONG RADIUS ELBOW
Stainless Steel ASME B16.9 Buttweld 180° Long Radius Elbow | Carbon Steel ASME B16.9 Buttweld 180° Long Radius Elbow |Nickel Alloys ASME B16.9 Buttweld 180° Long Radius Elbow
Sizes: 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” )
Standards: ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Schedule: Sch 5 TO Sch XXS.
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Type: Buttweld (BW)
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIMENSIONS OF ASME B16.9
BUTTWELD 180° LONG RADIUS ELBOW
|
NPS |
O.D. D |
180° Long Radius |
|
|
Center to Center |
Back to Face |
||
|
1/2 |
21.3 |
76 |
48 |
|
3/4 |
26.7 |
76 |
51 |
|
1 |
33.4 |
76 |
56 |
|
1¼ |
42.2 |
95 |
70 |
|
1½ |
48.3 |
114 |
83 |
|
2 |
60.3 |
152 |
106 |
|
2½ |
73 |
190 |
132 |
|
3 |
88.9 |
229 |
159 |
|
3½ |
101.6 |
267 |
184 |
|
4 |
114.3 |
305 |
210 |
|
5 |
141.3 |
381 |
262 |
|
6 |
168.3 |
457 |
313 |
|
8 |
219.1 |
610 |
414 |
|
10 |
273 |
762 |
518 |
|
12 |
323.8 |
914 |
619 |
|
14 |
355.6 |
1067 |
711 |
|
16 |
406.4 |
1219 |
813 |
|
18 |
457 |
1372 |
914 |
|
20 |
508 |
1524 |
1016 |
|
22 |
559 |
1676 |
1118 |
|
24 |
610 |
1829 |
1219 |
Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the Alibaba certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
